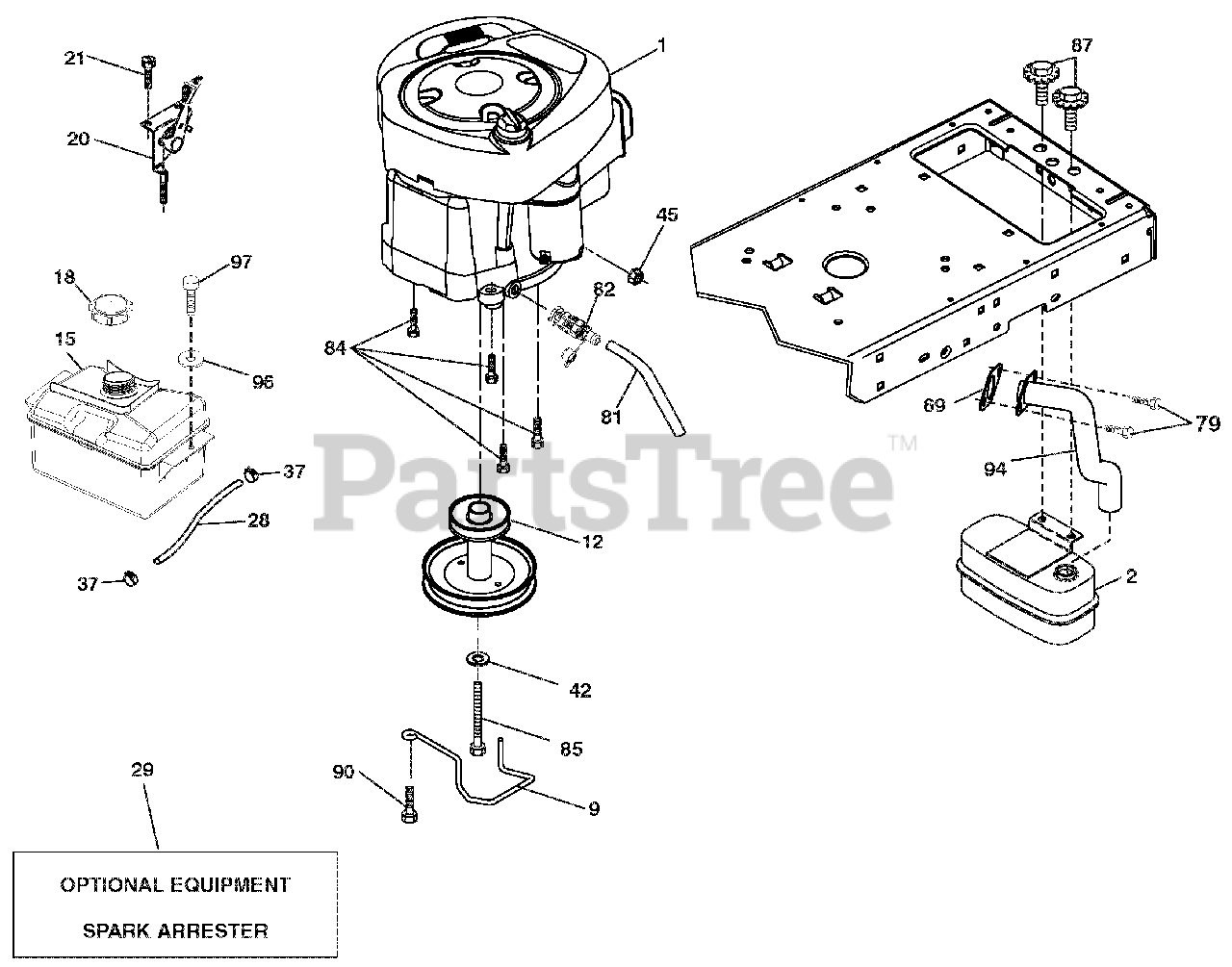

936001 (960460031-00) - Ariens 46" Precision Hydro Tractor Engine Parts Diagram

46" Precision Hydro Tractor

Engine Parts Diagram

  • Title

1

ENGINE BRIGGS MODEL NO. 331777-1523-G5(442174) (ORDER PARTS FROM ENGINE MANUFACTURER)

Note: (442174) (ORDER PARTS FROM ENGINE MANUFACTURER)

$

$

Not available

2

Ariens 21546269

MUFFLER.SINGLE.CYL.KOHL.COURAG

$45.99

$

In Stock, only 2 left!

0

9

Ariens 21546327

KEEPER.BELT.ENGINE.4.25"NSTG
(Superseded to 21548399)

$

$

Not available

12

Ariens 21547006

PULLEY ENGINE

$

$

Not available

15

Ariens 21546624

TANK.FUEL.FRT.N/CAP.1.5GAL.DAP
(Superseded to 21548283)

$129.99

$

Usually ships in 4-12 days

0

18

Ariens 21547418

CAP FUEL

$26.99

$

Usually ships in 4-12 days

0

20

Ariens 21547727

CONTROL THROTTLE/CHOKE

$37.99

$

Usually ships in 4-12 days

0

21

Ariens 21546675

Screw

$

$

Not available

28

Ariens 21546571

LINE.FUEL.22"FRONT.EMIS.CA.LP

$14.99

$

Usually ships in 4-12 days

0

29

Ariens 21546090

KIT.SPARK ARRESTOR(392390 B&S)

Note: (392390 B&S)

$

$

Not available

37

Ariens 21546069

CLAMP.HOSE.BLK.

$7.49

$

Usually ships in 4-12 days

0

42

Ariens 21546004

WASHER.LOCK.HVY HLCL.SPR.7/16
(Superseded to 21547501)

$3.49

$

Usually ships in 4-12 days

0

45

Ariens 21546779

Nut, Keps Hex 1/4-20 unc

$2.99

$

Usually ships in 4-12 days

0

69

Ariens 21547111

Gasket Eng 1 313 Id Tin Plated
(Superseded to 21547224)

$5.49

$

In Stock, Qty 20+

0

79

Ariens 21546293

SCREW.SOCKET HD.5/16-18 X .75
(Superseded to 05909000)

$2.49

$

In Stock, only 2 left!

0

81

Ariens 21546117

TUBE.DRAIN.OIL.EASY

$6.99

$

In Stock, only 4 left!

0

82

Ariens 21547348

VALVE OIL DRAIN

$18.99

$

In Stock, only 4 left!

0

84

Ariens 21547225

Screw 3/8-16 x <
(Superseded to 21547081)

$10.99

$

In Stock, Qty 7

0

85

Ariens 21546191

BOLT.HEX.7/16-20X4XGR5-1.5THR.

$

$

Not available

87

Ariens 21546190

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

$7.49

$

In Stock, Qty 5

0

90

Ariens 21546182

SCREW.3/8-16X1.SMGML.TAP/R.BLK

$7.49

$

In Stock, only 3 left!

0

94

Ariens 21548501

EXHAUST TUBE

$58.99

$

In Stock, only 1 left!

0

96

Ariens 21546277

WASHER.9/32 X 7/8 X 16GA.

$

$

Not available

97

Ariens 21546207

SCREW.HEXWSH.THDROL.1/4-20X3/4
(Superseded to 21548385)

$4.99

$

In Stock, only 1 left!

0
