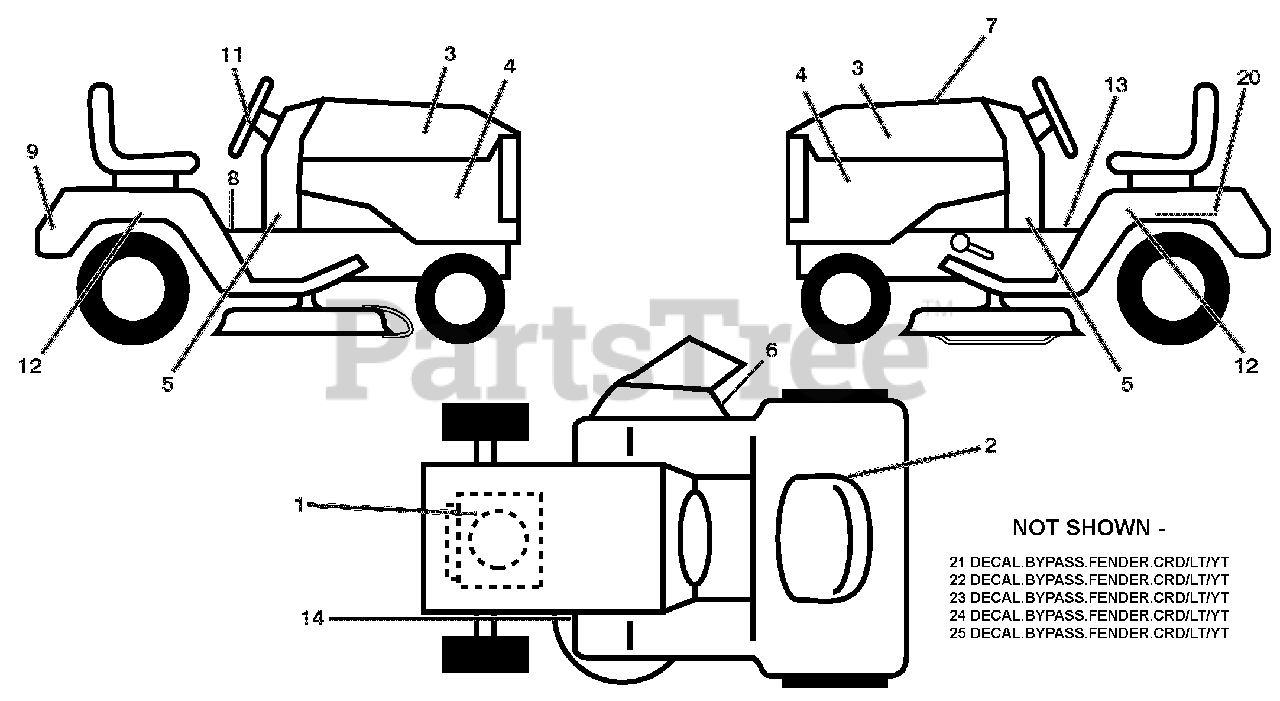

936001 (960460031-00) - Ariens 46" Precision Hydro Tractor Decals Parts Diagram

46" Precision Hydro Tractor

Decals Parts Diagram

  • Title

1

Ariens 21547594

DECAL ENGINE H.P.

$10.99

$

In Stock, only 1 left!

0

2

Ariens 21547253

Decal Fender Service

$

$

Not available

3

Ariens 21547752

DECAL.HOOD.LH/RH.

$

$

Not available

4

Ariens 21547732

DECAL.SDPNL.PWRDBY B&S.ARIENS

$

$

Not available

5

Ariens 21546691

DECAL.DASH.LWOWER.20HP.ARIENS

$

$

Not available

6

Ariens 21546186

DECAL.MOWER.WARN.KEEP HAND AWY
(Superseded to 21548132)

$

$

Not available

7

Ariens 21547748

DECAL.REPLACEMENT

$

$

Not available

8

Ariens 21547245

DECAL.FENDER.WARNING.ENG/FR.07
(Superseded to 21547009)

$

$

Not available

9

Ariens 21547668

DECAL.FENDER.REAR.ARIENS

$

$

Not available

11

Ariens 21547667

DECAL.WHEEL.STEER.ARIENS

$8.99

$

In Stock, only 1 left!

0

12

Ariens 21547670

DECAL.FENDER.SIDE.HYDRO.ARIENS

$

$

Not available

13

Ariens 21547918

DECAL.FENDER

$

$

Not available

14

Ariens 21546145

DECAL.V-BELT.SCH.42/46"MEC/ELE

$

$

Not available

20

Ariens 21546109

DECAL.BAT.DAN/POI P/L SYM.WPN

$

$

Not available

21

Ariens 21546177

DECAL.BYPASS.FENDER.CRD/LT/YT

Note: (NOT SHOWN)

$

$

Not available

22

Ariens 21547559

PAD FOOTREST LH TLT BLACK .428
(Superseded to 21546313)

Note: (NOT SHOWN)

$

$

Not available

23

Ariens 21547561

PAD FOOTREST
(Superseded to 21546314)

Note: (NOT SHOWN)

$

$

Not available

24

Ariens 21547750

MANUAL OPERATOR'S (ENG/FRE)

Note: (ENGLISH/FRENCH)(NOT SHOWN)

$

$

Not available

25

Ariens 21547751

MANUAL PARTS (ENGLISH)

Note: (ENGLISH)(NOT SHOWN)

$

$

Not available
