936 (990936) - Simplicity Roticul Tiller, 3hp Tine Assy & Gear Housing Parts Diagram

Roticul Tiller, 3hp

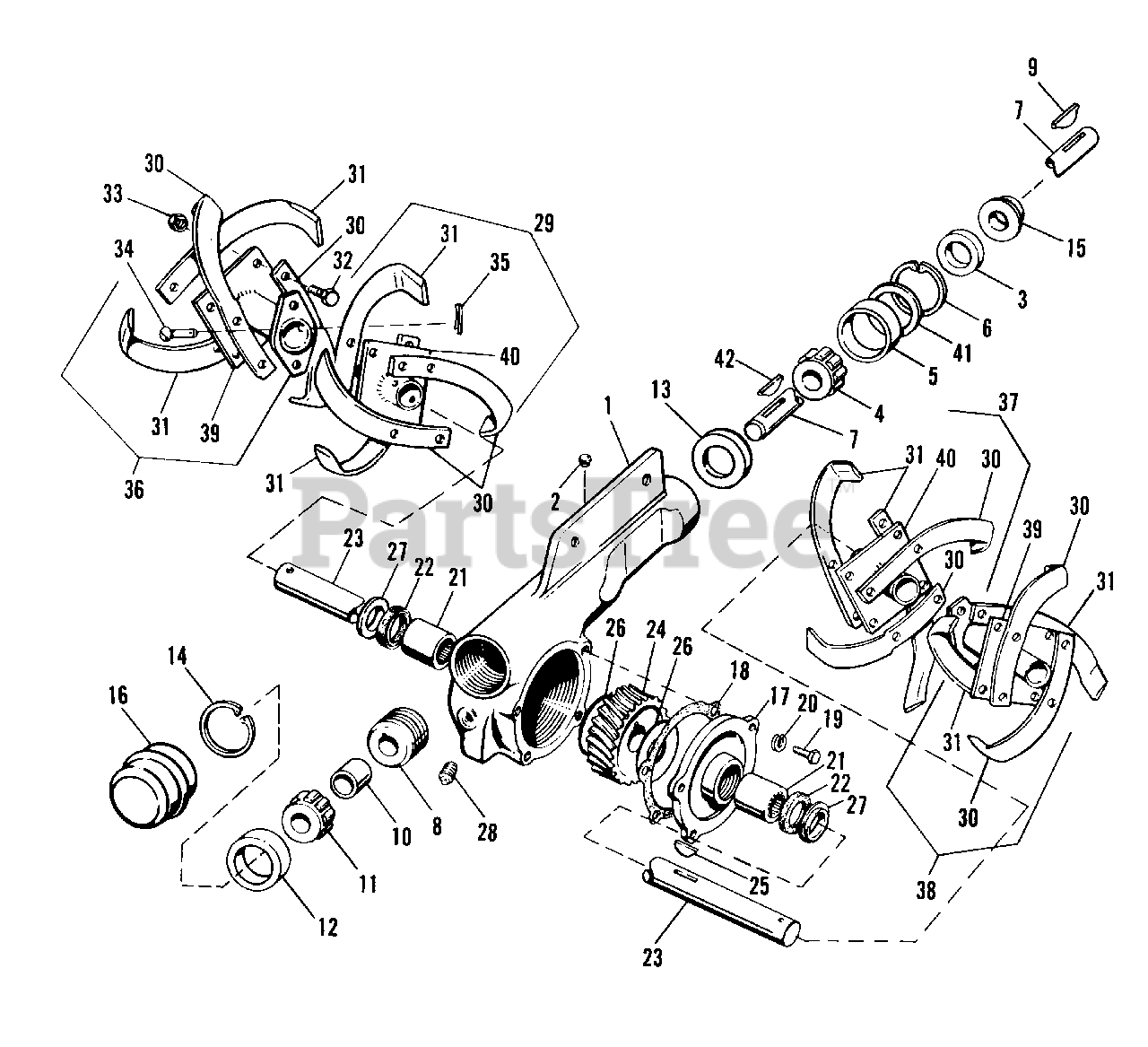

Tine Assy & Gear Housing Parts Diagram

  • Title

1

Simplicity 118392

WORM DRIVE HOUSING

$

$

Not available

2

Simplicity 2118462SM

PLUG, Vent

$

$

Not available

3

Simplicity 2118393SM

SEAL, Oil

$

$

Not available

4

Simplicity 2154486SM

BEARING, Roller

$36.99

$

In Stock, Qty 6

0

5

Simplicity 2154393SM

BEARING, Cup

$22.99

$

In Stock, only 3 left!

0

6

Simplicity 118396

RING, Snap

$

$

Not available

7

Simplicity 170888

SHAFT, Worm

Note: Used On Mfg. No. 990936 & 1600397 Only

$

$

Not available

7

Simplicity 103199

SHAFT, Worm

$

$

Not available

8

Simplicity 118492

WORM, R.H.

$

$

Not available

9

Simplicity 911171

KEY

$

$

Not available

10

Simplicity 118398

SPACER

$

$

Not available

11

Simplicity 2154486SM

BEARING, Roller

$36.99

$

In Stock, Qty 6

0

12

Simplicity 2154393SM

BEARING, Cup

$22.99

$

In Stock, only 3 left!

0

13

Simplicity 118399

CUP

$

$

Not available

14

Simplicity 118396

RING, Snap

$

$

Not available

15

Simplicity 118400

SHIELD

$

$

Not available

16

Simplicity 2154487SM

CUP
(Superseded to 2154487YP)

$9.99

$

In Stock, Qty 20+

0

17

Simplicity 118402

COVER

$

$

Not available

18

Simplicity 2118024SM

GASKET

$12.99

$

In Stock, only 3 left!

0

19

Simplicity 2821959

CAPSCREW, Hex, 1/4-20 x 5/8

$

$

Not available

20

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

21

Simplicity 2118020SM

BEARING, Needle

$31.99

$

Usually ships in 2-12 days

0

22

Simplicity 2118118SM

SEAL, Oil

$10.99

$

In Stock, Qty 20+

0

23

Simplicity 118021

SHAFT, Worm Gear

$

$

Not available

24

Simplicity 2118022SM

WORM GEAR, R.H.

$286.99

$

Usually ships in 2-12 days

0

25

Simplicity 2830246SM

KEY, Woodruff #91, 1-1/4 x 3/4
(Superseded to 704280)

$4.99

$

In Stock, Qty 9

0

26

Simplicity 2118315SM

WASHER, Thrust

$9.99

$

In Stock, Qty 5

0

27

Simplicity 2118403SM

SHIELD

$8.49

$

In Stock, only 2 left!

0

28

Simplicity 2801653

PLUG, Pipe

$

$

Not available

29

Simplicity 1609338

TINE ASSY, R.H. Inner

$

$

Not available

30

Simplicity 2118294

TINE BLADE, L.H.

$

$

Not available

30

Simplicity 1729271SM

TINE BLADE, L.H.

Note: Used On Mfg. No. 1600397 Only

$

$

Not available

31

Simplicity 2118295

TINE BLADE, R.H.

$

$

Not available

31

Simplicity 1729272SM

TINE BLADE, R.H.

Note: Used On Mfg. No. 1600397 Only

$28.99

$

Usually ships in 2-12 days

0

32

Simplicity 920488

CAPSCREW, Hex, 7/16-20 x 1-1/4

$

$

Not available

33

Simplicity 2828867

LOCKNUT, Hex, Full, 7/16-20

$

$

Not available

34

Simplicity 2118053SM

PIN
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

35

Simplicity 2818451

PIN, Cotter, 1/8 x 3/4

$

$

Not available

36

Simplicity 1609340

TINE ASSY, Outer, R.H.

$

$

Not available

37

Simplicity 1609337

TINE ASSY, Inner, L.H.

$

$

Not available

38

Simplicity 1609339

TINE ASSY, Outer, L.H.

$

$

Not available

39

Simplicity 118046

PLATE ASSY, Outer

$

$

Not available

39

Simplicity 1609334

PLATE ASSY, Outer

Note: Used On Mfg. No. 1600397 Only

$

$

Not available

40

Simplicity 118084

PLATE ASSY, Inner

$

$

Not available

40

Simplicity 1609332

PLATE ASSY, Inner

Note: Used On Mfg. No. 1600397 Only

$

$

Not available

41

Simplicity 170885

RING, Backing

Note: Used On Mfg. No. 990936 & 1600397 Only

$

$

Not available

41

Simplicity 171762

RING, Backing

Note: Used On Mfg. No. 990936 & 1600397 Only

$

$

Not available

42

Simplicity 118439

KEY

Note: Used On Mfg. No. 1600397 Only

$

$

Not available
