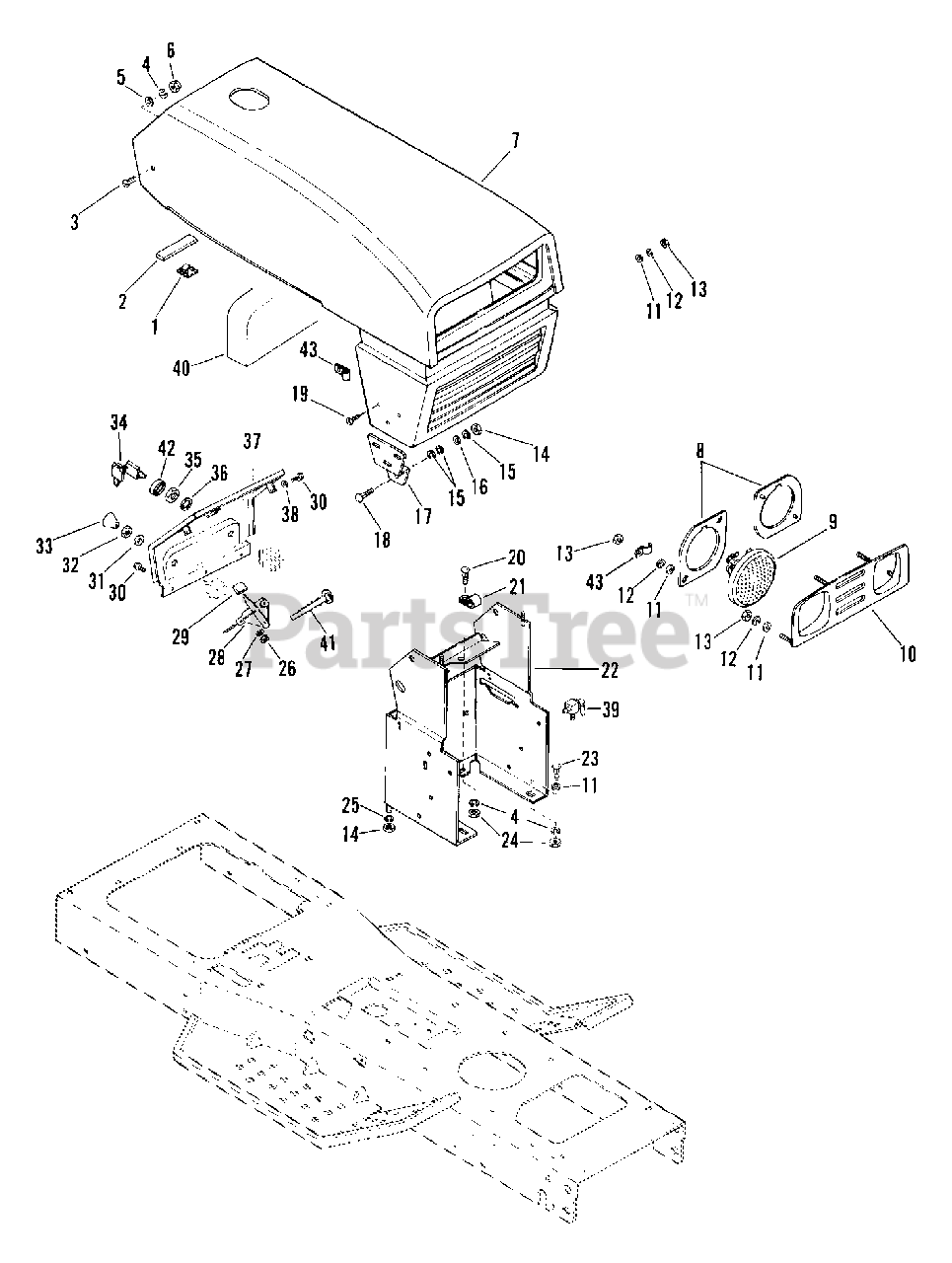

935026 (YT 1238) - Ariens Sierra 38" Yard Tractor, 12.5hp Kohler, Hydro (SN: 000101 & Above) Hood And Dash Parts Diagram

Sierra 38" Yard Tractor, 12.5hp Kohler, Hydro

Hood And Dash Parts Diagram

  • Title

1

Ariens 07510700

WIRE CLIP

$

$

Not available

2

Ariens 03076600

FOAM TAPE

$

$

Not available

3

Ariens 06104500

SCR-MCH .31-18X.50 SLTR PL

$

$

Not available

4

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

5

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 06509500

NUT-CROWN .312-18 PL
(Superseded to 06530800)

$5.99

$

Usually ships in 4-12 days

0

7

Ariens 03576800

HOOD & GRILL

$

$

Not available

8

Ariens 03115900

HEAD LIGHT RETAINER RING

$

$

Not available

9

Ariens 03114900

HEAD LIGHT

$20.99

$

Usually ships in 4-12 days

0

10

Ariens 02920600

HEADLIGHT INSERT

$

$

Not available

11

Ariens 06400700

WSHR-FL-STL.312X.734X.065PL
(Superseded to 06435800)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 06300200

WSHR-LK .250X.077 HVY PL
(Superseded to 06308000)

$

$

Not available

13

Ariens 06503200

NUT-HEX .250-20 PL
(Superseded to 06533200)

$0.99

$

In Stock, Qty 13

0

14

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

In Stock, Qty 20+

0

15

Ariens 06302100

WSHR-LK .375X.094 MED PL
(Superseded to 06308800)

$0.99

$

In Stock, Qty 20+

0

16

Ariens 06400800

WSHR-FL-STL .438X1.0X.083 PL
(Superseded to 06435900)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 02912200

HOOD HINGE

$

$

Not available

18

Ariens 06201300

BLT-RDHDSQSHNK .38-16X1.00 PL
(Superseded to 06212000)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 07008900

SCR .25-20X.75 TS PH PL
(Superseded to 05967300)

$

$

Not available

20

Ariens 05913500

BLT-HEX .31-18X.75 PL GR5
(Superseded to 05947000)

$1.49

$

In Stock, Qty 20+

0

21

Ariens 06909400

J-CLAMP

$3.49

$

In Stock, Qty 8

0

22

Ariens 53507100

DASH BASE WITH DECALS

$

$

Not available

23

Ariens 06201100

BLT-RDHDSQNK .31-18X.75 GR5 PL
(Superseded to 06215700)

$2.49

$

In Stock, Qty 20+

0

24

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

25

Ariens 06300400

WSHR-LK .375X.115 HVY PL
(Superseded to 06306500)

$3.49

$

In Stock, only 1 left!

0

26

Ariens 06505500

NUT-HEX 10-24 PL

$

$

Not available

27

Ariens 06301100

WSHR-LK 10X.047 MED PL
(Superseded to 06308100)

$1.49

$

Usually ships in 4-12 days

0

28

Ariens 06916200

THROTTLE CONTROL

$68.99

$

Usually ships in 4-12 days

0

29

Ariens 07501900

KNOB

$

$

Not available

30

Ariens 07407300

SCR-SHT.MET10-16X.375 HWH PL B

$

$

Not available

31

Ariens 06405200

WSHR-FL-STL .382X.812X.023 PL
(Superseded to 06436500)

$2.49

$

In Stock, only 2 left!

0

32

Ariens 06510400

NUT .50-20 PL

$

$

Not available

33

Ariens 07506800

KNOB

$5.99

$

Usually ships in 4-12 days

0

34

Ariens 01315700

KEYS
(Superseded to 02460700)

$7.99

$

In Stock, Qty 20+

0

35

Ariens 06517400

NUT- PANEL .562-24 GRECO

$20.99

$

In Stock, only 1 left!

0

36

Ariens 06302900

WSHR-LK-INT .563X.040 PL
(Superseded to 06310900)

$2.49

$

In Stock, only 2 left!

0

37

Ariens 02911700

DASH

$

$

Not available

38

Ariens 06400100

WSHR-FL-STL .250X.562X.049 PL
(Superseded to 06442300)

$1.99

$

Usually ships in 4-12 days

0

39

Ariens 03569700

BALL VALVE

Note: (25,26,31)

$

$

Not available

40

Ariens 03568200

BAFFLE-HOOD

Note: (25,26,31)

$

$

Not available

41

Ariens 06905300

TIE DOWN
(Superseded to 07517300)

$

$

Not available

42

Ariens 07517700

CAP - IGNITION SWITCH

$3.99

$

Usually ships in 4-12 days

0

43

Ariens 06906200

J-CLIP

Note: (25,26,31)

$

$

Not available
