935025 (YT 1232) - Ariens Sierra 32" Yard Tractor, 12.5hp Kohler, Hydro (SN: 000101 & Above) Hydro Speed Selector Parts Diagram

Sierra 32" Yard Tractor, 12.5hp Kohler, Hydro

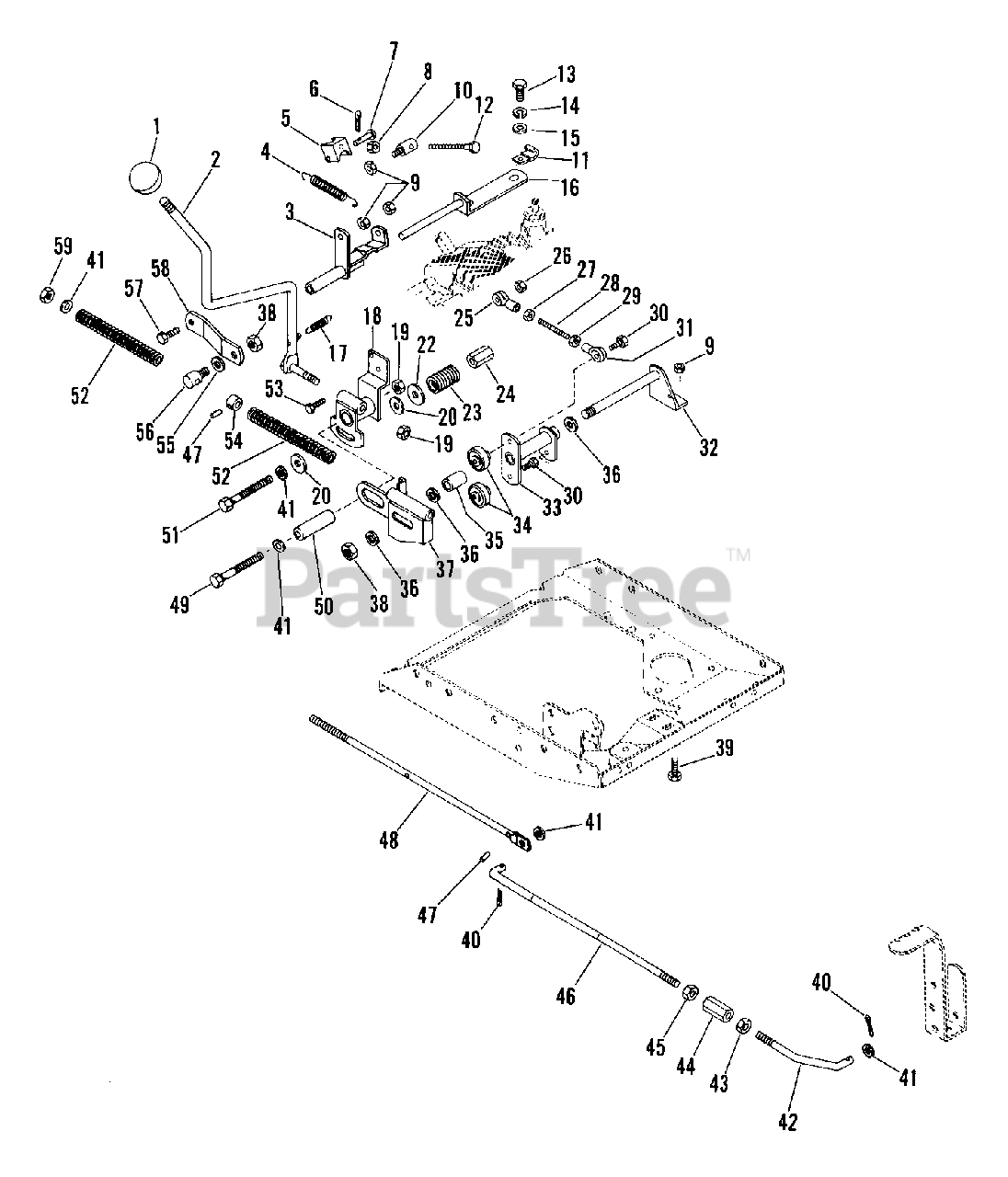

Hydro Speed Selector Parts Diagram

  • Title

1

Ariens 07517400

BALL

$

$

Not available

2

Ariens 03575300

SHIFT HANDLE

$

$

Not available

3

Ariens 03567900

BRAKE TUBE
(Superseded to 03525500)

$

$

Not available

4

Ariens 08324300

SG-TENS .091X.56X4.25 WLD 40

$

$

Not available

5

Ariens 03583200

CLEVIS

$

$

Not available

6

Ariens 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

$0.99

$

In Stock, Qty 10

0

7

Ariens 00283500

PIN, CLEVIS .243/.248X1.50 YWZ

$3.49

$

Usually ships in 4-12 days

0

8

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

9

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 03569900

ROD PIVOT

$

$

Not available

11

Ariens 06916000

J-CLAMP

$2.49

$

Usually ships in 4-12 days

0

12

Ariens 05926000

BLT-HEX .31-18X3.50 PL GR2
(Superseded to 05948000)

$

$

Not available

13

Ariens 05900200

BLT-HEX .31-18X.63 PL GR 2
(Superseded to 05952200)

$

$

Not available

14

Ariens 06303200

WSHR-LK-EXT .313X.030 PL

$2.49

$

Usually ships in 4-12 days

0

15

Ariens 06400700

WSHR-FL-STL.312X.734X.065PL
(Superseded to 06435800)

$0.99

$

In Stock, Qty 20+

0

16

Ariens 03567800

BRAKE BRACKET

$

$

Not available

17

Ariens 08314100

SG-TENS .063X.44X1.56

$5.99

$

In Stock, Qty 8

0

18

Ariens 03575200

SHIFT

$

$

Not available

19

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 03578700

FRICTION WASHER

$

$

Not available

22

Ariens 06410200

WSHR-FL-STL .406X1.125X.125 PL
(Superseded to 06309100)

$

$

Not available

23

Ariens 08324700

SG-COMP .120X.74X2.09 PL

$

$

Not available

24

Ariens 06517000

NUT GUIDE .375-16 PL

$

$

Not available

25

Ariens 03573300

ROD END, 1/4 LH

$94.99

$

Usually ships in 4-12 days

0

26

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

27

Ariens 06516800

NUT-LH .250-28 GR2 PL

$

$

Not available

28

Ariens 03573100

STUD

$

$

Not available

29

Ariens 06500400

NUT-HEX .250-28 YWZC

$1.99

$

Usually ships in 4-12 days

0

30

Ariens 05901500

BLT-HEX .25-28X.75 PL GR5
(Superseded to 05952300)

$1.99

$

Usually ships in 4-12 days

0

31

Ariens 03573200

ROD END, 1/4 RH

$

$

Not available

32

Ariens 03567600

PIVOT-BRAKE

$

$

Not available

33

Ariens 03568000

SHIFT CONTROL

$

$

Not available

34

Ariens 05417800

BRG-BALL .25-28X1.375X.72

$

$

Not available

35

Ariens 03575400

SPACER .512X.748X1.16

$

$

Not available

36

Ariens 06405600

WSHR-FL-STL .505X.880X.072 PL
(Superseded to 06436600)

$3.99

$

Usually ships in 4-12 days

0

37

Ariens 03575600

BRAKE BRACKET

$

$

Not available

38

Ariens 06504600

NUT-LK-CTR .50-13
(Superseded to 06536300)

$3.99

$

In Stock, only 1 left!

0

39

Ariens 06203300

BLT-RDHDSQNK .312-18X.62SHTPL
(Superseded to 06212200)

$1.49

$

In Stock, Qty 20+

0

40

Ariens 06702400

PIN-COTR .12X.75 PL
(Superseded to 06707300)

$0.99

$

In Stock, Qty 5

0

41

Ariens 06404300

WSHR-FL-STL.406X.812X.065PL
(Superseded to 06436200)

$0.99

$

In Stock, Qty 20+

0

42

Ariens 03575800

FRT BRAKE ROD

$

$

Not available

43

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

In Stock, Qty 20+

0

44

Ariens 06515500

NUT-CUPLG RH & LH THD .37-16PL

$5.99

$

Usually ships in 4-12 days

0

45

Ariens 06517100

NUT LH THD .375-16 GR 2 PL
(Superseded to 06539000)

$3.99

$

In Stock, only 1 left!

0

46

Ariens 03575900

REAR BRAKE ROD

$

$

Not available

47

Ariens 05804800

PIN-ROLL .125X.63

$

$

Not available

48

Ariens 03575500

BRAKE ROD

$

$

Not available

49

Ariens 05923400

BLT-HEX .38-16X3.25 PL GR5
(Superseded to 05961100)

$3.99

$

In Stock, Qty 20+

0

50

Ariens 03576000

SPACER .411X.750X2.465

$

$

Not available

51

Ariens 05926700

BLT-HEX .38-16X3.25 PL GR2

$

$

Not available

52

Ariens 08324800

SG-COMP .125X.74X6.27 WLD 85

$

$

Not available

53

Ariens 05900100

BLT-HEX .25-20X.75 PL GR2
(Superseded to 05946800)

$0.99

$

In Stock, Qty 20+

0

54

Ariens 03576400

LOCATOR BUSHING

$

$

Not available

55

Ariens 06410400

WSHR-FL-STL .520X.810X.033
(Superseded to 06439600)

$2.49

$

Usually ships in 4-12 days

0

56

Ariens 00145600

UNIVERSAL ROD ADAPTER

$

$

Not available

57

Ariens 05900300

BLT-HEX .31-18X1.00 PL GR 2
(Superseded to 05946900)

$1.49

$

In Stock, Qty 20+

0

58

Ariens 03576300

BRAKE LINK

$

$

Not available

59

Ariens 06502400

NUT-LK-NYL .375-24 PL
(Superseded to 06538800)

$1.99

$

In Stock, only 4 left!

0
