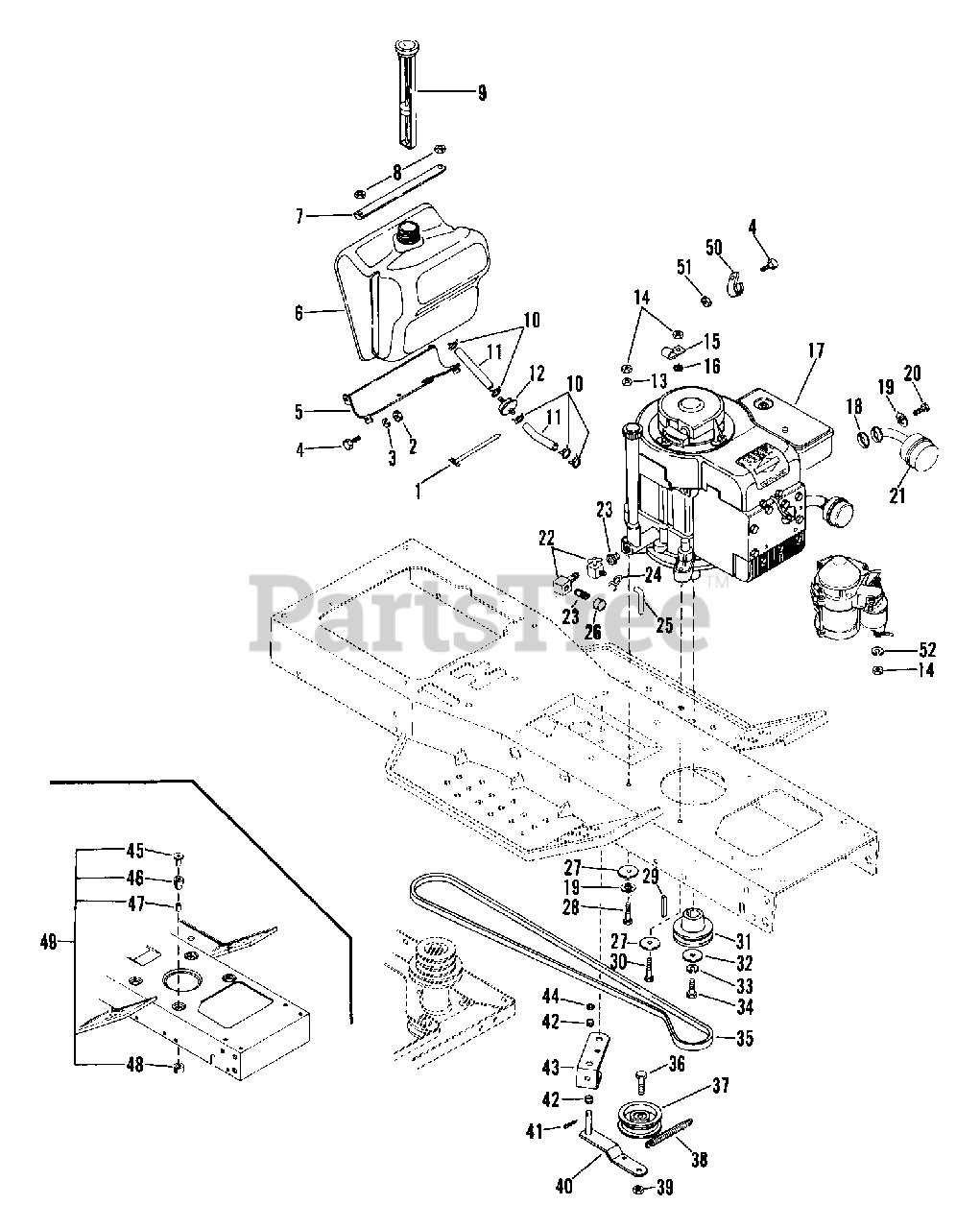

935024 (YT 1232) - Ariens Sierra 32" Yard Tractor, 12hp Kawasaki, Hydro (SN: 000101 & Above) Engine And Belt Drive Parts Diagram

Sierra 32" Yard Tractor, 12hp Kawasaki, Hydro

Engine And Belt Drive Parts Diagram

  • Title

1

Ariens 06905300

TIE DOWN
(Superseded to 07517300)

$

$

Not available

2

Ariens 06503200

NUT-HEX .250-20 PL
(Superseded to 06533200)

$0.99

$

In Stock, Qty 13

0

3

Ariens 06300200

WSHR-LK .250X.077 HVY PL
(Superseded to 06308000)

$

$

Not available

4

Ariens 05902800

BLT-HEX .25-20X.50 PL GR2
(Superseded to 05947900)

Note: (5,9,11,13,14,19,20)

$0.99

$

In Stock, Qty 20+

0

4

Ariens 05902800

BLT-HEX .25-20X.50 PL GR2
(Superseded to 05947900)

Note: (15,24)

$0.99

$

In Stock, Qty 20+

0

5

Ariens 03507200

LOWER TANK SUPPORT

$

$

Not available

6

Ariens 03507100

FUEL TANK
(Superseded to 03563700)

Note: (5,9,11)

$

$

Not available

6

Ariens 03563700

FUEL TANK

Note: (13,14,15,19,20,24)

$

$

Not available

7

Ariens 03507400

CLAMP STRAP

$

$

Not available

8

Ariens 06507000

NUT-LK TOP .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

9

Ariens 03507600

FUEL GAUGE

$

$

Not available

10

Ariens 02917200

CLAMP-HOSE WIR.490/.510X.092#8
(Superseded to 06939100)

Note: (5,9,11,13,14,19,20)

$3.99

$

In Stock, Qty 10

0

10

Ariens 02917200

CLAMP-HOSE WIR.490/.510X.092#8
(Superseded to 06939100)

Note: (15,24)

$3.99

$

In Stock, Qty 10

0

10

Ariens 02740100

HOSE CLAMP
(Superseded to 06924300)

Note: (15,24)

$6.99

$

Usually ships in 4-12 days

0

11

Ariens 03072500

FUEL LINE 1/4 X 67"

Note: (5,9,11,13,14) 67"

$

$

Not available

11

Ariens 03565800

FUEL LINE

Note: (15,24) 10.5"

$

$

Not available

11

Ariens 03565900

FUEL LINE

Note: (15,24) 7.5"

$

$

Not available

11

Ariens 03566000

FUEL LINE

Note: (15,24) 1.5"

$

$

Not available

11

Ariens 03558000

FUEL LINE

Note: (19,20) 13"

$

$

Not available

11

Ariens 03557700

FUEL LINE

Note: (19,20) 3"

$

$

Not available

12

Ariens 02910800

FUEL FILTER

$7.49

$

Usually ships in 4-12 days

0

13

Ariens 06400700

WSHR-FL-STL.312X.734X.065PL
(Superseded to 06435800)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

Note: (935015, 024)

$0.99

$

In Stock, Qty 20+

0

14

Ariens 06512400

NUT-LK-TOP .312-18 GR C PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 06515200

NUT M (ND)

Note: (15,24)

$

$

Not available

15

Ariens 06909400

J-CLAMP

$3.49

$

In Stock, Qty 7

0

16

Ariens 06303200

WSHR-LK-EXT .313X.030 PL

$2.49

$

Usually ships in 4-12 days

0

17

Ariens 08213300

11 HP BRIGGS ENGINE

Note: (5,9)

$

$

Not available

17

Ariens 08219900

11 HP B&S VERTICAL SHAFT IC

Note: (5,9)

$

$

Not available

17

Ariens 08218700

10 HP TECUMSEH ENGINE

Note: (11)NO TVM220LT-15709E

$

$

Not available

17

Ariens 08222700

10HP TEC ELEC START SSI BAL

Note: (11)NO. TVM220LT-157107G

$

$

Not available

17

Ariens 08224500

12 HP B&S VERTICAL SHAFT IC

Note: (13,14)NO. 281707-0143-01

$

$

Not available

17

Ariens 08225600

12.5 HP KAWASAKI ENGINE

Note: (15,24)NO. FB460V-SB16

$

$

Not available

18

Ariens 03506300

GASKET - EXHAUST FLANGE

Note: (5,9)

$5.99

$

Usually ships in 4-12 days

0

19

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

Note: (935005, 009, 011, 013, 014, 019, 020)

$0.99

$

In Stock, Qty 20+

0

19

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

Note: (935015, 024)

$0.99

$

In Stock, Qty 20+

0

20

Ariens 05909000

SCR-SKH .31-18X.75 PL

$2.49

$

In Stock, only 2 left!

0

21

Ariens 03511200

EXHAUST MUFFLER

Note: (5,9)

$

$

Not available

21

EXHAUST MUFFLER(11,13,14)

Note: (11,13,14)

$

$

Not available

22

Ariens 03510500

DRAIN LOCK

Note: (5,9)

$

$

Not available

22

Ariens 03524200

PIPE FITTING 90 DEG. X 3/8 ELB

Note: (11,13,14,19,20)

$

$

Not available

22

Ariens 03576600

FITTING 90 DEGREE SPECIAL

Note: (15,24)

$

$

Not available

23

Ariens 03507700

BUSHING
(Superseded to 03493100)

Note: (5,9)

$5.99

$

Usually ships in 4-12 days

0

23

Ariens 03563500

OIL DRAIN PIPE

Note: (13,14,19,20)

$

$

Not available

23

Ariens 03576700

OIL DRAIN PIPE

Note: (15,24)

$

$

Not available

24

Ariens 03019900

HOSE CLAMP

Note: (5,9)

$

$

Not available

25

Ariens 03510100

TUBE

Note: (5,9)

$

$

Not available

26

Ariens 03563600

PIPE CAP

Note: (13,14,19,20)

$

$

Not available

26

Ariens 02520800

HEX CAP

Note: (15,24)

$

$

Not available

27

Ariens 06409900

WSHR-FL-STL .312X1.62X.13

$

$

Not available

28

Ariens 05913100

BLT-HEX .31-18X2.50 PL GR2
(Superseded to 05952600)

Note: (11)

$1.49

$

In Stock, Qty 20+

0

28

Ariens 05914000

BLT-HEX .31-18X1.50 PL GR5
(Superseded to 05952400)

$1.49

$

In Stock, Qty 13

0

28

Ariens 05926500

BLT-HEX M8 X 1.25X40

Note: (15,24)

$

$

Not available

29

Ariens 06602100

KEY-STR .25X2.0X.25

$4.99

$

Usually ships in 4-12 days

0

30

Ariens 05907400

BLT-HEX .31-18X2.75 PL GR2
(Superseded to 05960600)

Note: (11)

$2.49

$

In Stock, only 2 left!

0

30

Ariens 05912800

BLT-HEX .31-18X1.75 GR5
(Superseded to 05957400)

$2.99

$

In Stock, Qty 8

0

30

Ariens 05926400

BLT-HEX M 8MM-1.25X25MM
(Superseded to 05964900)

Note: (15,24)

$2.49

$

Usually ships in 4-12 days

0

31

Ariens 03550900

ENGINE SHEAVE

Note: (5,9,11,13,14)

$

$

Not available

31

Ariens 03573400

ENGINE SHEAVE

Note: (13,14,19,20)

$

$

Not available

31

Ariens 03570200

ENGINE SHEAVE

Note: (15,24)

$

$

Not available

32

Ariens 06415700

WSHR-FL-STL .469X1.380X.125

Note: (5,9,13,14)

$

$

Not available

32

Ariens 06407500

WSHR-FL-STL .390X1.500X.125
(Superseded to 06441700)

Note: (11)

$3.99

$

In Stock, only 1 left!

0

33

Ariens 06300500

WSHR-LK .438X.133 HVY
(Superseded to 06310700)

Note: (5,9,13,14)

$2.99

$

Usually ships in 4-12 days

0

33

Ariens 06300400

WSHR-LK .375X.115 HVY PL
(Superseded to 06306500)

Note: (935011)

$3.49

$

In Stock, only 1 left!

0

34

Ariens 05915300

BLT-HEX .44-20X1.00 GR5
(Superseded to 05964500)

Note: (5,9,13,14)

$

$

Not available

34

Ariens 05901700

BLT-HEX .38-24X1.25 BLKO GR5

Note: (11)

$

$

Not available

34

Ariens 05926300

BLT-HEX M10 X 1.5X28

Note: (15,24)

$

$

Not available

35

Ariens 07211600

V-BELT, 4L-RAW EDGE

Note: (5,9,11,13,14)

$55.99

$

Usually ships in 4-12 days

0

35

Ariens 07216100

V-BELT, 4L-RAW EDGE

Note: (13,14,19,20)

$58.99

$

Usually ships in 4-12 days

0

35

Ariens 07215800

V-BELT, 4L-RAW EDGE

Note: (15,24)

$46.99

$

Usually ships in 4-12 days

0

36

Ariens 05915100

BLT-HEX .38-16X1.50 PL GR5
(Superseded to 05957900)

$1.49

$

In Stock, Qty 14

0

37

Ariens 07311100

IDLER-FLAT 2.75 X .38 DAYCO

$39.99

$

In Stock, only 3 left!

0

38

Ariens 08305800

SG-TENS .080X.470X4.88 WLD 30

$14.99

$

Usually ships in 4-12 days

0

39

Ariens 06512200

NUT-LK TOP .375-16 GR C YWZC

$2.49

$

Usually ships in 4-12 days

0

40

Ariens 03570600

IDLER ARM

$

$

Not available

41

Ariens 06700400

PIN-COTR .12X1.0 PL
(Superseded to 06707100)

$0.99

$

In Stock, Qty 10

0

42

Ariens 05503600

BSHG-FLG .372X.500X.312X.625NY

$1.49

$

In Stock, Qty 20+

0

43

Ariens 03504400

IDLER PIVOT

$

$

Not available

44

Ariens 06404300

WSHR-FL-STL.406X.812X.065PL
(Superseded to 06436200)

$0.99

$

In Stock, Qty 20+

0

45

Ariens 03530900

SPACER-SHOULDER
(Superseded to 53503300)

Note: (11)

$

$

Not available

46

Ariens 03531100

BOTTOM ISOLATION MOUNT
(Superseded to 53503300)

Note: (11)

$

$

Not available

47

Ariens 03521600

RUBBER BUSHING

Note: (11)

$3.49

$

Usually ships in 4-12 days

0

48

Ariens 03531000

TOP ISOLATION MOUNT
(Superseded to 53503300)

Note: (11)

$

$

Not available

49

Ariens 53503300

ISOLATION MOUNT ASSEMBLY

Note: (11)

$

$

Not available

50

Ariens 06911000

CLIP

$

$

Not available

51

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

$0.99

$

In Stock, Qty 20+

0

52

Ariens 06303600

WSHR-LK .313X.078 PL MED
(Superseded to 06308600)

$0.99

$

In Stock, Qty 20+

0
