935020 (YT 1238) - Ariens Sierra 38" Yard Tractor, 12hp Briggs & Stratton, Hydro (SN: 000101 & Above) Electrical Parts Diagram

Sierra 38" Yard Tractor, 12hp Briggs & Stratton, Hydro

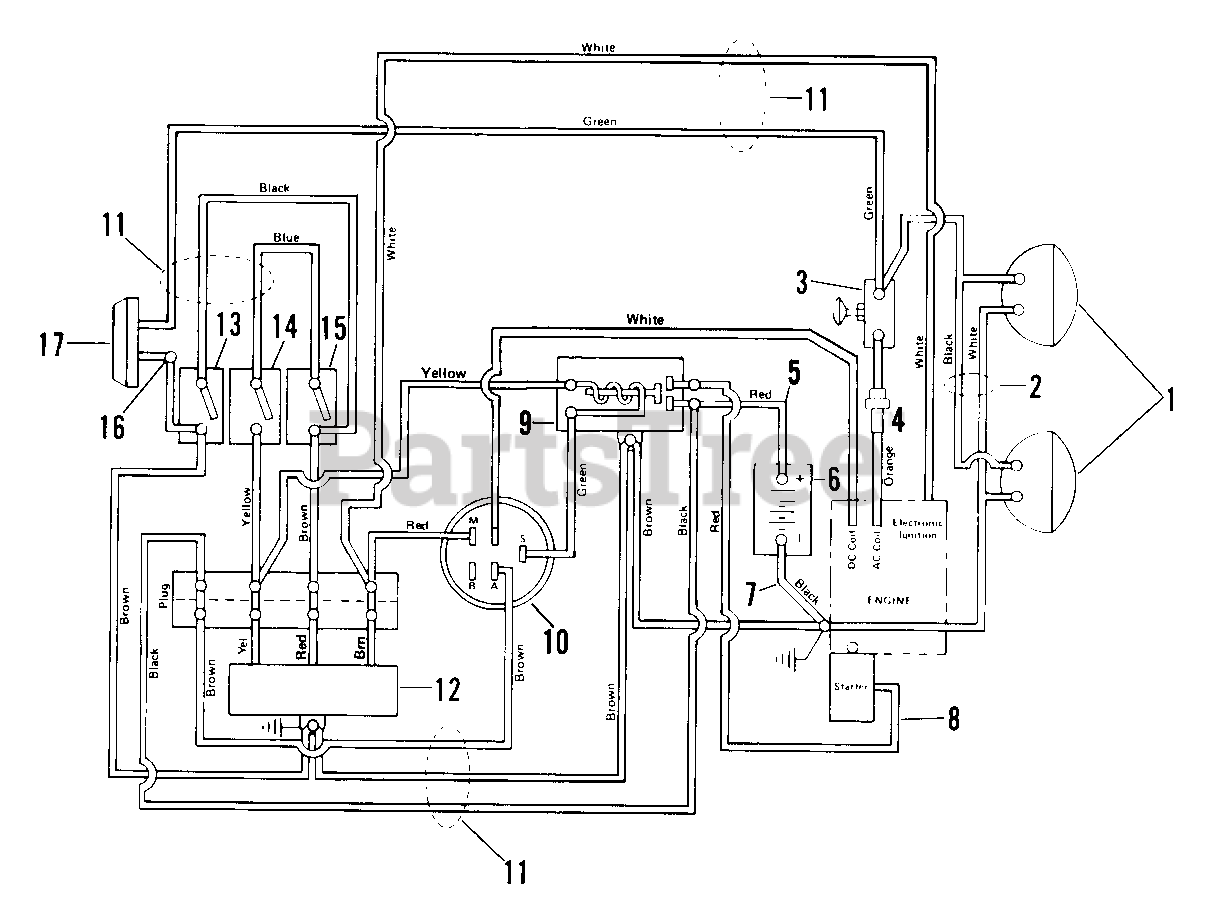

Electrical Parts Diagram

  • Title
1

Ariens 03114900

HEAD LIGHT

$20.99

$

Usually ships in 4-12 days

0

2

Ariens 03539800

WIRE HARNESS - HEADLIGHT

$

$

Not available

3

Ariens 03115100

LIGHT SWITCH
(Superseded to 51513800)

$

$

Not available

4

6 AMP FUSE

Note: (935005, 009, 013, 014)

$

$

Not available

5

Ariens 03557600

STARTER CABLE

Note: (935005, 009)

$

$

Not available

5

Ariens 03562100

CABLE

Note: (935013, 014, 019, 020)

$

$

Not available

6

Ariens 03550500

BATTERY
(Superseded to 53123300)

$

$

Not available

7

Ariens 03537000

GROUND CABLE

Note: (935005, 009)

$

$

Not available

7

Ariens 03562000

CABLE-GROUND

Note: (935013, 014, 019, 020)

$

$

Not available

8

Ariens 03557500

STARTER CABLE 16"

Note: (935005, 009)

$

$

Not available

8

Ariens 03561900

CABLE STARTER

Note: (935013, 014, 019, 020)

$

$

Not available

9

Ariens 03551000

SOLENOID

Note: (935013, 014, 019, 020)

$34.99

$

In Stock, Qty 14

0

10

Ariens 53507600

IGNITION SWITCH ASSEMBLY

Note: (935013, 014, 019, 020)

$

$

Not available

11

Ariens 03536900

WIRE HARNESS 11HP

Note: (935005, 009)

$

$

Not available

11

Ariens 03578100

WIRE HARNESS

Note: (935013, 014, 019, 020)

$

$

Not available

12

Ariens 03505200

MODULE
(Superseded to 53510500)

Note: (935005, 009, 013, 014, 019, 020)

$

$

Not available

13

Ariens 03171600

SWITCH SEAT

$

$

Not available

14

Ariens 02707800

SWITCH INTERLOCK

$17.99

$

Usually ships in 4-12 days

0

15

Ariens 02913100

SWITCH-NEUTRAL START N.O.

Note: (935005, 009, 013, 014)

$45.99

$

In Stock, Qty 7

0

15

Ariens 03110700

SAFETY SWITCH

Note: (935019, 020)

$39.99

$

Usually ships in 4-12 days

0

16

Ariens 03005000

MALE DISCONNECT ADAPTER

$

$

Not available

17

Ariens 03063500

TAIL LIGHT ASSEMBLY W/BULLET
(Superseded to 53128400)

$119.99

$

Usually ships in 4-12 days

0
