93502-5112-XX - Briggs & Stratton Vertical Engine Sump Base, Blower Hsg. Chart Parts Diagram

Vertical Engine

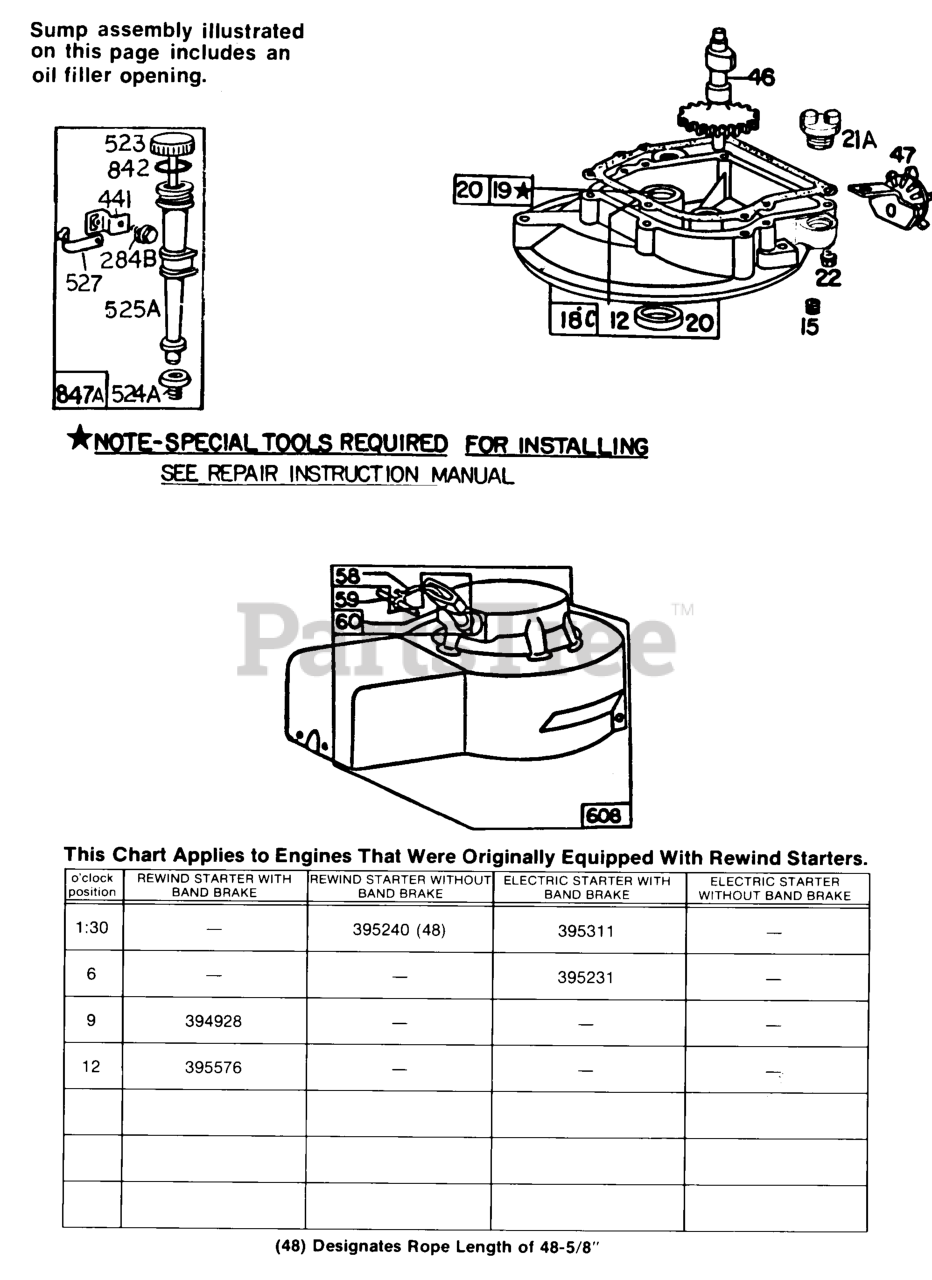

Sump Base, Blower Hsg. Chart Parts Diagram

  • Title

12

Briggs & Stratton 270833

Gasket, Crankcase (.015")
(Superseded to 692218)

Note: Included in Gasket Set-Part No. 298989

$

$

Not available

12

Briggs & Stratton 270895

Gasket-Crkcse (.005")

Note: Included in Gasket Set-Part No. 298989

$9.99

$

In Stock, only 2 left!

0

12

Briggs & Stratton 270896

Gasket-Crkcse (.009")

Note: Included in Gasket Set-Part No. 298989

$5.99

$

In Stock, Qty 8

0

15

Briggs & Stratton 93418

Plug, Pipe (Flush)
(Superseded to 691680)

$5.99

$

In Stock, only 1 left!

0

18C

Briggs & Stratton 394157

Sump-Oil

Note: The Following Engine Base Has An Oil Filler Boss

$116.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 293709

Bushing/Seal Kit (Plain)

Note: Requires Special Tool for Installation

$11.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 391483

Seal-Oil
(Superseded to 391483S)

$5.99

$

In Stock, Qty 5

0

21A

Briggs & Stratton 66768

Plug, Oil Fill
(Superseded to 281658S)

Note: (Used with Engine Bases Which Have An Oil Fill Boss)

$4.49

$

In Stock, Qty 20+

0

22

Briggs & Stratton 93032

Screw-Tank Mounting
(Superseded to 692551)

$3.99

$

In Stock, only 2 left!

0

46

Briggs & Stratton 394800

Gear, Cam Assy (Metal)
(Superseded to 793149)

$74.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 294652

Oil Slinger Gear And Bracket
(Superseded to 698690)

$15.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 280406

Rope, Starter (81" Cut To Required Length)
(Superseded to 280406S)

Note: If longer rope is needed, Order No. 280399 (99") and cut to required length. Order 66734 for 48-5/8" rope.

$8.49

$

In Stock, Qty 5

0

59

Briggs & Stratton 230228

Pin-Starter Rope
(Superseded to 230228S)

$3.99

$

In Stock, only 4 left!

0

60

Briggs & Stratton 393152

Insert-Starter Handle

$4.99

$

Usually ships in 2-12 days

0

284B

Briggs & Stratton 93572

Screw, Hex Head Tap (10-32 X 3/8)
(Superseded to 690664)

$5.49

$

In Stock, only 1 left!

0

441

Briggs & Stratton 222530

Bracket-Oil Fill Tube

$11.99

$

Usually ships in 2-12 days

0

523

Briggs & Stratton 396372

Dipstick & Cap Assy.
(Superseded to 495234)

$14.99

$

Usually ships in 2-12 days

0

524A

Briggs & Stratton 68838

Seal-Oil Filler Tube To Sump
(Superseded to 281370S)

$8.49

$

In Stock, Qty 20+

0

525A

Briggs & Stratton 280131

Tube-Oil Filler

$12.99

$

Usually ships in 2-12 days

0

527

Briggs & Stratton 222548

Clamp-Tube

$28.99

$

Usually ships in 2-12 days

0

608

Briggs & Stratton 394928

Rewind Starter With Band Brake O'clock Position 9
(Superseded to 397924)

$42.99

$

Usually ships in 2-12 days

0

608

Briggs & Stratton 395231

Starter-Rewind (6 O'clock)

$44.99

$

Usually ships in 2-12 days

0

608

Briggs & Stratton 395240

Rewind Starter Without Band Brake O'clock Position 1:30

Note: Desinates Rope Length of 48-5/8"

$

$

Not available

608

Briggs & Stratton 395311

Electric Starter With Band Brake O'clock Position 1:30

$59.99

$

Usually ships in 2-12 days

0

608

Briggs & Stratton 395576

Rewind Starter With Band Brake O'clock Position 12

$

$

Not available

842

Briggs & Stratton 270920

Seal, Oil Fill Tube
(Superseded to 691870)

$4.49

$

Usually ships in 2-12 days

0

847A

Briggs & Stratton 392055

Dipstick/Tube Assy

$47.99

$

Usually ships in 2-12 days

0
