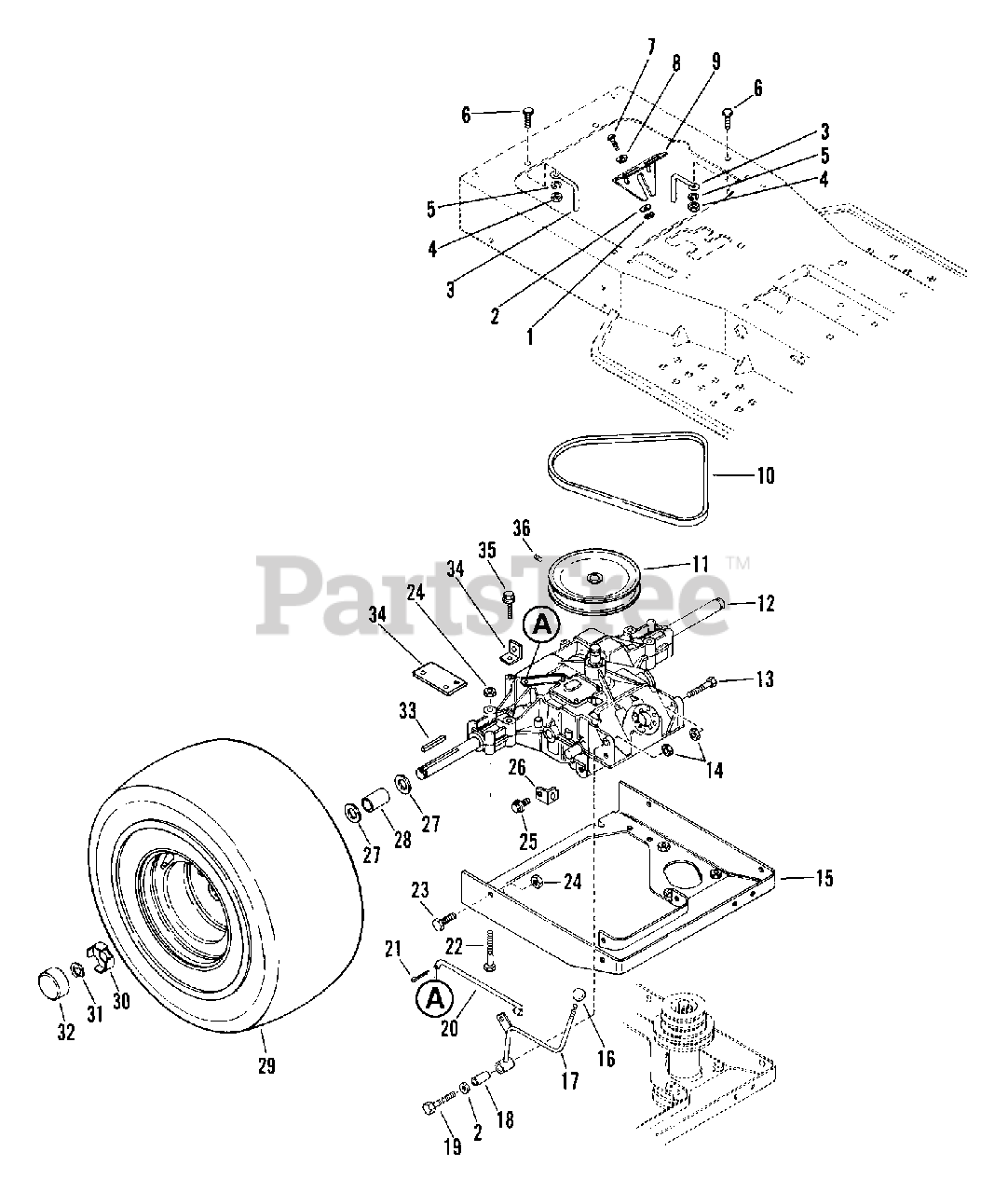

935019 (YT 1232) - Ariens Sierra 32" Yard Tractor, 12hp Briggs & Stratton, Hydro (SN: 000101 & Above) Rear Wheel & Gear Drive Parts Diagram

Sierra 32" Yard Tractor, 12hp Briggs & Stratton, Hydro

Rear Wheel & Gear Drive Parts Diagram

  • Title

1

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

2

Ariens 06400700

WSHR-FL-STL.312X.734X.065PL
(Superseded to 06435800)

$0.99

$

In Stock, Qty 20+

0

3

Ariens 03175500

BELT FINGER

Note: (5,9,11)

$5.99

$

Usually ships in 4-12 days

0

4

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

Note: (935005, 009, 011)

$0.99

$

In Stock, Qty 20+

0

5

Ariens 06302100

WSHR-LK .375X.094 MED PL
(Superseded to 06308800)

Note: (5,9,11)

$0.99

$

In Stock, Qty 20+

0

6

Ariens 05900400

BLT-HEX .38-16X1.00 PL
(Superseded to 05948700)

Note: (935005, 009, 011)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 05900500

BLT-HEX .38-16X1.25 PL GR 2
(Superseded to 05958000)

Note: (13,14)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 05903400

BLT-HEX .31-18X.88 PL GR2
(Superseded to 05947800)

$2.49

$

In Stock, only 2 left!

0

8

Ariens 03502700

SPACER -FLANGED .325X.498X.318

$3.99

$

Usually ships in 4-12 days

0

9

Ariens 03502600

CAM ACTUATOR

$

$

Not available

10

Ariens 07211700

V-BELT, 4L-RAW EDGE

$31.99

$

In Stock, only 2 left!

0

11

Ariens 07310500

PLY-V 6.00 X .63 W/KEY (ADAMS)

$90.99

$

Usually ships in 4-12 days

0

12

Ariens 03559100

TRANSAXLE ASSEMBLY

$

$

Not available

13

Ariens 05908300

BLT-HEX .25-20X1.00 PL GR5
(Superseded to 05947700)

$1.49

$

In Stock, Qty 9

0

14

Ariens 06507000

NUT-LK TOP .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

15

Ariens 03543400

TRANSAXLE MOUNT

$

$

Not available

16

Ariens 07500100

SHIFT BALL
(Superseded to 07505200)

$20.99

$

In Stock, only 1 left!

0

17

Ariens 03501200

RANGE SELECTOR LEVER

$

$

Not available

18

Ariens 01316600

SPACER .50 X .32 X 1.00

$

$

Not available

19

Ariens 05916200

BLT-HEX .25-20X2.00 PL GR5
(Superseded to 05967100)

$2.49

$

Usually ships in 4-12 days

0

20

Ariens 03501100

SELECTOR ROD

$

$

Not available

21

Ariens 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

$0.99

$

In Stock, Qty 10

0

22

Ariens 05916000

BLT-HEX .38-16X2.75 PL GR5
(Superseded to 05961400)

$3.99

$

In Stock, only 4 left!

0

23

Ariens 05914500

BLT-HEX .38-16X1.00 PL GR5
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

24

Ariens 06512200

NUT-LK TOP .375-16 GR C YWZC

$2.49

$

Usually ships in 4-12 days

0

25

Ariens 07401400

SCR-TAP .312-18X.50 HWH PL TR
(Superseded to 07411500)

$1.49

$

In Stock, Qty 20+

0

26

Ariens 03502000

SPRING ANCHOR

$

$

Not available

27

Ariens 06404800

WSHR-FL-STL .755X1.375X.062 PL
(Superseded to 06441500)

$3.99

$

In Stock, only 4 left!

0

28

Ariens 03506800

SPACER 1.000 X .760 X 1.562

Note: (5,9,11,13,14)

$

$

Not available

28

Ariens 03566700

SPACER-RH AXLE 1.007X1.43X.535

Note: (15,19,20,24)

$

$

Not available

28

Ariens 03566800

SPACER-LH AXLE

Note: (15,19,20,24)

$

$

Not available

29

Ariens 07114900

T/WHL ASSY

$

$

Not available

29

Ariens 07101800

TIRE 18 X 8.50-8

$

$

Not available

29

Ariens 07113000

WHL
(Superseded to 07153600)

$

$

Not available

29

Ariens 07120400

T/WHL ASSY

$

$

Not available

29

Ariens 07120300

TIRE 18 X 8.50-8

$

$

Not available

29

Ariens 07120200

WHL

$

$

Not available

30

Ariens 03516900

SPINDLE CUP

Note: (5,9,11,13,14)

$19.99

$

In Stock, only 1 left!

0

30

Ariens 03566600

SPINDLE CUP

Note: (15,19,20,24)

$

$

Not available

31

Ariens 05707400

RG-RTNG-EXT .750X.050

Note: (5,9,11,13,14)

$2.49

$

Usually ships in 4-12 days

0

31

Ariens 05707300

RG-RTNG-EXT 1.00X.078

$2.99

$

In Stock, Qty 9

0

32

Ariens 00337700

HUB CAP

$2.99

$

In Stock, Qty 20+

0

33

Ariens 06601900

KEY-SQ .188X2.0X.188 SAE 8630

$

$

Not available

33

Ariens 06602100

KEY-STR .25X2.0X.25

$4.99

$

Usually ships in 4-12 days

0

34

Ariens 02433100

TAB

Note: (5,9,11)

$

$

Not available

34

Ariens 03560900

ANCHOR PLATE

Note: (11,13,14)

$

$

Not available

35

Ariens 07407800

SCR-TAP .250-20X1.31 TTH PL

$

$

Not available

36

Ariens 06001400

SCR-SET .25-20X.25 SKHCUPNY OH
(Superseded to 06005400)

$3.99

$

Usually ships in 4-12 days

0
