935019 (YT 1232) - Ariens Sierra 32" Yard Tractor, 12hp Briggs & Stratton, Hydro (SN: 000101 & Above) Power Take Off Parts Diagram

Sierra 32" Yard Tractor, 12hp Briggs & Stratton, Hydro

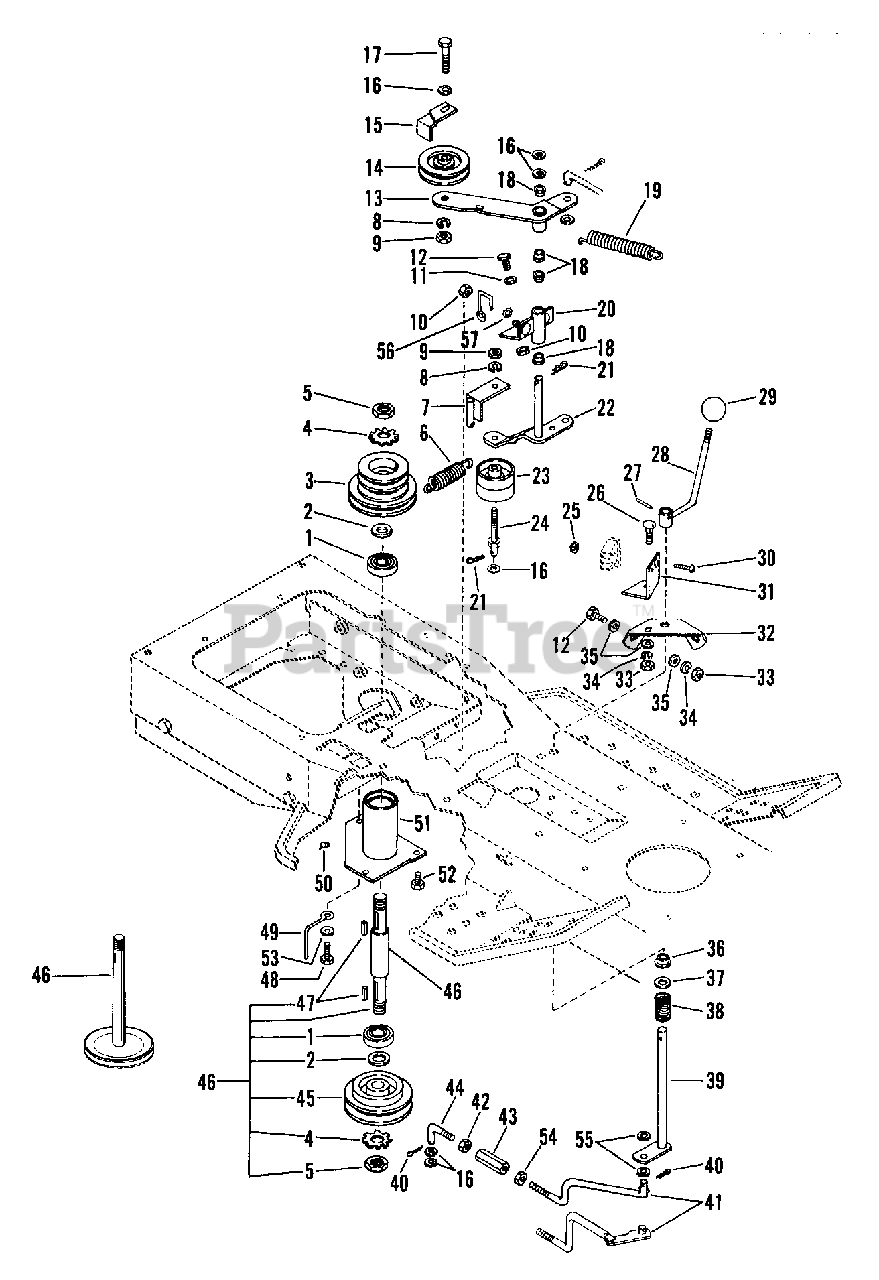

Power Take Off Parts Diagram

  • Title

1

Ariens 05412000

BRG-BALL .750X1.781X.61

$13.99

$

In Stock, Qty 7

0

2

Ariens 06408800

WSHR-FL-STL .755X1.250X.125
(Superseded to 06441500)

$3.99

$

In Stock, only 4 left!

0

3

Ariens 03526500

TRIPLE GROOVE PULLEY

Note: (5,9,11,13,14)

$129.99

$

Usually ships in 4-12 days

0

3

Ariens 03570300

DOUBLE GROOVE SHEAVE

Note: (15,19,20,24)

$

$

Not available

4

Ariens 03559000

STAR WASHER

$19.99

$

Usually ships in 4-12 days

0

5

Ariens 06502500

NUT-JAM .75-10 PL
(Superseded to 06537700)

$2.49

$

In Stock, only 2 left!

0

6

Ariens 08322100

SG-TENS .112X.89X5.28 WLD 56

$45.99

$

Usually ships in 4-12 days

0

7

Ariens 03526100

BRACKET

Note: (5,11,13,24)

$

$

Not available

8

Ariens 06300400

WSHR-LK .375X.115 HVY PL
(Superseded to 06306500)

$3.49

$

In Stock, only 1 left!

0

9

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

In Stock, Qty 20+

0

10

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 06400700

WSHR-FL-STL.312X.734X.065PL
(Superseded to 06435800)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 05913500

BLT-HEX .31-18X.75 PL GR5
(Superseded to 05947000)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 03502100

IDLER ARM

Note: (5,9,13,14)

$34.99

$

Usually ships in 4-12 days

0

14

Ariens 07310900

IDLER-V 3.06 X .38

Note: (5,9,13,14)

$23.99

$

Usually ships in 4-12 days

0

15

Ariens 03502200

BELT RETAINER

Note: (5,9,13,14)

$

$

Not available

16

Ariens 06404300

WSHR-FL-STL.406X.812X.065PL
(Superseded to 06436200)

$0.99

$

In Stock, Qty 20+

0

17

Ariens 05902700

BLT-HEX .38-16X1.75 PL GR2
(Superseded to 05958500)

$1.49

$

In Stock, Qty 20+

0

18

Ariens 05503600

BSHG-FLG .372X.500X.312X.625NY

$1.49

$

In Stock, Qty 20+

0

19

Ariens 08311700

SG-TENS .105X.812X3.88 WLD 15

Note: (5,9,13,14)

$7.99

$

In Stock, only 1 left!

0

20

Ariens 03501700

IDLER PIVOT

$

$

Not available

21

Ariens 06702000

PIN-HAIR INT .08X.18X1.18
(Superseded to 06713500)

$0.99

$

In Stock, Qty 20+

0

22

Ariens 03501800

IDLER ARM

Note: (5,9,13,14)

$

$

Not available

22

Ariens 03568400

IDLER ARM

Note: (15,19,20,24)

$

$

Not available

23

Ariens 07310800

IDLER-FLAT 2.25 X .38

$34.99

$

In Stock, only 1 left!

0

24

Ariens 05902700

BLT-HEX .38-16X1.75 PL GR2
(Superseded to 05958500)

Note: (5,11,13)

$1.49

$

In Stock, Qty 20+

0

24

Ariens 03501900

IDLER MTG BOLT

Note: (9,14,15,20)

$

$

Not available

25

Ariens 06505100

NUT-KEPS 10-24 PL
(Superseded to 06536600)

$0.99

$

In Stock, Qty 5

0

26

Ariens 06201100

BLT-RDHDSQNK .31-18X.75 GR5 PL
(Superseded to 06215700)

$2.49

$

In Stock, Qty 20+

0

27

Ariens 05800300

PIN-ROLL .188X1.25

$0.99

$

In Stock, Qty 20+

0

28

Ariens 03505800

P T O HANDLE

$

$

Not available

29

Ariens 07500100

SHIFT BALL
(Superseded to 07505200)

$20.99

$

In Stock, only 1 left!

0

30

Ariens 06105000

SCR-MCH 10-24X1.00 SLRH PL

$

$

Not available

31

Ariens 03506000

SWITCH BRACKET

$

$

Not available

32

Ariens 03505900

BRACKET

$

$

Not available

33

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

34

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

35

Ariens 06405700

WSHR-FL-STL .323X.625X.062 PL
(Superseded to 06436700)

$1.49

$

In Stock, only 2 left!

0

36

Ariens 05503700

BSHG-FLG.500X.625X.312X.750NY

$0.99

$

In Stock, Qty 20+

0

37

Ariens 06400300

WSHR-FL-STL .531X1.062X.095 PL
(Superseded to 06441900)

$0.99

$

In Stock, Qty 20+

0

38

Ariens 08313200

SG-COMP .080X.85X1.44

$38.99

$

Usually ships in 4-12 days

0

39

Ariens 03505700

PTO LEVER

$

$

Not available

40

Ariens 06700400

PIN-COTR .12X1.0 PL
(Superseded to 06707100)

$0.99

$

In Stock, Qty 10

0

41

Ariens 03534600

IDLER LINK

Note: (5,9,11,13,14)

$

$

Not available

41

Ariens 03568500

IDLER LINK

Note: (15,19,20,24)

$

$

Not available

42

Ariens 06500100

NUT-JAM .375-16 PL
(Superseded to 06500910)

Note: (5,9,11,13,14)

$0.99

$

In Stock, Qty 20+

0

42

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

Note: (935015 ,019, 020, 024)

$0.99

$

In Stock, Qty 20+

0

43

Ariens 06514700

NUT-CUPLG .375-16 PL

Note: (5,9,11,13,14)

$

$

Not available

43

Ariens 06515500

NUT-CUPLG RH & LH THD .37-16PL

Note: (15,19,20,24)

$5.99

$

Usually ships in 4-12 days

0

44

Ariens 03535200

IDLER ADJUSTOR LINK

$

$

Not available

45

Ariens 03557200

SHEAVE-JACKSHAFT

$

$

Not available

46

Ariens 03557300

JACKSHAFT

$109.99

$

Usually ships in 4-12 days

0

46

Ariens 53506000

JACKSHAFT ASSEMBLY

Note: (REPLACES 35015)

$

$

Not available

47

Ariens 06601300

KEY-SQ .188X1.0X.188 SAE 8630

$1.49

$

In Stock, Qty 5

0

48

Ariens 05900300

BLT-HEX .31-18X1.00 PL GR 2
(Superseded to 05946900)

$1.49

$

In Stock, Qty 20+

0

49

Ariens 03175500

BELT FINGER

$5.99

$

Usually ships in 4-12 days

0

50

Ariens 03533300

HYDRAULIC LUBRICATION FITTING

$

$

Not available

51

Ariens 03568300

SPINDLE HOUSING

$

$

Not available

52

Ariens 05904500

BLT-HEX .31-18X1.50 PL GR2
(Superseded to 05952400)

$1.49

$

In Stock, Qty 13

0

53

Ariens 06421400

WSHR-FL-STL .328X1.0X.094 PL
(Superseded to 06437500)

$3.99

$

In Stock, only 3 left!

0

54

Ariens 06517100

NUT LH THD .375-16 GR 2 PL
(Superseded to 06539000)

$3.99

$

In Stock, only 1 left!

0

55

Ariens 06405200

WSHR-FL-STL .382X.812X.023 PL
(Superseded to 06436500)

$2.49

$

In Stock, only 2 left!

0

56

Ariens 03582900

BELT FINGER

Note: (15,19,20,24)

$

$

Not available

57

Ariens 06303200

WSHR-LK-EXT .313X.030 PL

$2.49

$

Usually ships in 4-12 days

0
