935019 (YT 1232) - Ariens Sierra 32" Yard Tractor, 12hp Briggs & Stratton, Hydro (SN: 000101 & Above) Clutch And Brake Parts Diagram

Sierra 32" Yard Tractor, 12hp Briggs & Stratton, Hydro

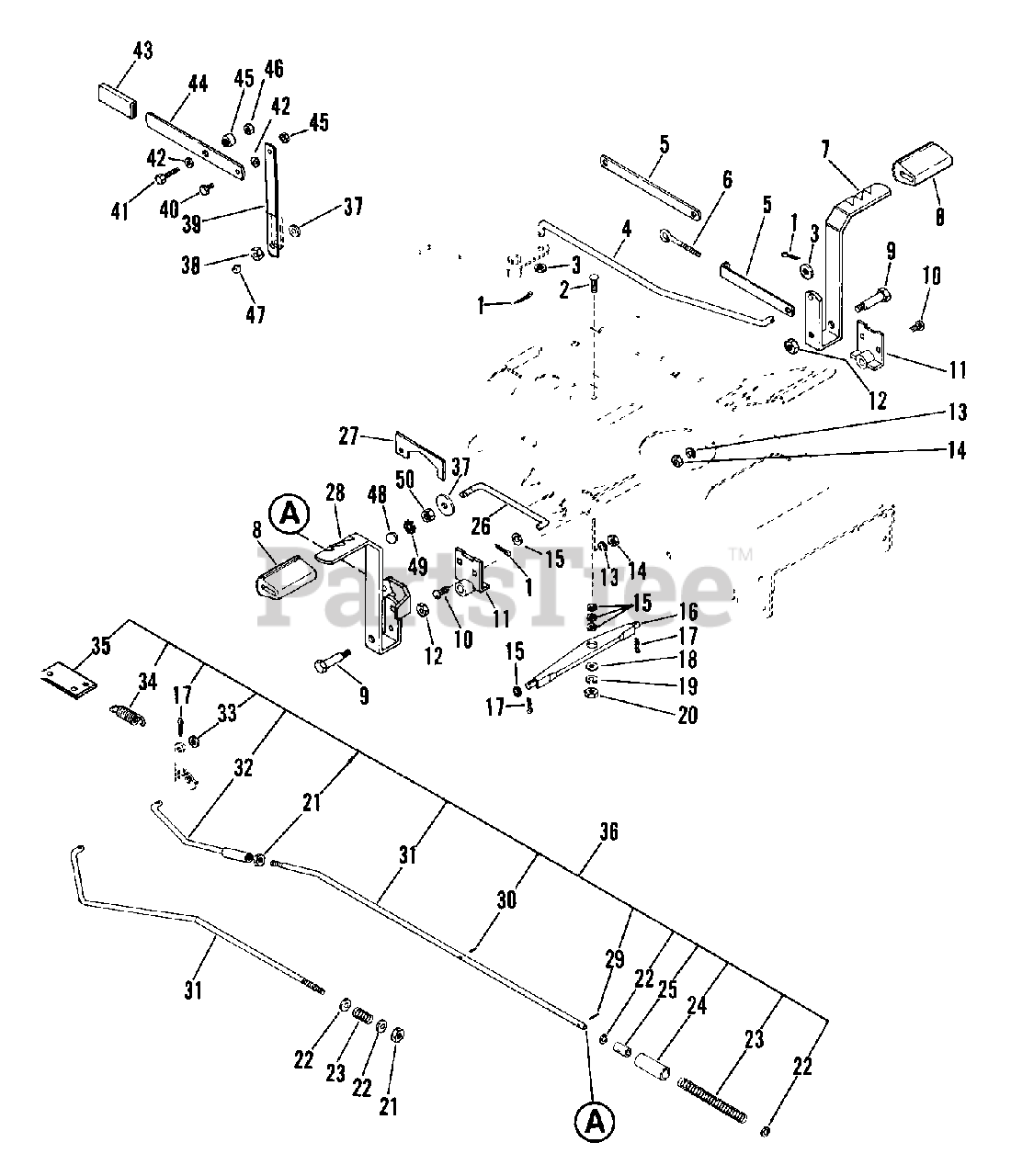

Clutch And Brake Parts Diagram

  • Title

1

Ariens 06702400

PIN-COTR .12X.75 PL
(Superseded to 06707300)

$0.99

$

In Stock, Qty 5

0

2

Ariens 06201600

BLT-RDHDSQNK .38-16X1.25 PL
(Superseded to 06224100)

$2.49

$

In Stock, only 4 left!

0

3

Ariens 06400800

WSHR-FL-STL .438X1.0X.083 PL
(Superseded to 06435900)

$1.49

$

In Stock, Qty 20+

0

4

Ariens 03503400

CLUTCH ROD

$

$

Not available

5

Ariens 03516700

LINK

Note: (935005, 009, 011)

$

$

Not available

5

Ariens 03561400

LINK

Note: (935011, 013, 014)

$

$

Not available

5

Ariens 03561500

EYE-BOLT

Note: (935011, 013, 014)

$

$

Not available

7

Ariens 03503300

CLUTCH PEDAL
(Superseded to 03563800)

Note: (935005, 009, 011)

$

$

Not available

7

Ariens 03563800

CLUTCH PEDAL

Note: (935011, 013, 014)

$

$

Not available

8

Ariens 07502900

PEDAL COVER

Note: (935005, 009, 011, 013, 014)

$

$

Not available

8

Ariens 07502900

PEDAL COVER

Note: (935015, 019, 020, 024)

$

$

Not available

9

Ariens 00301600

SHOULDER BOLT .50 X 1.75

Note: (935005, 009, 011, 013, 014)

$

$

Not available

9

Ariens 00301600

SHOULDER BOLT .50 X 1.75

Note: (935015, 019, 020, 024)

$

$

Not available

10

Ariens 06201100

BLT-RDHDSQNK .31-18X.75 GR5 PL
(Superseded to 06215700)

$2.49

$

In Stock, Qty 20+

0

11

Ariens 03500500

PEDAL PIVOT

Note: (935005, 009, 011, 013, 014)

$5.99

$

Usually ships in 4-12 days

0

11

Ariens 03500500

PEDAL PIVOT

Note: (935015, 019, 020, 024)

$5.99

$

Usually ships in 4-12 days

0

12

Ariens 06506000

NUT-LK-JAM-CTR .375-16 PL
(Superseded to 06537200)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

14

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

15

Ariens 06407800

WSHR-FL-STL .380X.626X.033

$

$

Not available

16

Ariens 03516800

PIVOT ARM

$

$

Not available

17

Ariens 06702000

PIN-HAIR INT .08X.18X1.18
(Superseded to 06713500)

$0.99

$

In Stock, Qty 20+

0

18

Ariens 06404300

WSHR-FL-STL.406X.812X.065PL
(Superseded to 06436200)

$0.99

$

In Stock, Qty 20+

0

19

Ariens 06300400

WSHR-LK .375X.115 HVY PL
(Superseded to 06306500)

$3.49

$

In Stock, only 1 left!

0

20

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

In Stock, Qty 20+

0

21

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

Note: (935005, 009, 011)

$1.49

$

In Stock, Qty 20+

0

21

Ariens 06500500

NUT .375-24 PL

Note: (935011, 013, 014)

$3.99

$

In Stock, only 1 left!

0

22

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0

23

Ariens 08309100

SG-COMP .102X.85X1.031

Note: (935005, 009, 011)

$

$

Not available

23

Ariens 08301800

SG-COMP .106X.63X 12.0 WLD 62

Note: (935011, 013, 014)

$14.99

$

Usually ships in 4-12 days

0

24

Ariens 03561300

SLEEVE

Note: (935011, 013, 014)

$

$

Not available

25

Ariens 03561200

SLEEVE

Note: (935011, 013, 014)

$

$

Not available

26

Ariens 03503600

PARKING BRAKE ROD

Note: (935005, 009, 011)

$

$

Not available

26

Ariens 03571500

PARKING BRAKE ROD

Note: (935013, 014, 015, 019, 020, 024)

$

$

Not available

27

Ariens 03516600

CAM

$

$

Not available

28

Ariens 03503500

BRAKE PEDAL

Note: (935005, 009, 011, 013, 014)

$

$

Not available

28

Ariens 03575700

BRAKE PEDAL

Note: (935015, 019, 020, 024)

$

$

Not available

29

Ariens 05804700

PIN-ROLL .125X.88

Note: (935011, 013, 014)

$0.99

$

In Stock, Qty 15

0

30

Ariens 05803500

PIN-ROLL .125X.50

Note: (935011, 013, 014)

$0.99

$

In Stock, Qty 10

0

31

Ariens 03503700

BRAKE ROD

Note: (935005, 009, 011)

$

$

Not available

31

Ariens 03561100

BRAKE ROD

Note: (935011, 013, 014)

$

$

Not available

32

Ariens 03561000

BRAKE ROD

Note: (935011, 013, 014)

$

$

Not available

33

Ariens 06405700

WSHR-FL-STL .323X.625X.062 PL
(Superseded to 06436700)

$1.49

$

In Stock, only 2 left!

0

34

Ariens 08317800

SG-TENS .072X.75X2.81 WLD ??

$

$

Not available

35

Ariens 03560900

ANCHOR PLATE

Note: (935011, 013, 014)

$

$

Not available

36

Ariens 53507200

BRAKE LINKAGE ASSEMBLY

Note: (935011, 013, 014)

$

$

Not available

37

Ariens 06423400

WSHR-FL-STL .406X1.50X.049PL

$

$

Not available

38

Ariens 06506000

NUT-LK-JAM-CTR .375-16 PL
(Superseded to 06537200)

$0.99

$

In Stock, Qty 20+

0

39

Ariens 03579400

LINK

Note: (93515,19,20,24)

$

$

Not available

40

Ariens 05908000

BLT-HEX .25-20X.63 PL GR2
(Superseded to 05932000)

$1.99

$

In Stock, only 1 left!

0

41

Ariens 05905000

BLT-HEX .25-20X1.50 PL GR5
(Superseded to 05952500)

$1.49

$

In Stock, Qty 20+

0

42

Ariens 06412700

WSHR-FL-STL.281X.62X.065 PL
(Superseded to 06437300)

$0.99

$

In Stock, Qty 20+

0

43

Ariens 07512800

GRIP

Note: (935015, 019, 020, 024)

$

$

Not available

44

Ariens 03579500

ARM

Note: (935015, 019, 020, 024)

$

$

Not available

45

Ariens 03579600

SPACER-SHOULDER

Note: (935015, 019, 020, 024)

$

$

Not available

46

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

47

Ariens 07517500

GRIP

Note: (935015, 019, 020, 024)

$

$

Not available

48

Ariens 07500100

SHIFT BALL
(Superseded to 07505200)

Note: (935013, 014)

$20.99

$

In Stock, only 1 left!

0

49

Ariens 06303500

WSHR-LK-EXT .375X.035 PL
(Superseded to 06308700)

$1.99

$

Usually ships in 4-12 days

0

50

Ariens 06500100

NUT-JAM .375-16 PL
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0
