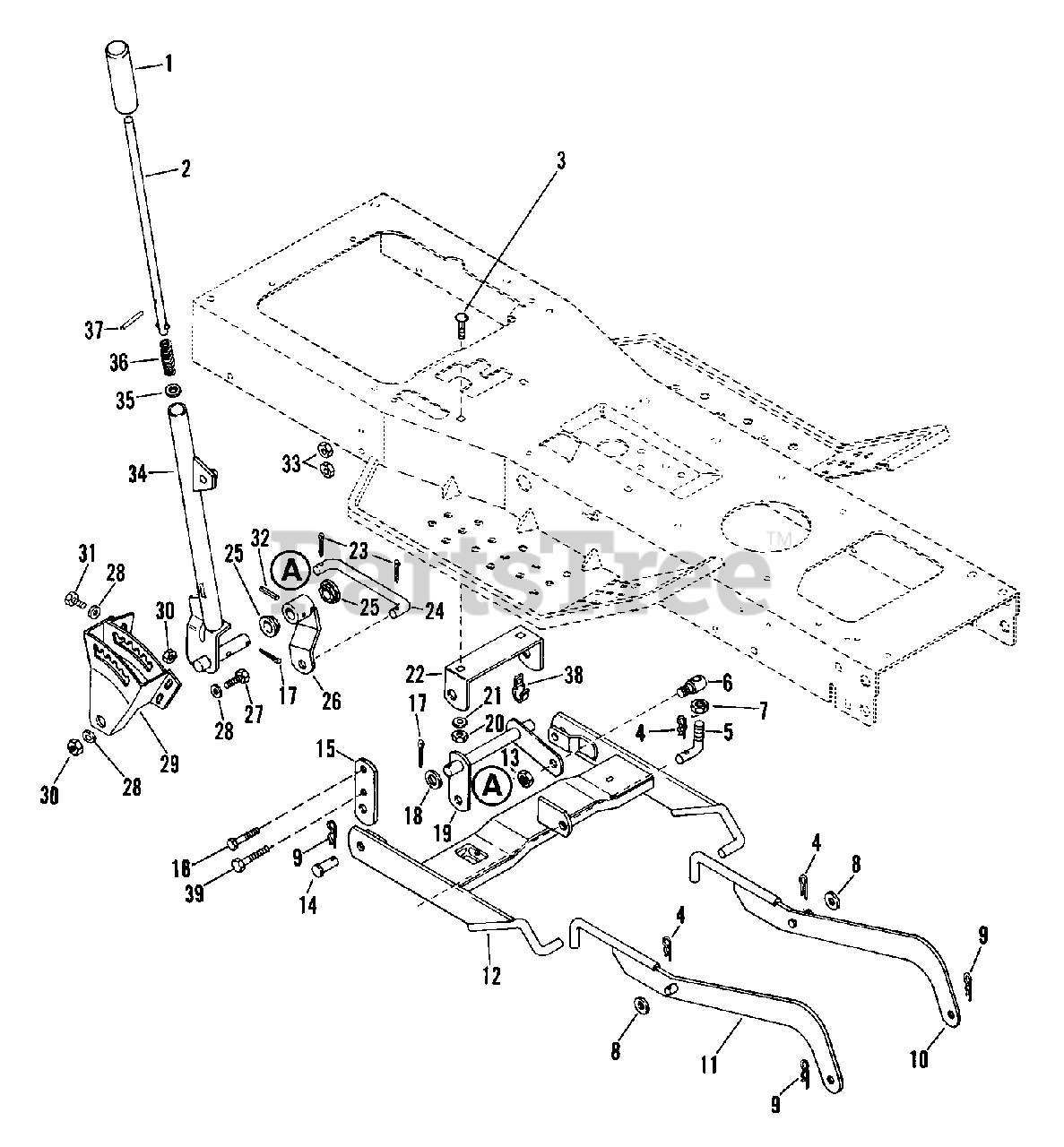

935019 (YT 1232) - Ariens Sierra 32" Yard Tractor, 12hp Briggs & Stratton, Hydro (SN: 000101 & Above) Attachment Lift Parts Diagram

Sierra 32" Yard Tractor, 12hp Briggs & Stratton, Hydro

Attachment Lift Parts Diagram

  • Title

1

Ariens 07505300

GRIP

$

$

Not available

2

Ariens 03504700

PLUNGER ROD

$

$

Not available

3

Ariens 06201000

BLT-RDHDSQNK .38-16X.75 SHT PL
(Superseded to 06200336)

$2.49

$

In Stock, Qty 20+

0

4

Ariens 06701000

PIN-HAIR INT .08X.38X1.42 YWZC
(Superseded to 06700224)

$2.49

$

Usually ships in 4-12 days

0

5

Ariens 03532200

ADJUSTMENT LINK

$

$

Not available

6

Ariens 03532100

ROD END

$

$

Not available

7

Ariens 06501700

NUT-JAM .50-13 PL
(Superseded to 06529300)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 06400300

WSHR-FL-STL .531X1.062X.095 PL
(Superseded to 06441900)

$0.99

$

In Stock, Qty 20+

0

9

Ariens 06702900

PIN-HAIR INT .09X.188 PL

$2.49

$

Usually ships in 4-12 days

0

10

Ariens 03522400

LEFT HANGER
(Superseded to 03564000)

Note: (5,9,11)

$

$

Not available

10

Ariens 03564000

HANGER-LH

Note: (13,14,15,19,20,24)

$

$

Not available

11

Ariens 03522500

RIGHT HANGER
(Superseded to 03563900)

Note: (5,9,11)

$

$

Not available

11

Ariens 03563900

HANGER-RH

Note: (13,14,15,19,20,24)

$

$

Not available

12

Ariens 03522300

REAR HANGER

Note: (5,11,13,19,24)

$

$

Not available

12

Ariens 03524100

REAR HANGER

Note: (9,14,15,20)

$

$

Not available

13

Ariens 06504600

NUT-LK-CTR .50-13
(Superseded to 06536300)

$3.99

$

In Stock, only 2 left!

0

14

Ariens 03138100

PIN-CLEV .494X1.25 YWZC
(Superseded to 06821600)

$3.99

$

In Stock, only 1 left!

0

15

Ariens 03502400

HANGER BRACKET
(Superseded to 03588751)

$30.99

$

Usually ships in 4-12 days

0

16

Ariens 05915400

BLT-HEX .38-16X.75 PL GR5
(Superseded to 05959400)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 06702100

PIN-COTR .12X1.50 PL
(Superseded to 06714300)

$1.99

$

Usually ships in 4-12 days

0

18

Ariens 06406200

WSHR-FL-STL .754X1.125X.062 PL
(Superseded to 06441400)

$0.99

$

In Stock, Qty 20+

0

19

Ariens 03500900

CENTER LIFT LEVER

$

$

Not available

20

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

In Stock, Qty 20+

0

21

Ariens 06302100

WSHR-LK .375X.094 MED PL
(Superseded to 06308800)

$0.99

$

In Stock, Qty 20+

0

22

Ariens 03500800

CENTER LIFT BRACKET

$

$

Not available

23

Ariens 06700400

PIN-COTR .12X1.0 PL
(Superseded to 06707100)

$0.99

$

In Stock, Qty 10

0

24

Ariens 03504900

LIFT LINK

$

$

Not available

25

Ariens 01212800

FLANGE BUSHING

$6.49

$

Usually ships in 4-12 days

0

26

Ariens 03504800

LIFT ARM

$

$

Not available

27

Ariens 05913400

BLT-HEX .31-18X1.25 PL GR5
(Superseded to 05947500)

$2.49

$

In Stock, Qty 11

0

28

Ariens 06405700

WSHR-FL-STL .323X.625X.062 PL
(Superseded to 06436700)

$1.49

$

In Stock, only 2 left!

0

29

Ariens 03504600

LIFT QUADRANT

$

$

Not available

30

Ariens 06512400

NUT-LK-TOP .312-18 GR C PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

31

Ariens 05913500

BLT-HEX .31-18X.75 PL GR5
(Superseded to 05947000)

$1.49

$

In Stock, Qty 20+

0

32

Ariens 05804000

PIN-GRV .250X1.25 TP A

$

$

Not available

33

Ariens 06512200

NUT-LK TOP .375-16 GR C YWZC

$2.49

$

Usually ships in 4-12 days

0

34

Ariens 03504500

LIFT HANDLE

$

$

Not available

35

Ariens 06409600

WSHR-FL-STL .458X.750X.06 PL

$

$

Not available

36

Ariens 08310400

SG-COMP .048X.59X2.06 WLD9

$14.99

$

Usually ships in 4-12 days

0

37

Ariens 05803700

PIN-ROLL .250X1.75

$0.99

$

In Stock, Qty 20+

0

38

Ariens 06916000

J-CLAMP

$2.49

$

Usually ships in 4-12 days

0

39

Ariens 05914500

BLT-HEX .38-16X1.00 PL GR5
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0
