935017 (1232-G) - Gravely 32" Lawn Tractor, 12hp Briggs & Stratton, Gear Drive (SN: 000101 & Above) CLUTCH AND BRAKE Parts Diagram

32" Lawn Tractor, 12hp Briggs & Stratton, Gear Drive

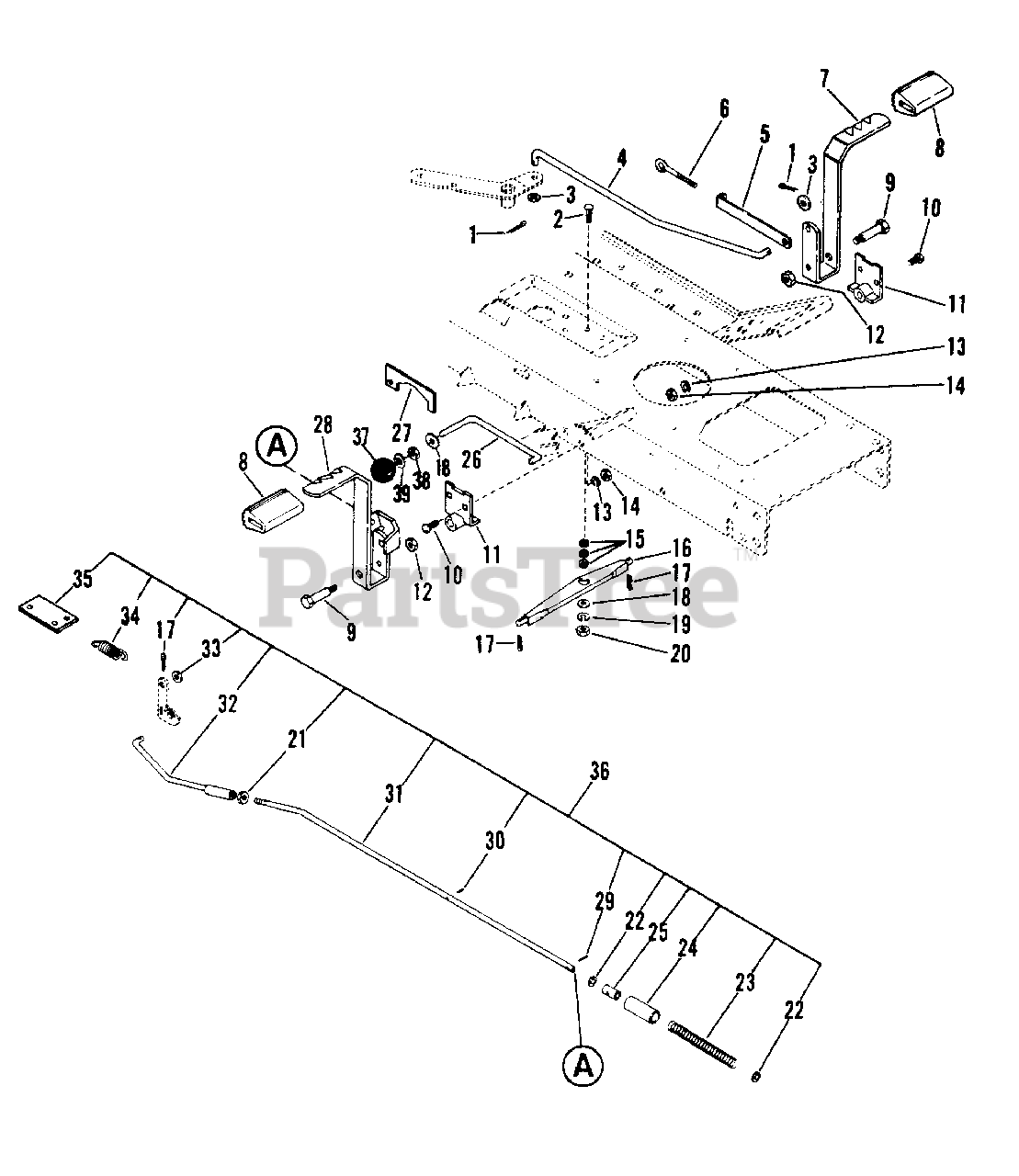

CLUTCH AND BRAKE Parts Diagram

  • Title

1

Gravely 137185

PIN, COTTER .125X1.00
(Superseded to 06707100)

$0.99

$

In Stock, Qty 10

0

2

Gravely 126402

BOLT, 3/8-16X1.25 RD HD SQ NK
(Superseded to 06200415)

$2.49

$

In Stock, only 3 left!

0

3

Gravely 120388

WASHER, FLAT .438X1.000X.083
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 036286

ROD, CLUTCH
(Superseded to 03503400)

$

$

Not available

5

Gravely 044728

LINK
(Superseded to 03561400)

$

$

Not available

6

Gravely 044729

EYEBOLT
(Superseded to 03561500)

$

$

Not available

7

Gravely 044730

PEDAL, CLUTCH
(Superseded to 03563800)

$

$

Not available

8

Gravely 036037

COVER, PEDAL
(Superseded to 07502900)

$

$

Not available

9

Gravely 036028

BOLT, SHOULDER
(Superseded to 00301600)

$

$

Not available

10

Gravely 126216

BOLT, CARRIAGE 5/16-18X.75

$

$

Not available

11

Gravely 036068

PIVOT, PEDAL
(Superseded to 03500500)

$5.99

$

Usually ships in 4-12 days

0

12

Gravely 413534

NUT, LOCK 3/8-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 120379

WASHER, LOCK 5/16 SP
(Superseded to 06304800)

$

$

Not available

14

Gravely 120376

NUT, HEX 5/16-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

15

Gravely 036183

WASHER, .626 I.D. X 3.85 O.D.
(Superseded to 06407800)

$

$

Not available

16

Gravely 036182

ARM, PIVOT
(Superseded to 03516800)

$

$

Not available

17

Gravely 036185

HAIRPIN, INTERNAL 3/32
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 120394

WASHER, FLAT .406X.812X.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 120382

WASHER, LOCK 3/8 REG.
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 120377

NUT, HEX 3/8-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 120369

NUT, HEX 3/8-24
(Superseded to 06522900)

$2.49

$

In Stock, only 2 left!

0

22

Gravely 120394

WASHER, FLAT .406X.812X.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 039609

SPRING
(Superseded to 08301800)

$14.99

$

Usually ships in 4-12 days

0

24

Gravely 044731

SLEEVE
(Superseded to 03561300)

$

$

Not available

25

Gravely 044732

SLEEVE
(Superseded to 03561200)

$

$

Not available

26

Gravely 044733

ROD, PARKING BRAKE
(Superseded to 03571500)

$

$

Not available

27

Gravely 036091

CAM
(Superseded to 03516600)

$

$

Not available

28

Gravely 036030

PEDAL, BRAKE
(Superseded to 03503500)

$

$

Not available

29

Gravely 273936

PIN, SPRING .125X1.000
(Superseded to 05800900)

$0.99

$

In Stock, Qty 20+

0

30

Gravely 455532

PIN, SPRING .125X.50
(Superseded to 21072500)

$

$

Not available

31

Gravely 044734

ROD, BRAKE
(Superseded to 03561100)

$

$

Not available

32

Gravely 044735

ROD, BRAKE
(Superseded to 03561000)

$

$

Not available

33

Gravely 120386

WASHER, FLAT .312X.734X.065
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

34

Gravely 036036

SPRING, EXTENSION
(Superseded to 08317800)

$

$

Not available

35

Gravely 044703

PLATE, ANCHOR
(Superseded to 03560900)

$

$

Not available

36

Gravely 044737

ASSEMBLY, BRAKE LINKAGE
(Superseded to 53507200)

$

$

Not available

37

Gravely 011261

KNOB, ADJUSTMENT CONTROL
(Superseded to 20069800)

$22.99

$

Usually ships in 4-12 days

0

38

Gravely 124829

NUT, JAM 3/8-16 HEX
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

39

Gravely 138489

WASHER, LOCK 3/8 EXT. TOOTH TYA
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+
