935015 (YT 1238) - Ariens Sierra 38" Yard Tractor, 12hp Kawasaki, Hydro (SN: 000101 & Above) Electrical Parts Diagram

Sierra 38" Yard Tractor, 12hp Kawasaki, Hydro

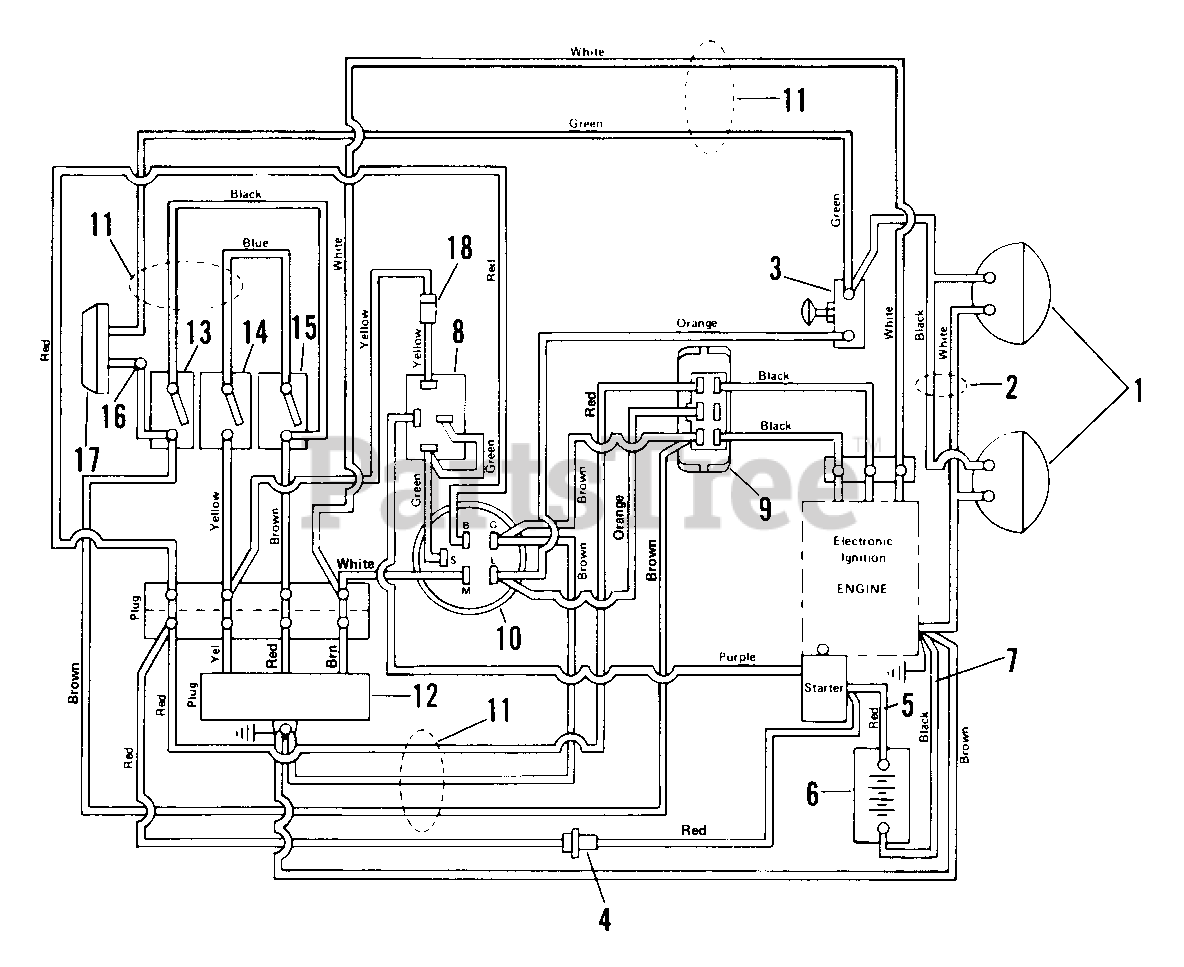

Electrical Parts Diagram

  • Title

1

Ariens 03114900

HEAD LIGHT

$20.99

$

Usually ships in 4-12 days

0

2

Ariens 03539800

WIRE HARNESS - HEADLIGHT

$

$

Not available

3

Ariens 03115100

LIGHT SWITCH
(Superseded to 51513800)

$

$

Not available

5

Ariens 03569500

CABLE

$

$

Not available

6

Ariens 03550500

BATTERY
(Superseded to 53123300)

$

$

Not available

7

Ariens 03562000

CABLE-GROUND

$

$

Not available

8

Ariens 03042800

RELAY
(Superseded to 00432101)

$22.99

$

In Stock, Qty 20+

0

9

Ariens 03571300

REGULATOR

$

$

Not available

10

Ariens 53507700

IGNITION SWITCH ASSY- KAW/KOHL

$111.99

$

Usually ships in 4-12 days

0

11

Ariens 03568100

WIRE HARNESS-KAWASAKI

$

$

Not available

12

Ariens 03505200

MODULE
(Superseded to 53510500)

$

$

Not available

13

Ariens 03171600

SWITCH SEAT

$

$

Not available

14

Ariens 02707800

SWITCH INTERLOCK

$17.99

$

Usually ships in 4-12 days

0

15

Ariens 03110700

SAFETY SWITCH

$39.99

$

Usually ships in 4-12 days

0

16

Ariens 03005000

MALE DISCONNECT ADAPTER

$

$

Not available

17

Ariens 03063500

TAIL LIGHT ASSEMBLY W/BULLET
(Superseded to 53128400)

$119.99

$

Usually ships in 4-12 days

0

18

Ariens 03081700

MOLDED DIODE PLUG 1 AMP

$26.99

$

Usually ships in 4-12 days

0
