935010 (1138-G) - Gravely 38" Lawn Tractor, 11hp Briggs & Stratton, Gear Drive (SN: 000101 & Above) TRANSAXLE PARTS Parts Diagram

38" Lawn Tractor, 11hp Briggs & Stratton, Gear Drive

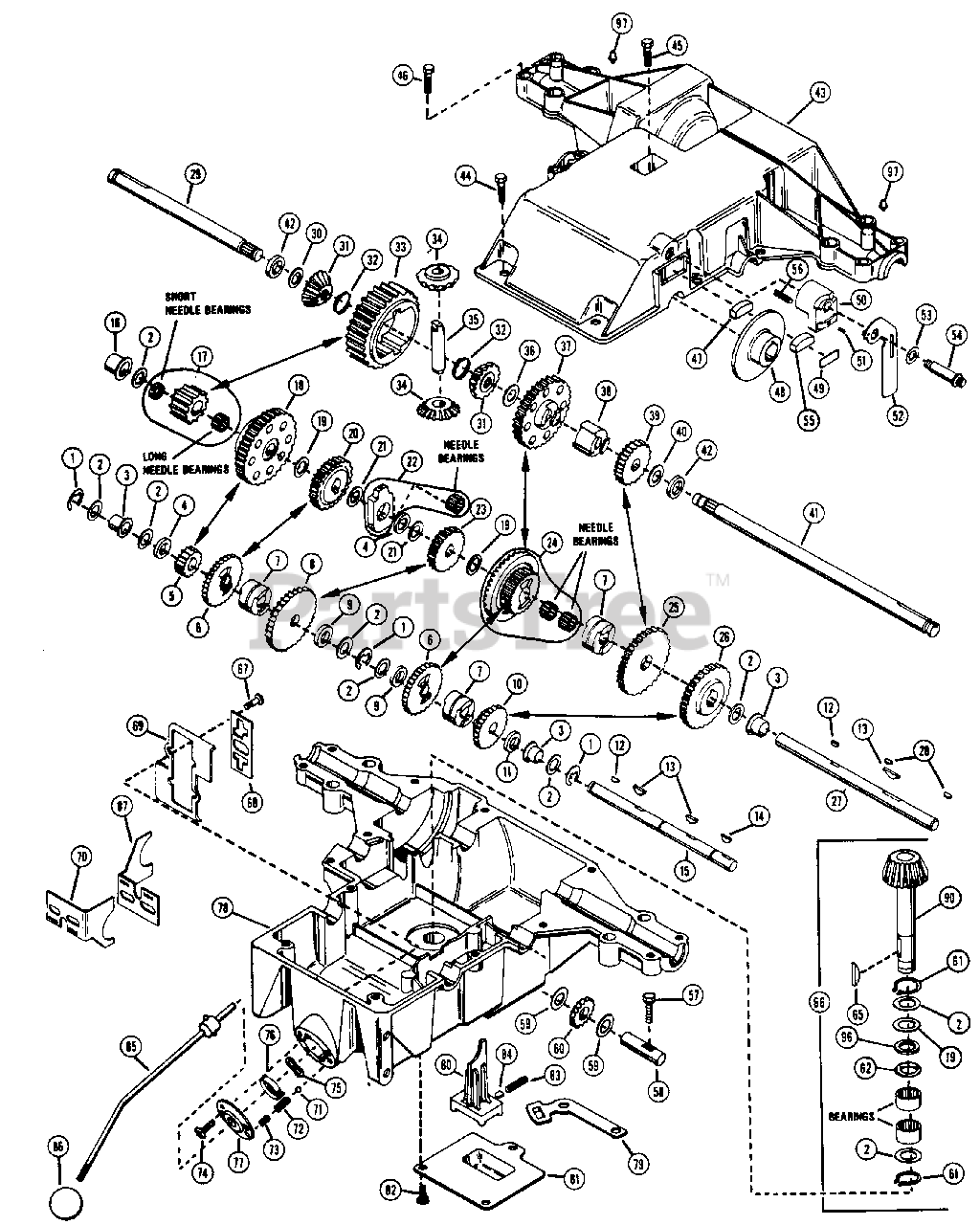

TRANSAXLE PARTS Parts Diagram

  • Title

1

Gravely 036372

SNAP RING
(Superseded to 05708300)

$0.99

$

In Stock, Qty 20+

0

2

Gravely 036460

SHIM KIT
(Superseded to 53506400)

$

$

Not available

3

Gravely 036374

FLANGE BUSHING
(Superseded to 03512100)

$

$

Not available

4

Gravely 036375

SPACER
(Superseded to 03512200)

$

$

Not available

5

Gravely 036376

SPUR GEAR 13T
(Superseded to 03512300)

$

$

Not available

6

Gravely 036377

SPUR GEAR 25T
(Superseded to 03512400)

$

$

Not available

7

Gravely 036378

CLUTCH COLLAR
(Superseded to 03512500)

$

$

Not available

8

Gravely 036379

SPUR GEAR 30T
(Superseded to 03512600)

$

$

Not available

9

Gravely 036380

SPACER
(Superseded to 03512700)

$

$

Not available

10

Gravely 036381

SPUR GEAR 20T
(Superseded to 03512800)

$

$

Not available

11

Gravely 036382

WASHER .020
(Superseded to 03535300)

$

$

Not available

12

Gravely 124543

KEY, WOODRUFF .125X.50 HRD #3
(Superseded to 06608300)

$2.49

$

In Stock, Qty 20+

0

13

Gravely 036384

HI-PRO KEY
(Superseded to 06604100)

$

$

Not available

14

Gravely 431787

KEY, WOODRUFF .187X.625 HRD #61
(Superseded to 06609300)

$2.99

$

In Stock, Qty 11

0

15

Gravely 036386

INTERMEDIATE SHAFT
(Superseded to 03512900)

$

$

Not available

16

Gravely 036387

FLANGE BEARING
(Superseded to 03513000)

$

$

Not available

17

Gravely 036388

GEAR ASSEMBLY 12T

$

$

Not available

18

Gravely 036389

SPUR GEAR 37T

$

$

Not available

19

Gravely 036461

WASHER, .045 THICK
(Superseded to 53506400)

$

$

Not available

20

Gravely 036391

SPUR GEAR 25T
(Superseded to 03513400)

$

$

Not available

21

Gravely 036392

WASHER .025
(Superseded to 03525400)

$

$

Not available

22

Gravely 036393

SHAFT SUPPORT ASSEMBLY
(Superseded to 53500200)

$

$

Not available

23

Gravely 036394

SPUR GEAR 20T
(Superseded to 03513600)

$

$

Not available

24

Gravely 036395

BEVEL GEAR ASSEMBLY
(Superseded to 53500300)

$

$

Not available

25

Gravely 036396

SPUR GEAR 33T
(Superseded to 03513800)

$

$

Not available

26

Gravely 036397

SPUR GEAR 30T
(Superseded to 03513900)

$

$

Not available

27

Gravely 036398

DRIVE SHAFT
(Superseded to 03514000)

$

$

Not available

28

Gravely 036399

WOODRUFF KEY
(Superseded to 06603900)

$

$

Not available

29

Gravely 036400

L. H. AXLE
(Superseded to 53507000)

$

$

Not available

30

Gravely 036401

SHIM KIT
(Superseded to 53506500)

$

$

Not available

31

Gravely 036402

SPLINED MITER GEAR 15T

$

$

Not available

32

Gravely 036403

SNAP RING

$

$

Not available

33

Gravely 036404

SPUR GEAR 32T
(Superseded to 53507300)

$

$

Not available

34

Gravely 036405

MITER GEAR 15T

$

$

Not available

35

Gravely 036406

CROSS SHAFT
(Superseded to 53507400)

$

$

Not available

36

Gravely 036407

WASHER .031
(Superseded to 06413400)

$3.49

$

In Stock, only 2 left!

0

37

Gravely 036408

SPUR GEAR 35T
(Superseded to 03514600)

$

$

Not available

38

Gravely 036409

GEAR LOCK
(Superseded to 03514700)

$

$

Not available

39

Gravely 036410

SPUR GEAR 22T
(Superseded to 03514800)

$

$

Not available

40

Gravely 131018

WASHER, FLAT .938X1.750X.134
(Superseded to 21053300)

$

$

Not available

41

Gravely 036412

R. H. AXLE
(Superseded to 03560100)

$

$

Not available

42

Gravely 036413

FELT SEAL
(Superseded to 05610300)

$

$

Not available

43

Gravely 036414

LOWER HOUSING
(Superseded to 53505300)

$

$

Not available

44

Gravely 180021

BOLT, HEX 1/4-20X.875
(Superseded to 05934000)

$1.99

$

Usually ships in 4-12 days

0

45

Gravely 036416

MACHINE SCREW #12-24X.625

$

$

Not available

46

Gravely 180024

BOLT, HEX 1/4-20X1.25
(Superseded to 05901738)

$1.99

$

In Stock, Qty 5

0

47

Gravely 036418

FRICTION PUCK(INNER)
(Superseded to 03525300)

Note: (INNER)

$

$

Not available

48

Gravely 036419

BRAKE DISC
(Superseded to 53502000)

$

$

Not available

49

Gravely 036420

SPACER
(Superseded to 03525600)

$5.99

$

Usually ships in 4-12 days

0

50

Gravely 036421

BRAKE JAW ASSEMBLY
(Superseded to 53500400)

$

$

Not available

51

Gravely 036288

SETSCREW, NO. 8-32
(Superseded to 06003500)

$

$

Not available

52

Gravely 036267

LEVER, ACTUATING ASSEMBLY
(Superseded to 53500500)

$

$

Not available

53

Gravely 036424

WASHER
(Superseded to 06417700)

$

$

Not available

54

Gravely 036425

SHOULDER BOLT
(Superseded to 03515700)

$

$

Not available

55

Gravely 036270

PUCK, FRICTION
(Superseded to 03524900)

$35.99

$

Usually ships in 4-12 days

0

56

Gravely 036427

COMPRESSION SPRING
(Superseded to 08318000)

$

$

Not available

57

Gravely 436737

SCREW, MACH. 10-24X1.25 PHD

$

$

Not available

58

Gravely 036429

IDLER SHAFT
(Superseded to 03515800)

$

$

Not available

59

Gravely 036430

WASHER .020 THICK
(Superseded to 06417800)

$

$

Not available

60

Gravely 036431

IDLER GEAR ASSEMBLY
(Superseded to 53500600)

$

$

Not available

61

Gravely 036432

SNAP RING
(Superseded to 05711900)

$0.99

$

In Stock, Qty 20+

0

62

Gravely 036433

"O" RING
(Superseded to 05610400)

$

$

Not available

65

Gravely 106751

KEY, WOODRUFF 3/16X3/4 #9
(Superseded to 06600300)

$1.49

$

In Stock, Qty 12

0

66

Gravely 036435

INPUT SHAFT ASSEMBLY
(Superseded to 53500800)

$

$

Not available

67

Gravely 181566

BOLT, HEX 1/4-28X.75
(Superseded to 05952300)

$1.99

$

Usually ships in 4-12 days

0

68

Gravely 036437

LOCKOUT PLATE
(Superseded to 03513700)

$

$

Not available

69

Gravely 036438

FORK SUPPORT PLATE
(Superseded to 03515400)

$

$

Not available

70

Gravely 036439

SHIFTER FORK
(Superseded to 03515600)

$

$

Not available

71

Gravely 036440

DETENT BALL
(Superseded to 03513500)

$3.49

$

Usually ships in 4-12 days

0

72

Gravely 036441

DETENT SPRING
(Superseded to 08318200)

$

$

Not available

73

Gravely 102570

SCREW, SET 1/4-20X.375 H/SCK
(Superseded to 06000800)

$

$

Not available

74

Gravely 159920

SCREW, MACHINE 10-24X.50
(Superseded to 06113000)

$1.99

$

In Stock, Qty 5

0

75

Gravely 036444

WAVE WASHER
(Superseded to 03515000)

$

$

Not available

76

Gravely 036445

NYLON INSERT
(Superseded to 03515500)

$

$

Not available

77

Gravely 036261

COVER
(Superseded to 03516400)

$20.99

$

Usually ships in 4-12 days

0

78

Gravely 036447

UPPER HOUSING

$

$

Not available

79

Gravely 036262

HI-LO SHIFT LEVER
(Superseded to 03516100)

$

$

Not available

80

Gravely 036449

HI-LO SHIFTER FORK ASSEMBLY
(Superseded to 53502400)

$

$

Not available

81

Gravely 036450

HI-LO COVER PLATE
(Superseded to 03516300)

$

$

Not available

82

Gravely 155886

SCREW, MACH. 8-32X.50
(Superseded to 21056500)

$

$

Not available

83

Gravely 036452

DETENT SPRING
(Superseded to 08318100)

$

$

Not available

84

Gravely 036453

DETENT PIN
(Superseded to 03516500)

$

$

Not available

85

Gravely 036454

SHIFT LEVER ASSEMBLY
(Superseded to 53500700)

$

$

Not available

86

Gravely 036061

SHIFT KNOB
(Superseded to 20069800)

$22.99

$

Usually ships in 4-12 days

0

87

Gravely 036456

SHIFTER FORK
(Superseded to 03515900)

$

$

Not available

90

Gravely 037051

PINION AND SHAFT ASSEMBLY
(Superseded to 03513100)

$

$

Not available

96

Gravely 036462

WASHER .040 THICK
(Superseded to 53506400)

$

$

Not available

97

Gravely 411027

FITTING, LUBE 1/4-28
(Superseded to 07012600)

$

$

Not available
