935010 (1138-G) - Gravely 38" Lawn Tractor, 11hp Briggs & Stratton, Gear Drive (SN: 000101 & Above) FUEL SYSTEM AND ELECTRICAL SYSTEM Parts Diagram

38" Lawn Tractor, 11hp Briggs & Stratton, Gear Drive

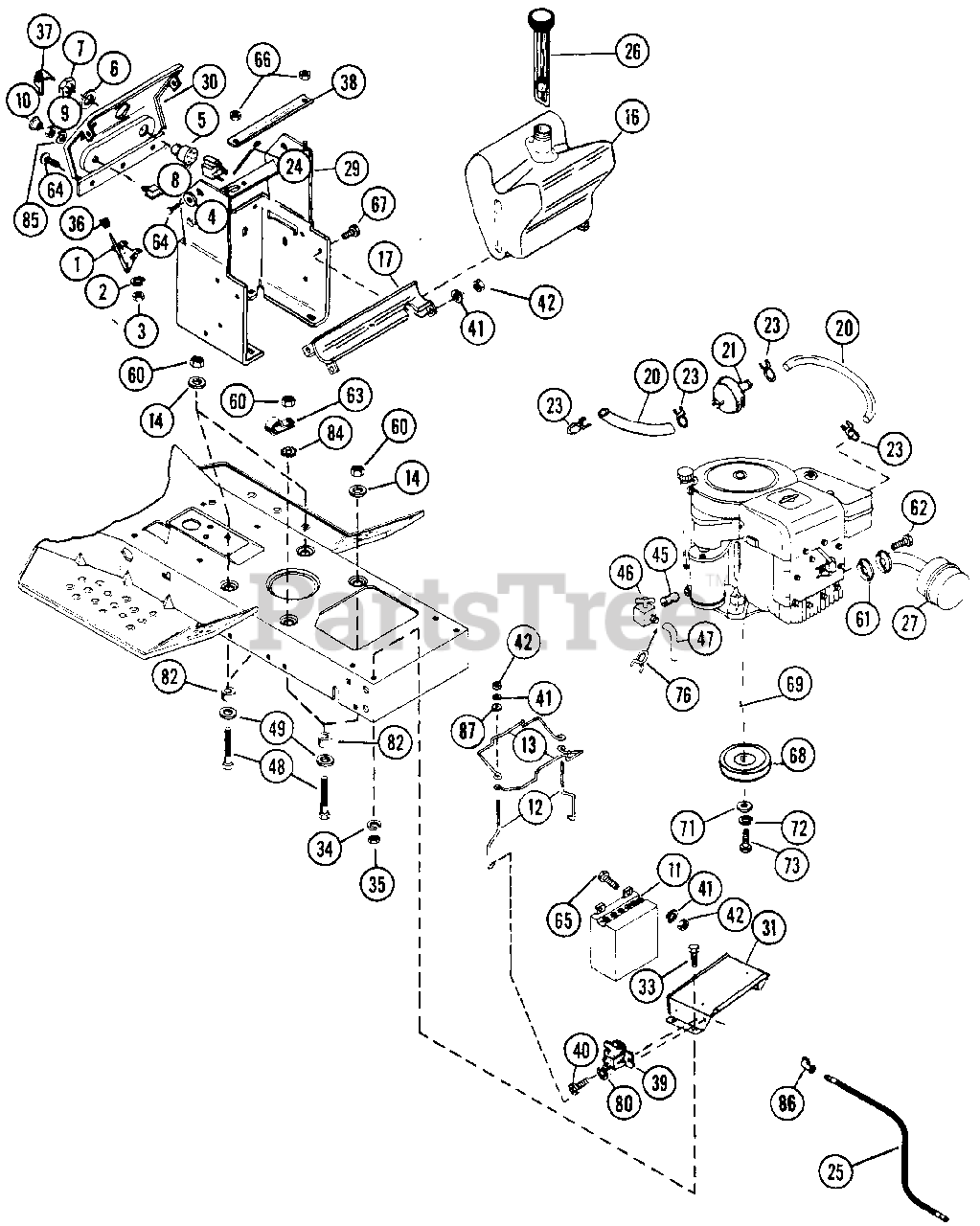

FUEL SYSTEM AND ELECTRICAL SYSTEM Parts Diagram

  • Title

1

Gravely 036292

THROTTLE CONTROL
(Superseded to 06912600)

$

$

Not available

2

Gravely 120217

WASHER, LOCK NO. 10 SP.
(Superseded to 21049900)

$

$

Not available

3

Gravely 036506

NUT
(Superseded to 06505500)

$

$

Not available

4

Gravely 446179

WASHER, FLAT .250X.500X.049
(Superseded to 21071000)

$

$

Not available

5

Gravely 020564

IGNITION SWITCH
(Superseded to 53507600)

$

$

Not available

6

Gravely 019667

WASHER, LOCK INT. TOOTH
(Superseded to 06310900)

$2.49

$

In Stock, only 2 left!

0

7

Gravely 019666

NUT, JAM 9/16-24
(Superseded to 20287700)

$3.99

$

In Stock, only 1 left!

0

8

Gravely 036117

LIGHT SWITCH
(Superseded to 51513800)

$

$

Not available

9

Gravely 120371

NUT, HEX 1/2-20
(Superseded to 21050100)

$

$

Not available

10

Gravely 036301

KNOB
(Superseded to 07506800)

$5.99

$

Usually ships in 4-12 days

0

11

Gravely 030610

BATTERY, 12 VOLT SMALL

$

$

Not available

12

Gravely 040117

TIE DOWN
(Superseded to 03550600)

$

$

Not available

13

Gravely 039629

HOLD DOWN
(Superseded to 03057800)

$

$

Not available

14

Gravely 120386

WASHER, FLAT .312X.734X.065
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 036307

FUEL TANK
(Superseded to 03563700)

$

$

Not available

17

Gravely 036308

LOWER TANK SUPPORT
(Superseded to 03539300)

$

$

Not available

20

Gravely 036309

HOSE
(Superseded to 20630500)

$

$

Not available

21

Gravely 036310

FUEL FILTER
(Superseded to 02910800)

$7.49

$

Usually ships in 4-12 days

0

23

Gravely 036312

HOSE CLAMP
(Superseded to 06939100)

$3.99

$

In Stock, Qty 10

0

24

Gravely 036313

TIE DOWN
(Superseded to 07517300)

$

$

Not available

25

Gravely 036115

CABLE, BATTERY TO ENGINE BASE
(Superseded to 03537000)

$

$

Not available

26

Gravely 036315

FUEL GAUGE
(Superseded to 03507600)

$

$

Not available

27

Gravely 036316

EXHAUST MUFFLER
(Superseded to 03511200)

$

$

Not available

29

Gravely 036498

DASH BASE
(Superseded to 53507100)

$

$

Not available

30

Gravely 036318

DASH
(Superseded to 03539000)

$

$

Not available

31

Gravely 036319

BATTERY STAND
(Superseded to 03500400)

$

$

Not available

33

Gravely 180075

BOLT, HEX 5/16-18X.625
(Superseded to 05901832)

$

$

Not available

34

Gravely 131099

WASHER, LOCK 3/8 SP HEAVY
(Superseded to 06300120)

$3.49

$

In Stock, only 3 left!

0

35

Gravely 120376

NUT, HEX 5/16-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

36

Gravely 036324

KNOB
(Superseded to 07501900)

$

$

Not available

37

Gravely 018570

KEY, IGNITION SWITCH
(Superseded to 02460700)

$7.99

$

In Stock, Qty 20+

0

38

Gravely 036326

CLAMP, STRAP
(Superseded to 03507400)

$

$

Not available

39

Gravely 036111

SOLENOID
(Superseded to 53504000)

$73.99

$

Usually ships in 4-12 days

0

40

Gravely 039075

SCREW, TAPTITE 1/4-20X.375
(Superseded to 07400125)

$0.99

$

In Stock, Qty 20+

0

41

Gravely 120380

WASHER, LOCK 1/4 REG.
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

42

Gravely 120375

NUT, HEX 1/4-20
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

45

Gravely 036332

BUSHING
(Superseded to 03493100)

$5.99

$

Usually ships in 4-12 days

0

46

Gravely 036333

DRAIN LOCK
(Superseded to 03510500)

$

$

Not available

47

Gravely 036335

TUBE
(Superseded to 03510100)

$

$

Not available

48

Gravely 180087

BOLT, HEX 5/16-18X2.00
(Superseded to 05901805)

$1.49

$

In Stock, Qty 20+

0

49

Gravely 036337

WASHER, 5/16X1-5/8X.135
(Superseded to 06409900)

$

$

Not available

60

Gravely 413447

NUT, LOCK 5/16-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

61

Gravely 036343

GASKET
(Superseded to 03506300)

$5.99

$

Usually ships in 4-12 days

0

62

Gravely 180077

BOLT, HEX 5/16-18X.75
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

63

Gravely 036518

J-CLAMP
(Superseded to 06909400)

$3.49

$

In Stock, Qty 5

0

64

Gravely 036346

TAPPING SCREW, 10-16X3/8
(Superseded to 07407300)

$

$

Not available

65

Gravely 180021

BOLT, HEX 1/4-20X.875
(Superseded to 05934000)

$1.99

$

Usually ships in 4-12 days

0

66

Gravely 413314

NUT, LOCK 1/4-20
(Superseded to 21066200)

$

$

Not available

67

Gravely 180016

BOLT, HEX 1/4-20X.50
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

68

Gravely 036350

SHEAVE, ENGINE
(Superseded to 03550900)

$

$

Not available

69

Gravely 040119

KEY, STRAIGHT 1/4X2X1/4
(Superseded to 06607100)

$

$

Not available

71

Gravely 120389

WASHER, FLAT .500X1.250X.083
(Superseded to 06441000)

$2.99

$

In Stock, Qty 6

0

72

Gravely 131100

WASHER, LOCK SP HEAVY
(Superseded to 06310700)

$2.99

$

Usually ships in 4-12 days

0

73

Gravely 181666

BOLT, HEX 7/16-20X1
(Superseded to 05937400)

$

$

Not available

76

Gravely 036358

HOSE CLAMP
(Superseded to 03019900)

$

$

Not available

79

Gravely 036520

CLIP
(Superseded to 06911000)

$

$

Not available

80

Gravely 121753

WASHER, LOCK 1/4 EXT.
(Superseded to 21051100)

$

$

Not available

82

Gravely 036363

ENGINE SPACER
(Superseded to 03506200)

$

$

Not available

84

Gravely 138485

WASHER, LOCK 5/16 EXT TH TYA
(Superseded to 06303200)

$2.49

$

Usually ships in 4-12 days

0

85

Gravely 036366

WASHER
(Superseded to 06436500)

$2.49

$

In Stock, only 2 left!

0

86

Gravely 033847

BOOT, BATTERY CABLE
(Superseded to 03384700)

$

$

Not available

87

Gravely 422845

WASHER, FLAT .281X.625X.065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

Gravely 138538

WASHER, LOCK 5/16 INT. TOOTH
(Superseded to 06310500)

$0.99

$

In Stock, only 3 left!

0

Gravely 124920

NUT, JAM 5/16-24 HEX
(Superseded to 06500923)

$0.99

$

In Stock, Qty 13

0

Gravely 120217

WASHER, LOCK NO. 10 SP
(Superseded to 21049900)

$

$

Not available

Gravely 453284

NUT, HEX 10-32
(Superseded to 06502600)

$

$

Not available
