935008 (LT 832) - Ariens Sierra 32" Yard Tractor, 8hp Tecumseh, Gear (SN: 000101 & Above) Electrical Diagram Parts Diagram

Sierra 32" Yard Tractor, 8hp Tecumseh, Gear

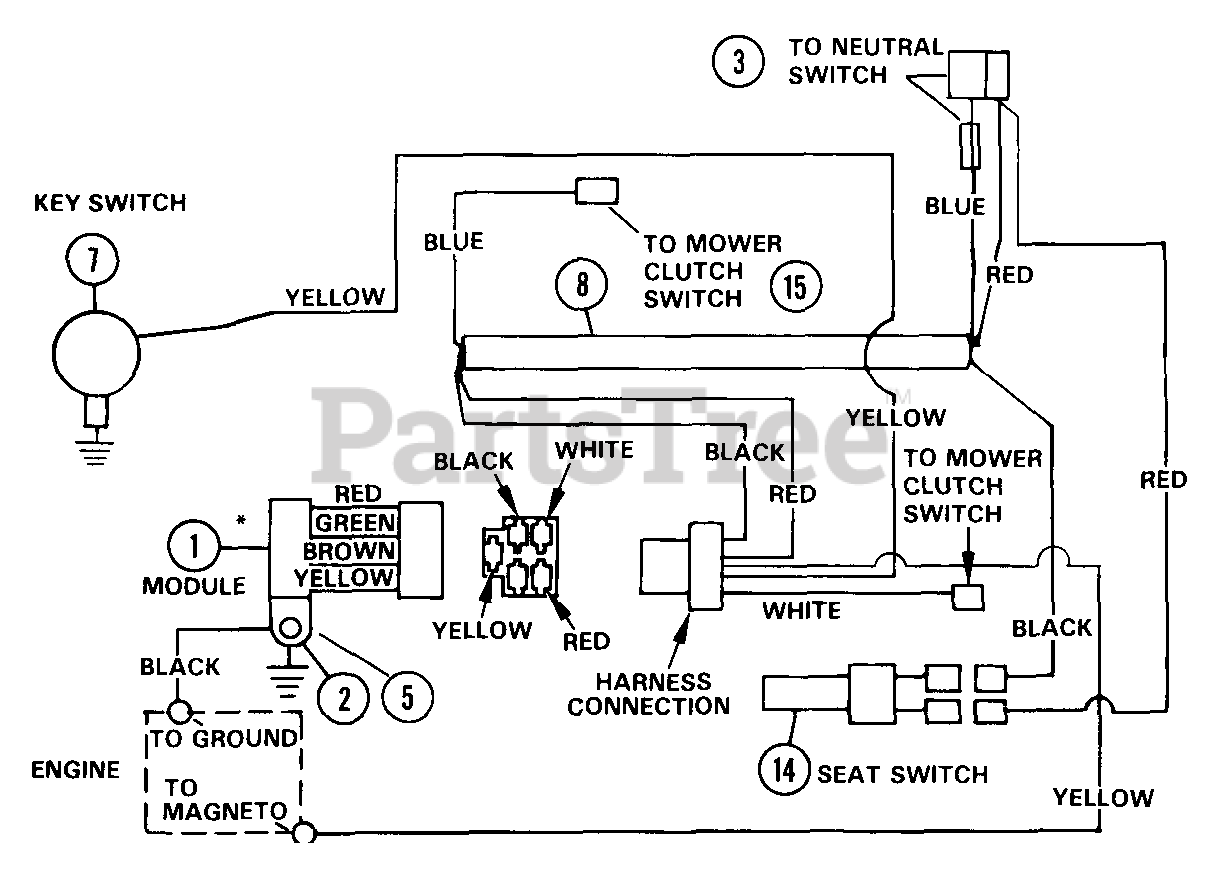

Electrical Diagram Parts Diagram

  • Title
1

Ariens 02723700

MODULE
(Superseded to 52707800)

$

$

Not available

2

Ariens 06101700

SCR-MCH 10-24X.62 SLRH PL

$

$

Not available

3

Ariens 02913100

SWITCH-NEUTRAL START N.O.

$45.99

$

In Stock, Qty 7

0

5

Ariens 06505100

NUT-KEPS 10-24 PL
(Superseded to 06536600)

$0.99

$

In Stock, Qty 5

0

7

Ariens 63505900

IGNITION SWITCH AND KEY ASSEMB
(Superseded to 53507600)

$

$

Not available

8

Ariens 03534300

WIRE HARNESS

$

$

Not available

11

Ariens 01315700

KEYS
(Superseded to 02460700)

$7.99

$

In Stock, Qty 20+

0

14

Ariens 03171600

SWITCH SEAT

$

$

Not available

15

Ariens 02707800

SWITCH INTERLOCK

$17.99

$

Usually ships in 4-12 days

0
