935005 (YT 1132) - Ariens Sierra 32" Yard Tractor, 11hp Briggs & Stratton, Gear (SN: 003501 - 004499) Electrical Diagram For S/N Up To 003501 Parts Diagram

Sierra 32" Yard Tractor, 11hp Briggs & Stratton, Gear

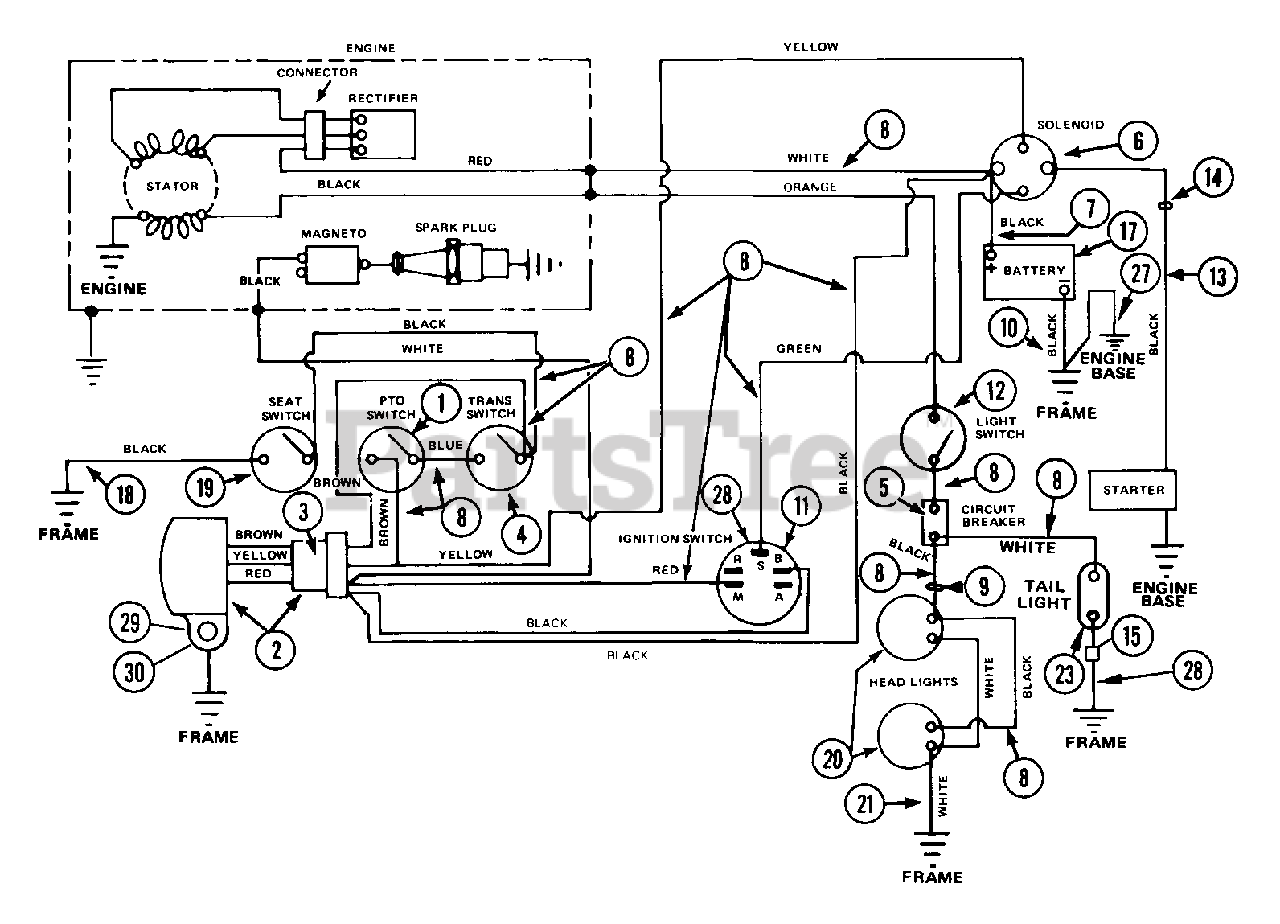

Electrical Diagram For S/N Up To 003501 Parts Diagram

  • Title
1

Ariens 02707800

SWITCH INTERLOCK

$17.99

$

Usually ships in 4-12 days

0

2

Ariens 03505200

MODULE
(Superseded to 53510500)

Note: (W/CONNECTOR)

$

$

Not available

3

Ariens 02520300

CONNECTOR
(Superseded to 52401000)

Note: (TO MODULE)

$

$

Not available

4

Ariens 02913100

SWITCH-NEUTRAL START N.O.

$45.99

$

In Stock, Qty 7

0

5

Ariens 03110800

CIRCUIT BREAKER

$

$

Not available

6

Ariens 03533500

SOLENOID
(Superseded to 53504000)

$73.99

$

Usually ships in 4-12 days

0

7

Ariens 02902600

GROUND CABLE
(Superseded to 03557600)

$

$

Not available

8

Ariens 03528900

WIRE HARNESS
(Superseded to 03536900)

$

$

Not available

9

Ariens 02920500

CLAMP LOOP

$

$

Not available

10

Ariens 02902600

GROUND CABLE
(Superseded to 03557600)

$

$

Not available

11

Ariens 63505900

IGNITION SWITCH AND KEY ASSEMB
(Superseded to 53507600)

$

$

Not available

12

Ariens 03115100

LIGHT SWITCH
(Superseded to 51513800)

$

$

Not available

13

Ariens 03506400

GROUND CABLE
(Superseded to 03557500)

$

$

Not available

14

Ariens 06905300

TIE DOWN
(Superseded to 07517300)

$

$

Not available

15

Ariens 07510700

WIRE CLIP

$

$

Not available

17

Ariens 02917500

BATTERY
(Superseded to 53123300)

$

$

Not available

18

Ariens 03507500

GROUND WIRE

$

$

Not available

19

Ariens 03171600

SWITCH SEAT

$

$

Not available

20

Ariens 03114900

HEAD LIGHT

$20.99

$

Usually ships in 4-12 days

0

21

Ariens 03522200

GROUND WIRE

$

$

Not available

22

Ariens 03520300

TAIL LIGHT WIRE

$

$

Not available

23

Ariens 63100600

TAIL LIGHT
(Superseded to 53128400)

$119.99

$

Usually ships in 4-12 days

0

23

Ariens 03137500

TAIL LIGHT LENS

$

$

Not available

23

BULB, STANDARD GE 1895

$

$

Not available

27

Ariens 03506400

GROUND CABLE
(Superseded to 03557500)

$

$

Not available

28

Ariens 03528800

GROUND WIRE

$

$

Not available

29

Ariens 06101700

SCR-MCH 10-24X.62 SLRH PL

$

$

Not available

30

Ariens 06505100

NUT-KEPS 10-24 PL
(Superseded to 06536600)

$0.99

$

In Stock, Qty 5

0

30

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

Note: (CABLES TO SOLENOID)

$0.99

$

In Stock, Qty 20+

0

30

Ariens 06510000

NUT-JAM .312-24 PL
(Superseded to 06536700)

Note: (CABLES TO SOLENOID)

$0.99

$

In Stock, Qty 13

0

30

Ariens 06301100

WSHR-LK 10X.047 MED PL
(Superseded to 06308100)

Note: (WIRING TO SOLENOID)

$1.49

$

Usually ships in 4-12 days

0

30

Ariens 06502600

NUT 10-32 PL

Note: (WIRING TO SOLENOID)

$

$

Not available
