935005 (YT 1132) - Ariens Sierra 32" Yard Tractor, 11hp Briggs & Stratton, Gear (SN: 000101 - 002914) Front Axle & Steering Parts Diagram

Sierra 32" Yard Tractor, 11hp Briggs & Stratton, Gear

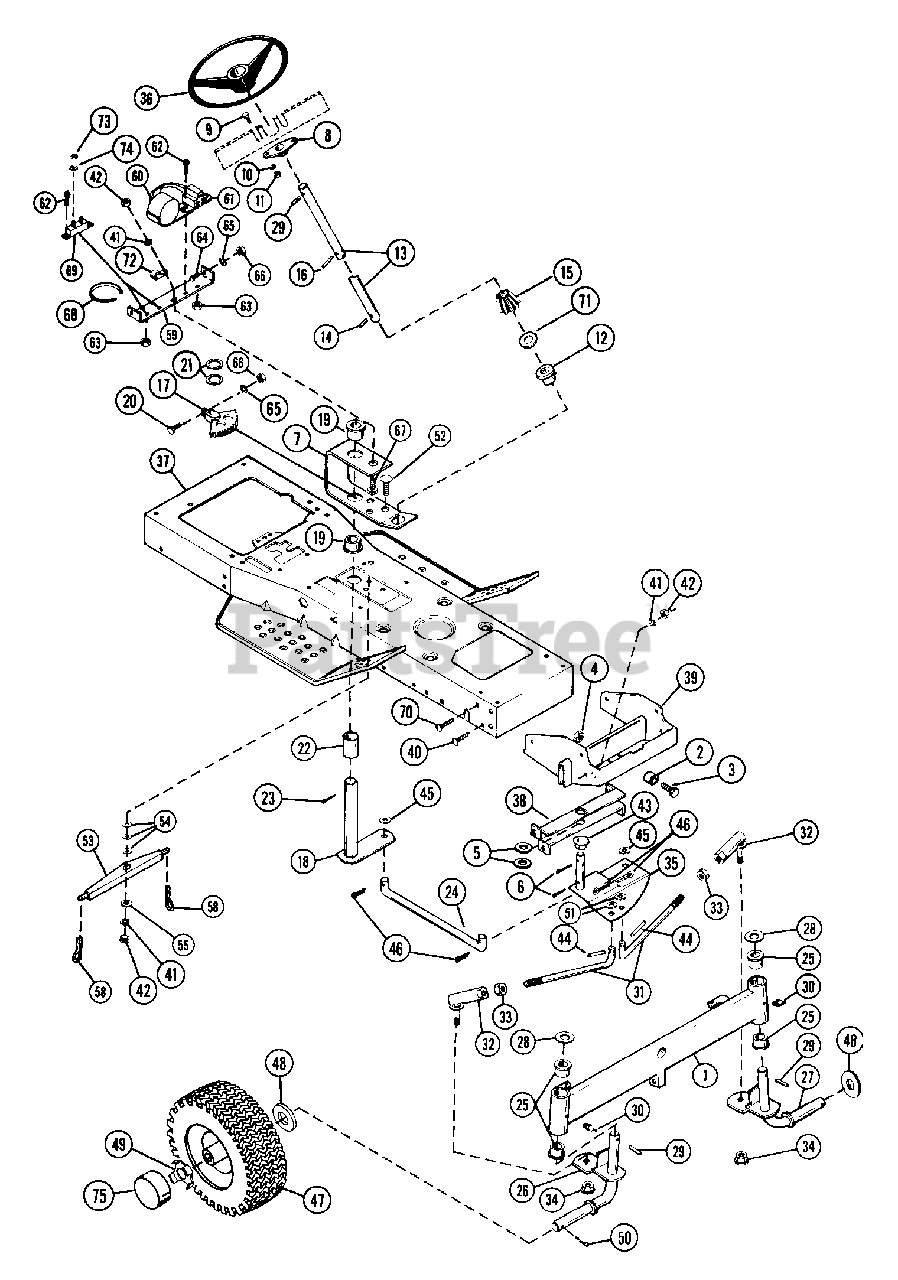

Front Axle & Steering Parts Diagram

  • Title

1

Ariens 53502900

AXLE W/BUSHINGS

$

$

Not available

2

Ariens 03503200

SPACER .531X.748X.524

$

$

Not available

3

Ariens 05914600

BLT-HEX .50-13X1.25 PL GR5
(Superseded to 05958900)

$3.49

$

In Stock, only 1 left!

0

4

Ariens 06512700

NUT-LK-CROWN .50-13 GR C PL
(Superseded to 06528200)

$3.99

$

In Stock, only 3 left!

0

5

Ariens 06400400

WSHR-FL-STL.656X1.312X.095 PL
(Superseded to 06442800)

$2.49

$

In Stock, only 3 left!

0

6

Ariens 06701400

PIN-COTR .12 X 1.25 PL
(Superseded to 06712600)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 03507800

STEERING BRACKET

$

$

Not available

8

Ariens 05402500

BRG-FLG .751X2 HOLESX.81

$23.99

$

Usually ships in 4-12 days

0

9

Ariens 05913500

BLT-HEX .31-18X.75 PL GR5
(Superseded to 05947000)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

11

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

12

Ariens 05508000

BSHG-FLG .750X1.093X.625X1.375

$19.99

$

Usually ships in 4-12 days

0

13

Ariens 03505300

STEERING COLUMN

$

$

Not available

14

Ariens 02913300

PIN .249X1.125 DRIV-LOK SP

$17.99

$

Usually ships in 4-12 days

0

15

Ariens 02902100

PINION GEAR-STEERING

$64.99

$

In Stock, only 1 left!

0

16

Ariens 05802100

PIN-ROLL .188X1.13

$1.99

$

Usually ships in 4-12 days

0

17

Ariens 02901900

STEERING BEVEL GEAR

$

$

Not available

18

Ariens 03505400

ARM & SHAFT

$

$

Not available

19

Ariens 05508300

BSHG-SLV .750X1.000X.750 HX SB

$102.99

$

In Stock, only 2 left!

0

20

Ariens 05907300

BLT-HEX .31-18X1.75 PL GR2
(Superseded to 05957400)

$2.99

$

In Stock, Qty 8

0

21

Ariens 06411100

WSHR-FL-STL .875X1.250X.075

$

$

Not available

22

Ariens 03505500

SPACER .780X.900X2.094

$

$

Not available

23

Ariens 06700600

PIN-COTR .18X1.25 PL
(Superseded to 06712700)

$1.99

$

In Stock, only 3 left!

0

24

Ariens 03521500

STEERING LINK

$6.99

$

Usually ships in 4-12 days

0

25

Ariens 05510200

BSHG-FLG .750X1.000X.750X1.250
(Superseded to 05511200)

$11.99

$

In Stock, Qty 17

0

26

Ariens 03521200

RIGHT SPINDLE WELDMENT

$

$

Not available

27

Ariens 03521300

LEFT SPINDLE WELDMENT

$

$

Not available

28

Ariens 06401700

WSHR-FL-STL .755X1.375X.093
(Superseded to 06441500)

$3.99

$

In Stock, only 4 left!

0

29

Ariens 05800700

PIN-ROLL .250X1.25

$0.99

$

In Stock, Qty 20+

0

30

Ariens 02209300

SPIN DRIVE ZERK FITTING
(Superseded to 07012600)

$

$

Not available

31

Ariens 03503100

DRAG LINK

$

$

Not available

32

Ariens 03112900

BALL JOINT R.H.

$32.99

$

Usually ships in 4-12 days

0

33

Ariens 06504400

NUT-JAM .50-20 PL
(Superseded to 06539500)

$2.49

$

Usually ships in 4-12 days

0

34

Ariens 06512100

NUT-LK .50-20 PL
(Superseded to 06544000)

$5.99

$

Usually ships in 4-12 days

0

35

Ariens 03502500

STEERING PIVOT

$

$

Not available

36

Ariens 01315500

STEERING WHEEL
(Superseded to 53608200)

$

$

Not available

37

Ariens 53502800

FRAME W/DECALS

$

$

Not available

38

Ariens 03500300

STEERING PIVOT CHANNEL
(Superseded to 53510600)

$

$

Not available

39

Ariens 03521000

FRONT AXLE SUPPORT

$

$

Not available

40

Ariens 06201000

BLT-RDHDSQNK .38-16X.75 SHT PL
(Superseded to 06200336)

$2.49

$

In Stock, Qty 20+

0

41

Ariens 06300400

WSHR-LK .375X.115 HVY PL
(Superseded to 06306500)

$3.49

$

In Stock, only 1 left!

0

42

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

In Stock, Qty 20+

0

43

Ariens 01212900

FLANGE BUSHING

$

$

Not available

44

Ariens 05800900

PIN-ROLL .125X1.00

$0.99

$

In Stock, Qty 20+

0

45

Ariens 06400300

WSHR-FL-STL .531X1.062X.095 PL
(Superseded to 06441900)

$0.99

$

In Stock, Qty 20+

0

46

Ariens 06700400

PIN-COTR .12X1.0 PL
(Superseded to 06707100)

$0.99

$

In Stock, Qty 10

0

47

Ariens 63500600

WHEEL & TIRE ASSEMBLY
(Superseded to 07114800)

$

$

Not available

47

Ariens 07102800

TIRE

$

$

Not available

47

Ariens 07112900

WHL

$

$

Not available

47

Ariens 05408900

BRG-BALL .752X1.50X.50

$18.99

$

In Stock, only 3 left!

0

48

Ariens 06401700

WSHR-FL-STL .755X1.375X.093
(Superseded to 06441500)

$3.99

$

In Stock, only 4 left!

0

49

Ariens 03516900

SPINDLE CUP

$19.99

$

In Stock, only 1 left!

0

50

Ariens 06702700

PIN-COTR .25X1.50 ST PL

$

$

Not available

51

Ariens 06418000

WSHR-FL-STL .520X.827X.062 YZ
(Superseded to 06441100)

$2.49

$

In Stock, only 2 left!

0

52

Ariens 06201600

BLT-RDHDSQNK .38-16X1.25 PL
(Superseded to 06224100)

$2.49

$

In Stock, only 3 left!

0

53

Ariens 03516800

PIVOT ARM

$

$

Not available

54

Ariens 06407800

WSHR-FL-STL .380X.626X.033

$

$

Not available

55

Ariens 06404300

WSHR-FL-STL.406X.812X.065PL
(Superseded to 06436200)

$0.99

$

In Stock, Qty 20+

0

58

Ariens 06702000

PIN-HAIR INT .08X.18X1.18
(Superseded to 06713500)

$0.99

$

In Stock, Qty 20+

0

59

Ariens 03505100

BRACE

$

$

Not available

60

Ariens 03505200

MODULE
(Superseded to 53510500)

Note: (Used Only On Model(s): 935003,005).

$

$

Not available

60

Ariens 03521400

MODULE
(Superseded to 53510300)

Note: (Used Only On Model(s): 935004).

$

$

Not available

61

Ariens 02520300

CONNECTOR
(Superseded to 52401000)

$

$

Not available

62

Ariens 06101700

SCR-MCH 10-24X.62 SLRH PL

$

$

Not available

63

Ariens 06505100

NUT-KEPS 10-24 PL
(Superseded to 06536600)

$0.99

$

In Stock, Qty 5

0

64

Ariens 05913500

BLT-HEX .31-18X.75 PL GR5
(Superseded to 05947000)

$1.49

$

In Stock, Qty 20+

0

65

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

66

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

67

Ariens 05900400

BLT-HEX .38-16X1.00 PL
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

68

Ariens 06905300

TIE DOWN
(Superseded to 07517300)

$

$

Not available

69

Ariens 03110800

CIRCUIT BREAKER

$

$

Not available

70

Ariens 06201300

BLT-RDHDSQSHNK .38-16X1.00 PL
(Superseded to 06212000)

$1.49

$

In Stock, Qty 20+

0

71

Ariens 06406200

WSHR-FL-STL .754X1.125X.062 PL
(Superseded to 06441400)

$0.99

$

In Stock, Qty 20+

0

72

Ariens 06911000

CLIP

$

$

Not available

73

Ariens 06502600

NUT 10-32 PL

$

$

Not available

74

Ariens 06301100

WSHR-LK 10X.047 MED PL
(Superseded to 06308100)

$1.49

$

Usually ships in 4-12 days

0

75

Ariens 00337700

HUB CAP

$2.99

$

In Stock, Qty 20+

0
