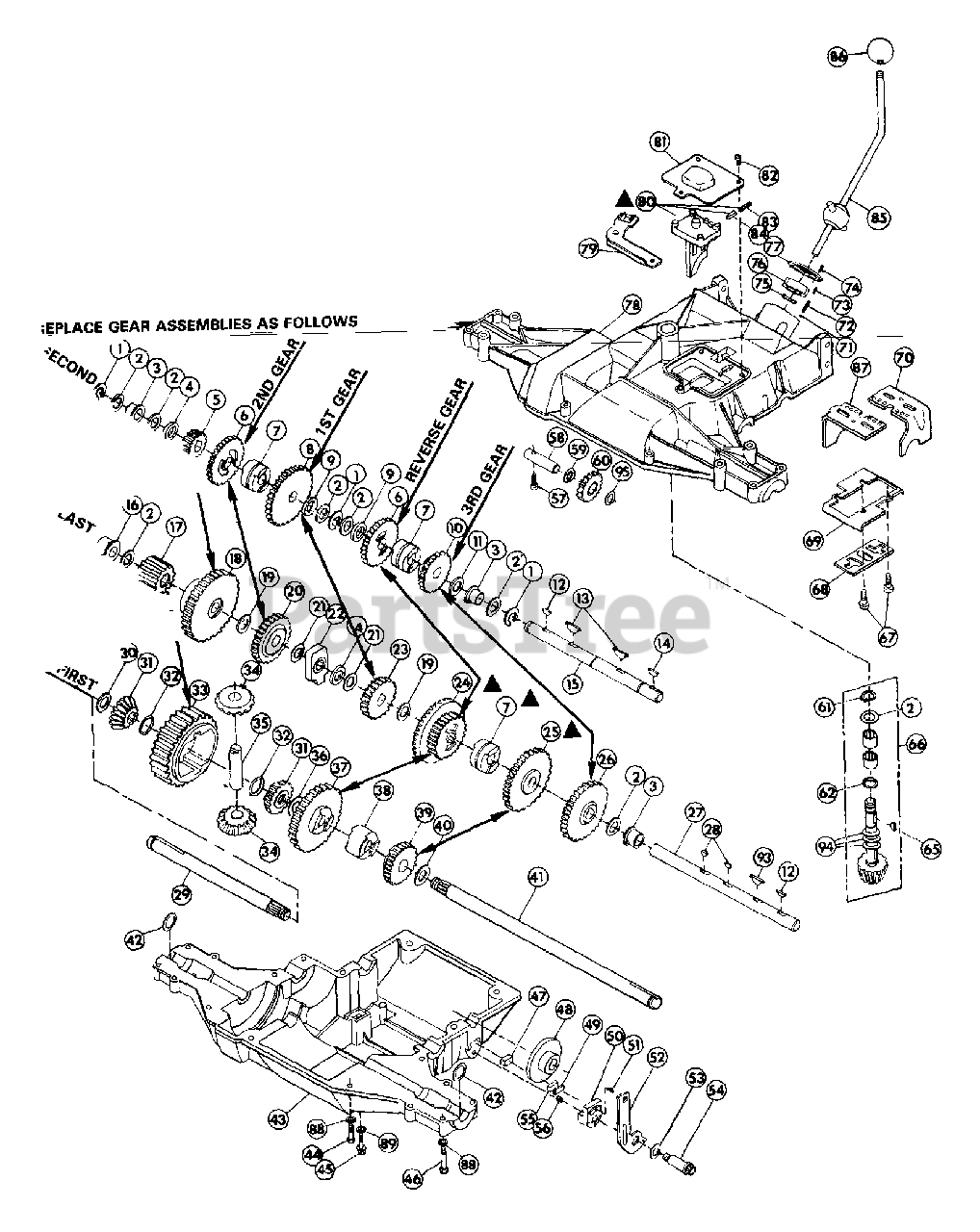

935004 (YT 832) - Ariens Sierra 32" Yard Tractor, 8hp Tecumseh, Gear (SN: 000101 - 000900) Transaxle Parts Parts Diagram

Sierra 32" Yard Tractor, 8hp Tecumseh, Gear

Transaxle Parts Parts Diagram

  • Title

1

Ariens 05708300

RG-RTNG-EXT .625X.042

$0.99

$

In Stock, Qty 20+

0

2

Ariens 53501100

SHIM KIT
(Superseded to 53506400)

Note: (WASHERS)

$

$

Not available

3

Ariens 03512100

FLANGE BEARING

$

$

Not available

4

Ariens 03512200

SPACER .630X1.000X.110

$

$

Not available

5

Ariens 03512300

SPUR GEAR 13T

$

$

Not available

6

Ariens 03512400

SPUR GEAR 25T

$

$

Not available

7

Ariens 03512500

CLUTCH COLLAR

$

$

Not available

8

Ariens 03512600

SPUR GEAR 30T

$

$

Not available

9

Ariens 03512700

SPACER .633X1.00X.260

$

$

Not available

10

Ariens 03512800

SPUR GEAR 20T

$

$

Not available

11

Ariens 03512000

WASHER
(Superseded to 53506400)

$

$

Not available

12

Ariens 06600600

KEY-WDRF .125X.500X.203 SAE 3

$1.49

$

Usually ships in 4-12 days

0

13

Ariens 06604100

KEY-FTHR .188X1X.297

$

$

Not available

14

Ariens 06601400

KEY-WDRF .188X.625X.25 SAE 61

$2.49

$

In Stock, Qty 6

0

15

Ariens 03512900

INTERMEDIATE SHAFT

$

$

Not available

16

Ariens 03513000

FLANGE BEARING

$

$

Not available

17

Ariens 53500100

GEAR ASSY 12T
(Superseded to 53504900)

$

$

Not available

18

Ariens 03513200

SPUR GEAR 37T
(Superseded to 53504900)

$

$

Not available

19

Ariens 03511500

WASHER
(Superseded to 53506400)

$

$

Not available

20

Ariens 03513400

SPUR GEAR 25T

$

$

Not available

21

Ariens 03525400

WASHER

$

$

Not available

22

Ariens 53500200

SHAFT SUPPORT ASSY

$

$

Not available

23

Ariens 03513600

SPUR GEAR 20T

$

$

Not available

24

Ariens 53500300

BEVEL GEAR ASSY

$

$

Not available

25

Ariens 03513800

SPUR GEAR 33T

$

$

Not available

26

Ariens 03513900

SPUR GEAR 30T

$

$

Not available

27

Ariens 03514000

DRIVE SHAFT

$

$

Not available

28

Ariens 06603900

KEY-WDRF FOOTE #3311

$

$

Not available

29

Ariens 03514100

L H AXLE
(Superseded to 53507000)

$

$

Not available

30

Ariens 53501000

SHIM KIT
(Superseded to 53506500)

$

$

Not available

31

Ariens 03514200

SPLINED MITER GEAR 15T

$

$

Not available

32

Ariens 05708700

RG-RTNG-EXT .625X.035

$5.99

$

Usually ships in 4-12 days

0

33

Ariens 03514300

SPUR GEAR 32T
(Superseded to 53507300)

$

$

Not available

34

Ariens 03514400

MITER GEAR 15T
(Superseded to 53507000)

$

$

Not available

35

Ariens 03514500

CROSS SHAFT
(Superseded to 53507400)

$

$

Not available

36

Ariens 06413400

WSHR-HDND-THRST .758X1.23X.031

$3.49

$

In Stock, only 2 left!

0

37

Ariens 03514600

SPUR GEAR 35T

$

$

Not available

38

Ariens 03514700

GEAR LOCK

$

$

Not available

39

Ariens 03514800

SPUR GEAR 22T

$

$

Not available

40

Ariens 06415800

WSHR-FL-STL .760X1.250X.060 PL

$

$

Not available

41

Ariens 03514900

R H AXLE
(Superseded to 53507000)

$

$

Not available

42

Ariens 05610300

SEAL J.B.FOOTE #5130

$

$

Not available

43

Ariens 03515100

LOWER HOUSING
(Superseded to 53505300)

$

$

Not available

44

Ariens 05913200

BLT-HEX .25-20X1.00 GR2
(Superseded to 05947700)

$1.49

$

In Stock, Qty 9

0

45

Ariens 06105600

SCR-MCH 12-24X.62 HEXWH
(Superseded to 06120000)

$3.99

$

Usually ships in 4-12 days

0

46

Ariens 05905000

BLT-HEX .25-20X1.50 PL GR5
(Superseded to 05952500)

$1.49

$

In Stock, Qty 20+

0

47

Ariens 03525300

BRAKE JAW FRICTION PUCK

Note: (INNER)

$

$

Not available

48

Ariens 03515300

BRAKE DISC
(Superseded to 53502000)

$

$

Not available

49

Ariens 03525600

SPACER - FLAT .045 THICK

$5.99

$

Usually ships in 4-12 days

0

50

Ariens 53500400

BRAKE JAW ASSY

$

$

Not available

51

Ariens 06003500

SCR-SET 8-32 FOOTE 1606

$

$

Not available

52

Ariens 53500500

ACTUATING LEVER ASSY

$

$

Not available

53

Ariens 53500900

SHIM KIT
(Superseded to 06417700)

$

$

Not available

54

Ariens 03515700

SHOULDER BOLT

$

$

Not available

55

Ariens 03524900

FRICTION PAD

Note: (OUTER)

$35.99

$

Usually ships in 4-12 days

0

56

Ariens 08318000

SG-COMP J.B. FOOTE

$

$

Not available

57

Ariens 06103500

SCR-MCH 10-24X1.00 HEX PL
(Superseded to 05960800)

$3.99

$

Usually ships in 4-12 days

0

58

Ariens 03515800

IDLER SHAFT

$

$

Not available

59

Ariens 06417800

WSHR-FL-STL .505X1.000X.020

$

$

Not available

60

Ariens 53500600

IDLER GEAR ASSY

$

$

Not available

61

Ariens 05708400

RG-RTNG-EXT .625X.035
(Superseded to 05711900)

$0.99

$

In Stock, Qty 20+

0

62

Ariens 05610400

O-RING .612X.805X.102

$

$

Not available

65

Ariens 06600300

KEY-WDRF .188X.75X.313 SAE 9

$1.49

$

In Stock, Qty 12

0

66

Ariens 53500800

INPUT SHAFT ASSY KIT

$

$

Not available

67

Ariens 05901500

BLT-HEX .25-28X.75 PL GR5
(Superseded to 05952300)

$1.99

$

Usually ships in 4-12 days

0

68

Ariens 03513700

LOCK-OUT PLATE

$

$

Not available

69

Ariens 03515400

FORK PLATE SUPPORT

$

$

Not available

70

Ariens 03515600

SHIFTER FORK

$

$

Not available

71

Ariens 03513500

DETENT BALL

$3.49

$

Usually ships in 4-12 days

0

72

Ariens 08318200

SG-COMP ??X??X?? FOOTE

$

$

Not available

73

Ariens 06000800

SCR-SET .25-20X.38 SKHCUP OH

$

$

Not available

74

Ariens 06104000

SCR-MCH 10-24X.50 SLTR PL

$3.99

$

Usually ships in 4-12 days

0

75

Ariens 03515000

WAVE WASHER .760X1.062X.105FH

$

$

Not available

76

Ariens 03515500

NYLON INSERT

$

$

Not available

77

Ariens 03516400

NYLON COVER

$20.99

$

Usually ships in 4-12 days

0

78

Ariens 03516000

UPPER HOUSING

$

$

Not available

79

Ariens 03516100

HI-LO SHIFT LEVER

$

$

Not available

80

Ariens 53502400

SELECTOR FORK KIT

$

$

Not available

81

Ariens 03516300

HI-LO COVER PLATE

$

$

Not available

82

Ariens 06104300

SCR-MCH 8-32X.50 SLTR PL

$

$

Not available

83

Ariens 08318100

SG-COMP .035X.186X.702

$

$

Not available

84

Ariens 03516500

DETENT PIN

$

$

Not available

85

Ariens 53500700

SHIFT LEVER ASSY

$

$

Not available

86

Ariens 07500100

SHIFT BALL
(Superseded to 07505200)

$20.99

$

In Stock, only 1 left!

0

87

Ariens 03515900

SHIFTER FORK

$

$

Not available

88

Ariens 06300200

WSHR-LK .250X.077 HVY PL
(Superseded to 06308000)

$

$

Not available

89

Ariens 06302400

WSHR-LK-EXT 12X.025 PL

$

$

Not available

93

Ariens 06603800

KEY-FTHR FOOTE #3068
(Superseded to 06604100)

$

$

Not available

94

Ariens 53501100

SHIM KIT
(Superseded to 53506400)

$

$

Not available

95

Ariens 03525700

WASHER .030 THK

$

$

Not available

95

Ariens 06417800

WSHR-FL-STL .505X1.000X.020

$

$

Not available

Ariens 53502500

SELECTOR, FORK, GEAR, & COLLAR

$

$

Not available
