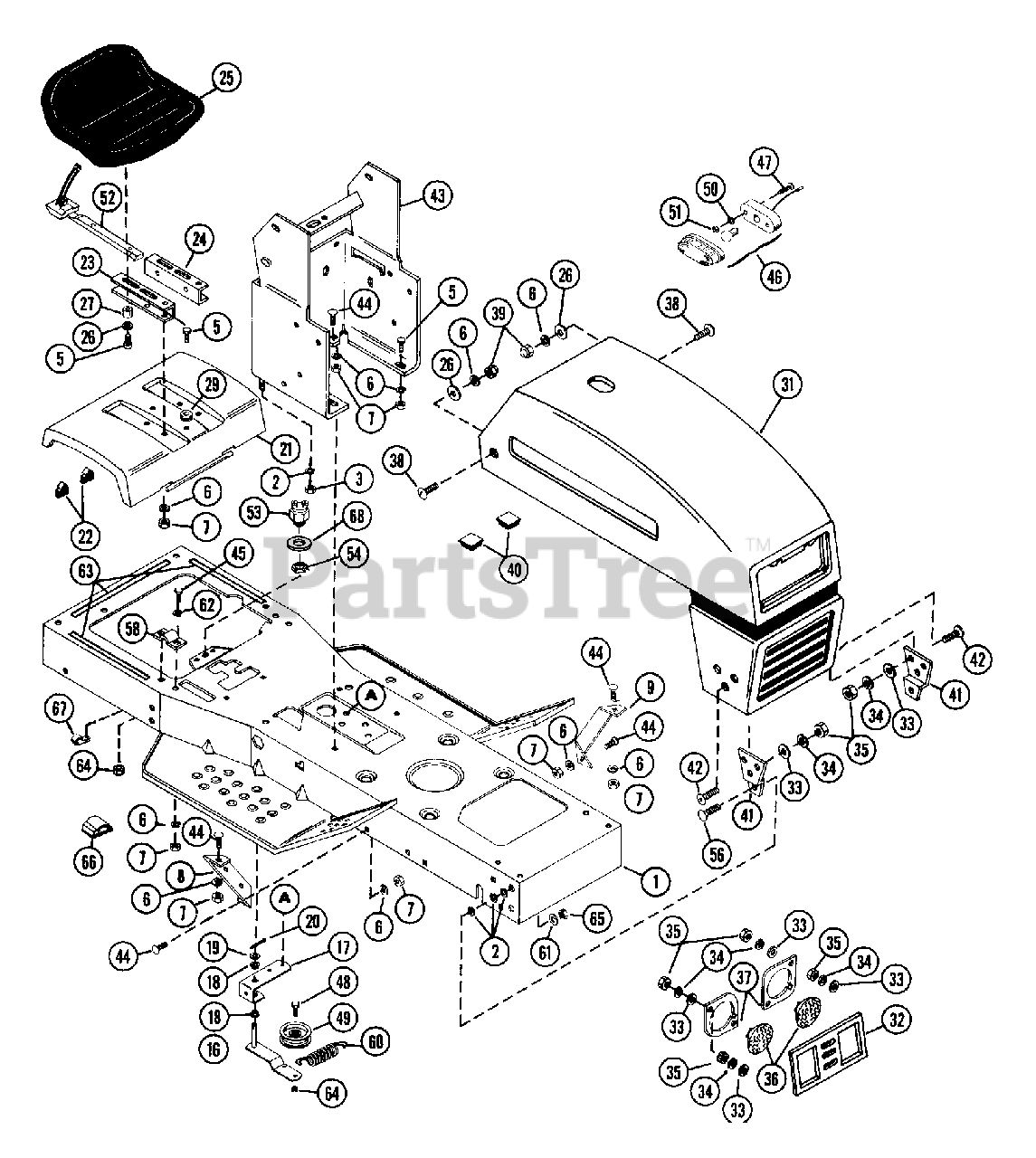

935004 (YT 832) - Ariens Sierra 32" Yard Tractor, 8hp Tecumseh, Gear (SN: 000101 - 000900) Frame Parts Diagram

Sierra 32" Yard Tractor, 8hp Tecumseh, Gear

Frame Parts Diagram

  • Title

1

Ariens 53502800

FRAME W/DECALS

$

$

Not available

2

Ariens 06300400

WSHR-LK .375X.115 HVY PL
(Superseded to 06306500)

$3.49

$

In Stock, only 3 left!

0

3

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

In Stock, Qty 20+

0

5

Ariens 05913500

BLT-HEX .31-18X.75 PL GR5
(Superseded to 05947000)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

8

Ariens 03500600

STRUT RIGHT FOOT BOARD

$

$

Not available

9

Ariens 03500700

STRUT LEFT FOOT BOARD

$

$

Not available

10

Ariens 06201100

BLT-RDHDSQNK .31-18X.75 GR5 PL
(Superseded to 06215700)

$2.49

$

In Stock, Qty 20+

0

16

Ariens 03504300

IDLER ARM

$

$

Not available

17

Ariens 03504400

IDLER PIVOT

$

$

Not available

18

Ariens 05503600

BSHG-FLG .372X.500X.312X.625NY

$1.49

$

In Stock, Qty 20+

0

19

Ariens 06404300

WSHR-FL-STL.406X.812X.065PL
(Superseded to 06436200)

$0.99

$

In Stock, Qty 20+

0

20

Ariens 06700400

PIN-COTR .12X1.0 PL
(Superseded to 06707100)

$0.99

$

In Stock, Qty 10

0

21

Ariens 03503800

REAR DECK
(Superseded to 03564800)

$

$

Not available

22

Ariens 07505400

BUMPER

$

$

Not available

23

Ariens 03503900

SEAT CHANNEL R H

$

$

Not available

24

Ariens 03504000

SEAT CHANNEL L H

$

$

Not available

25

Ariens 03504100

SEAT V-350
(Superseded to 02756800)

$

$

Not available

26

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0

27

Ariens 00607100

SPACER BUSHING .5 X .32 X .21

$14.99

$

Usually ships in 4-12 days

0

29

Ariens 07502600

GROMMET, .31 ID

$

$

Not available

31

Ariens 53503600

HOOD & GRILL W/DECALS YT8
(Superseded to 03576800)

Note: (Used Only On Model(s): 935004).

$

$

Not available

31

Ariens 53503700

HOOD & GRILL W/DECALS YT11
(Superseded to 03576800)

Note: (Used Only On Model(s): 935003,005).

$

$

Not available

32

Ariens 02920600

HEADLIGHT INSERT

$

$

Not available

33

Ariens 06400700

WSHR-FL-STL.312X.734X.065PL
(Superseded to 06435800)

$0.99

$

In Stock, Qty 20+

0

34

Ariens 06300200

WSHR-LK .250X.077 HVY PL
(Superseded to 06308000)

$

$

Not available

35

Ariens 06503200

NUT-HEX .250-20 PL
(Superseded to 06533200)

$0.99

$

In Stock, Qty 13

0

36

Ariens 03114900

HEAD LIGHT

$20.99

$

Usually ships in 4-12 days

0

37

Ariens 03115900

HEAD LIGHT RETAINER RING

$

$

Not available

38

Ariens 06104500

SCR-MCH .31-18X.50 SLTR PL

$

$

Not available

39

Ariens 06509500

NUT-CROWN .312-18 PL
(Superseded to 06530800)

$5.99

$

Usually ships in 4-12 days

0

40

Ariens 07505800

STOP
(Superseded to 07525100)

$2.49

$

Usually ships in 4-12 days

0

41

Ariens 02912200

HOOD HINGE

$

$

Not available

42

Ariens 06104100

SCRW-MCH .25-20X.38 TRUSS PL
(Superseded to 05967300)

$

$

Not available

43

Ariens 03505000

DASH BASE
(Superseded to 53507100)

$

$

Not available

44

Ariens 06201100

BLT-RDHDSQNK .31-18X.75 GR5 PL
(Superseded to 06215700)

$2.49

$

In Stock, Qty 20+

0

45

Ariens 05902200

BLT-HEX .31-18X.75 PL GR2
(Superseded to 05947000)

$1.49

$

In Stock, Qty 20+

0

46

Ariens 63100600

TAIL LIGHT
(Superseded to 53128400)

$119.99

$

Usually ships in 4-12 days

0

46

Ariens 03137500

TAIL LIGHT LENS

$

$

Not available

46

BULB, STD GE NO. 1895

$

$

Not available

47

Ariens 06104000

SCR-MCH 10-24X.50 SLTR PL

$3.99

$

Usually ships in 4-12 days

0

48

Ariens 05916100

BLT-HEX .38-16X1.75 PL GR5
(Superseded to 05958500)

$1.49

$

In Stock, Qty 20+

0

49

Ariens 07311100

IDLER-FLAT 2.75 X .38 DAYCO

$39.99

$

In Stock, only 3 left!

0

50

Ariens 06301100

WSHR-LK 10X.047 MED PL
(Superseded to 06308100)

$1.49

$

Usually ships in 4-12 days

0

51

Ariens 06505500

NUT-HEX 10-24 PL

$

$

Not available

52

Ariens 03171600

SWITCH SEAT

$

$

Not available

53

Ariens 02913100

SWITCH-NEUTRAL START N.O.

$45.99

$

In Stock, Qty 7

0

54

Ariens 06509600

NUT- .562-18

$

$

Not available

56

Ariens 06201300

BLT-RDHDSQSHNK .38-16X1.00 PL
(Superseded to 06212000)

$1.49

$

In Stock, Qty 20+

0

58

Ariens 02912300

BRACE

$

$

Not available

60

Ariens 08305800

SG-TENS .080X.470X4.88 WLD 30

$14.99

$

Usually ships in 4-12 days

0

61

Ariens 06400800

WSHR-FL-STL .438X1.0X.083 PL
(Superseded to 06435900)

$1.49

$

In Stock, Qty 20+

0

62

Ariens 06303200

WSHR-LK-EXT .313X.030 PL

$2.49

$

Usually ships in 4-12 days

0

63

Ariens 03190400

1/4 X 3/4 X 1 IN FOAM TAPE
(Superseded to 03076600)

$

$

Not available

64

Ariens 06509800

NUT-LK .375-16 PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

65

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

66

Ariens 07510700

WIRE CLIP

$

$

Not available

67

Ariens 06911000

CLIP

$

$

Not available

68

Ariens 06411700

WSHR-FL-STL .811X1.25X.005
(Superseded to 06420600)

$2.99

$

Usually ships in 4-12 days

0
