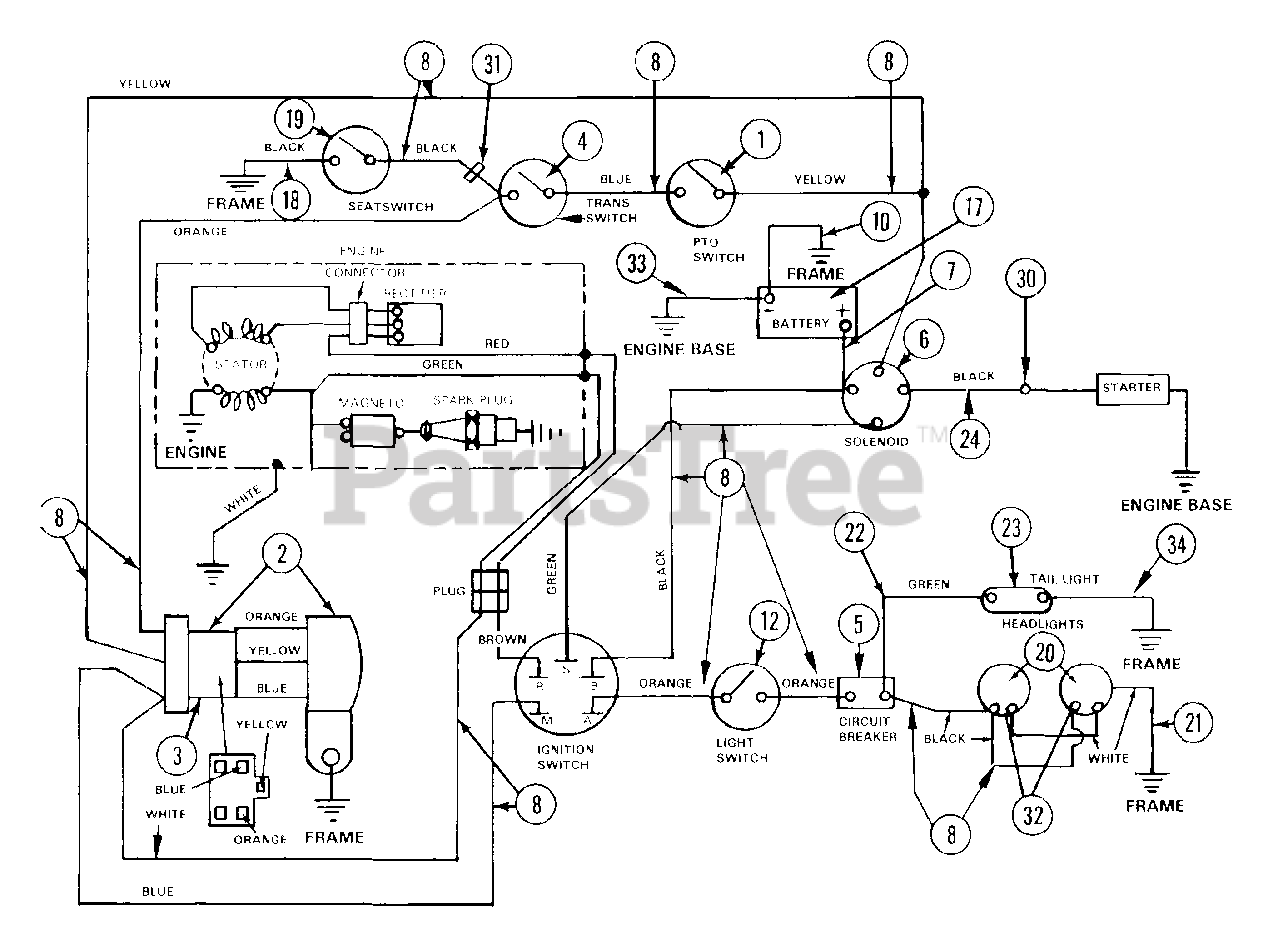

935002 (YT 1032) - Ariens Sierra 32" Yard Tractor, 10hp Tecumseh, Gear (SN: 000101 & Above) Electrical Diagram Parts Diagram

Sierra 32" Yard Tractor, 10hp Tecumseh, Gear

Electrical Diagram Parts Diagram

  • Title

1

Ariens 02707800

SWITCH INTERLOCK

$17.99

$

Usually ships in 4-12 days

0

2

Ariens 03521400

MODULE
(Superseded to 53510300)

Note: (W/CONNECTOR)

$

$

Not available

3

Ariens 02520300

CONNECTOR
(Superseded to 52401000)

Note: (TO MODULE)

$

$

Not available

4

Ariens 02913100

SWITCH-NEUTRAL START N.O.

$45.99

$

In Stock, Qty 7

0

5

Ariens 03110800

CIRCUIT BREAKER

$

$

Not available

6

Ariens 03172000

SOLENOID
(Superseded to 53504000)

$73.99

$

In Stock, only 1 left!

0

7

Ariens 02902600

GROUND CABLE
(Superseded to 03557600)

$

$

Not available

8

Ariens 03521800

WIRE HARNESS
(Superseded to 03529000)

$

$

Not available

10

Ariens 02902600

GROUND CABLE
(Superseded to 03557600)

$

$

Not available

11

Ariens 02914900

IGNITION SWITCH
(Superseded to 53507600)

$

$

Not available

12

Ariens 03115100

LIGHT SWITCH
(Superseded to 51513800)

$

$

Not available

17

Ariens 02917500

BATTERY
(Superseded to 53123300)

$

$

Not available

18

Ariens 03507500

GROUND WIRE

$

$

Not available

19

Ariens 03171600

SWITCH SEAT

$

$

Not available

20

Ariens 03114900

HEAD LIGHT

$20.99

$

Usually ships in 4-12 days

0

21

Ariens 02920700

WIRE

$

$

Not available

22

Ariens 03520300

TAIL LIGHT WIRE

$

$

Not available

23

Ariens 63100600

TAIL LIGHT
(Superseded to 53128400)

$119.99

$

Usually ships in 4-12 days

0

Ariens 03137500

TAIL LIGHT LENS

$

$

Not available

23

STANDARD GE 1895

$

$

Not available

24

Ariens 03506400

GROUND CABLE
(Superseded to 03557500)

$

$

Not available

30

Ariens 06905300

TIE DOWN
(Superseded to 07517300)

$

$

Not available

31

Ariens 03115500

MUFFLER

$

$

Not available

32

Ariens 02920500

CLAMP LOOP

$

$

Not available

33

Ariens 03111100

GROUND CABLE .31X22.00X.31
(Superseded to 03111101)

$20.99

$

In Stock, only 1 left!

0

34

Ariens 03528800

GROUND WIRE

$

$

Not available
