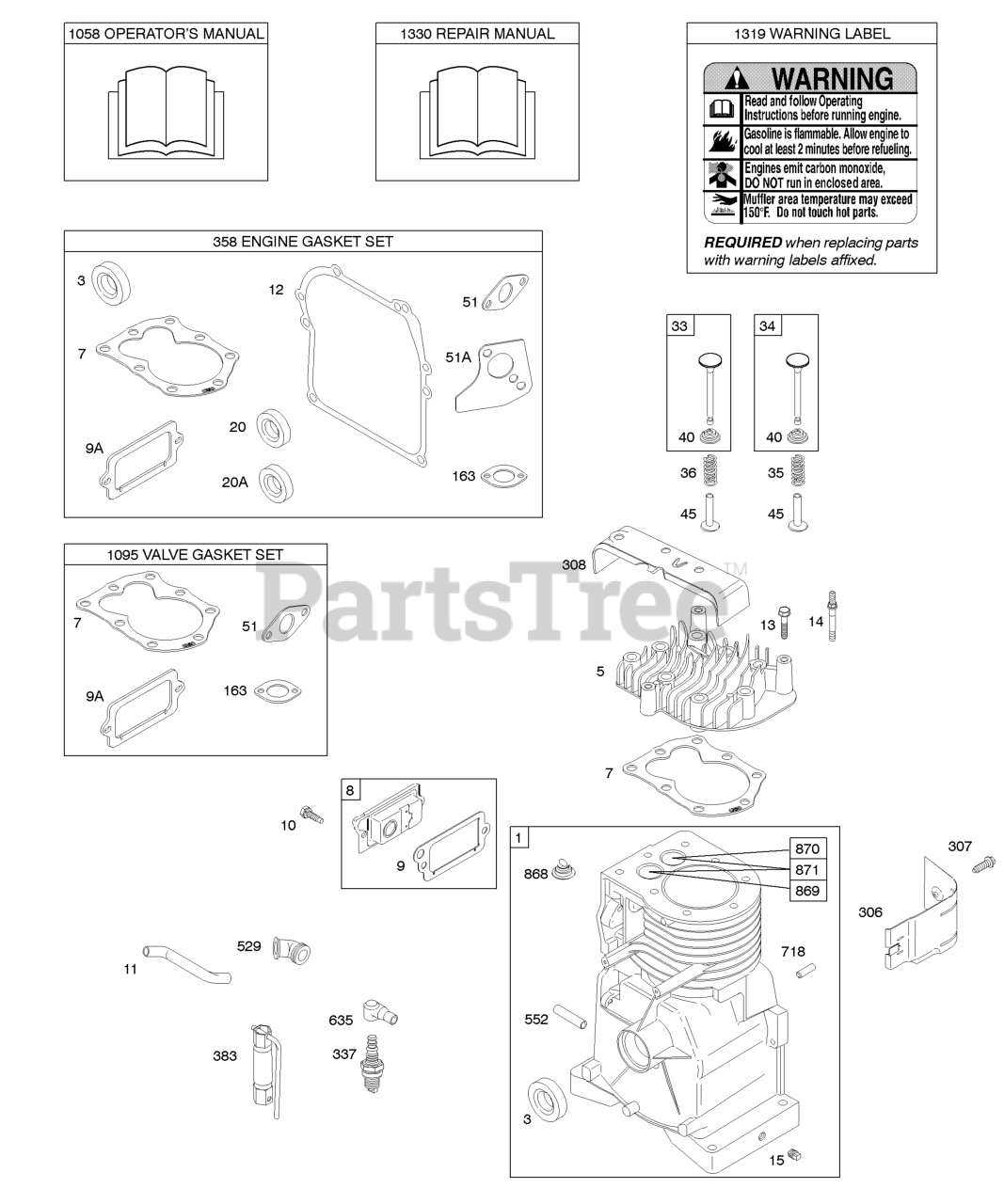

93432-1037-E1 - Briggs & Stratton Horizontal Engine Cylinder, Cylinder Head, Gasket Set - Engine, Gasket Set - Valve, Operator's Manual, Warning Label Parts Diagram

Horizontal Engine

Cylinder, Cylinder Head, Gasket Set - Engine, Gasket Set - Valve, Operator's Manual, Warning Label Parts Diagram

  • Title

1

Briggs & Stratton 496864

Cylinder Assembly

Note: Used Before Code Date 99110100

$285.99

$

Usually ships in 2-12 days

0

1

Briggs & Stratton 791360

Cylinder Assembly

Note: Used After Code Date 99103100

$223.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 299819S

SEAL, Oil

Note: (Magneto Side)

$5.49

$

In Stock, Qty 17

0

5

Briggs & Stratton 690384

Head-Cylinder

$

$

Not available

7

Briggs & Stratton 698717

Gasket-Cylinder Head

$5.99

$

In Stock, Qty 20+

0

8

Briggs & Stratton 791779

Breather Assembly

Note: Used After Code Date 05102400

$15.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 699448

Breather Assembly
(Superseded to 791779)

Note: Used Before Code Date 05102500

$15.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 695890

Gasket-Breather

Note: Used After Code Date 03031900

$4.49

$

In Stock, only 1 left!

0

9A

Briggs & Stratton 27549S

Gasket-Breather

Note: Used Before Code Date 03032000

$3.99

$

In Stock, Qty 13

0

10

Briggs & Stratton 691666

Screw

Note: (Breather Assembly)

$3.99

$

In Stock, Qty 5

0

11

Briggs & Stratton 691246

Tube-Breather

$

$

Not available

12

Briggs & Stratton 270896

Gasket-Crankcase

Note: (.009" Thick)

$5.99

$

In Stock, Qty 8

0

12

Briggs & Stratton 692218

Gasket-Crankcase

Note: (.015" Thick)(Standard)

$

$

Not available

12

Briggs & Stratton 270895

Gasket-Crankcase

Note: (.005" Thick)

$9.99

$

In Stock, only 3 left!

0

13

Briggs & Stratton 691640

Screw

Note: (Cylinder Head)

$3.49

$

In Stock, Qty 12

0

14

Briggs & Stratton 690361

Stud

Note: (Cylinder Head)

$9.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 691686

PLUG, Oil Drain

$5.49

$

In Stock, only 2 left!

0

20

Briggs & Stratton 692020

Seal-Oil

Note: (PTO Side)

$10.99

$

Usually ships in 2-12 days

0

20A

Briggs & Stratton 299819S

SEAL, Oil

Note: (PTO Side)

$5.49

$

In Stock, Qty 17

0

33

Briggs & Stratton 497871

Valve-Exhaust

$35.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 296677

Valve-Intake

$24.99

$

In Stock, only 3 left!

0

35

Briggs & Stratton 690520

Spring-Valve

Note: (Intake)

$5.49

$

In Stock, only 3 left!

0

36

Briggs & Stratton 690520

Spring-Valve

Note: (Exhaust)

$5.49

$

In Stock, only 3 left!

0

40

Briggs & Stratton 692194

Retainer-Valve

$5.99

$

In Stock, Qty 11

0

45

Briggs & Stratton 691762

Tappet-Valve

$9.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 692283

Gasket-Intake

$4.49

$

In Stock, Qty 5

0

51A

Briggs & Stratton 273113S

Gasket-Intake

$4.49

$

In Stock, Qty 19

0

163

Briggs & Stratton 272948S

Gasket-Air Cleaner

$6.49

$

In Stock, Qty 7

0

306

Briggs & Stratton 690461

Shield-Cylinder

$20.99

$

In Stock, Qty 10

0

307

Briggs & Stratton 691660

Screw

Note: (Cylinder Shield)

$3.99

$

In Stock, Qty 8

0

308

Briggs & Stratton 690462

Cover-Cylinder Head

$5.49

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 496018S

Plug-Spark

$4.49

$

In Stock, Qty 18

0

358

Briggs & Stratton 496865

Gasket Set-Engine
(Superseded to 795971)

$27.99

$

Usually ships in 2-12 days

0

383

Briggs & Stratton 89838S

Wrench-Spark Plug

$6.49

$

In Stock, only 4 left!

0

529

Briggs & Stratton 692187

Grommet

Note: (45 Degree)

$4.49

$

In Stock, Qty 20+

0

552

Briggs & Stratton 690508

Bushing-Governor Crank

$9.49

$

Usually ships in 2-12 days

0

635

Briggs & Stratton 66538S

BOOT, Spark Plug

$3.99

$

In Stock, Qty 12

0

718

Briggs & Stratton 690959

PIN, Locating

Note: (Cylinder)

$6.99

$

In Stock, only 1 left!

0

868

Briggs & Stratton 697338

Seal-Valve

$13.99

$

In Stock, only 4 left!

0

869

Briggs & Stratton 691701

Seat-Valve

Note: (Intake)

$8.99

$

Usually ships in 2-12 days

0

870

Briggs & Stratton 691702

Seat-Valve

Note: (Exhaust)

$8.99

$

Usually ships in 2-12 days

0

871

Briggs & Stratton 262001

Bushing-Valve Guide

$13.99

$

Usually ships in 2-12 days

0

1058

Briggs & Stratton 277098

Operator's Manual

$5.49

$

Usually ships in 2-12 days

0

1095

Briggs & Stratton 498525

Gasket Set-Valve

$17.99

$

In Stock, only 1 left!

0

1319

Briggs & Stratton 794467

LABEL, Warning

$20.99

$

Usually ships in 2-12 days

0

1330

Briggs & Stratton 270962

Repair Manual

$35.99

$

In Stock, Qty 8

0
