934301 (HT 1848) - Ariens High Sierra 48" Garden Tractor, 18hp Briggs & Stratton, Hydro (SN: 000101 & Above) Mower Pan & Roller Parts Diagram

High Sierra 48" Garden Tractor, 18hp Briggs & Stratton, Hydro

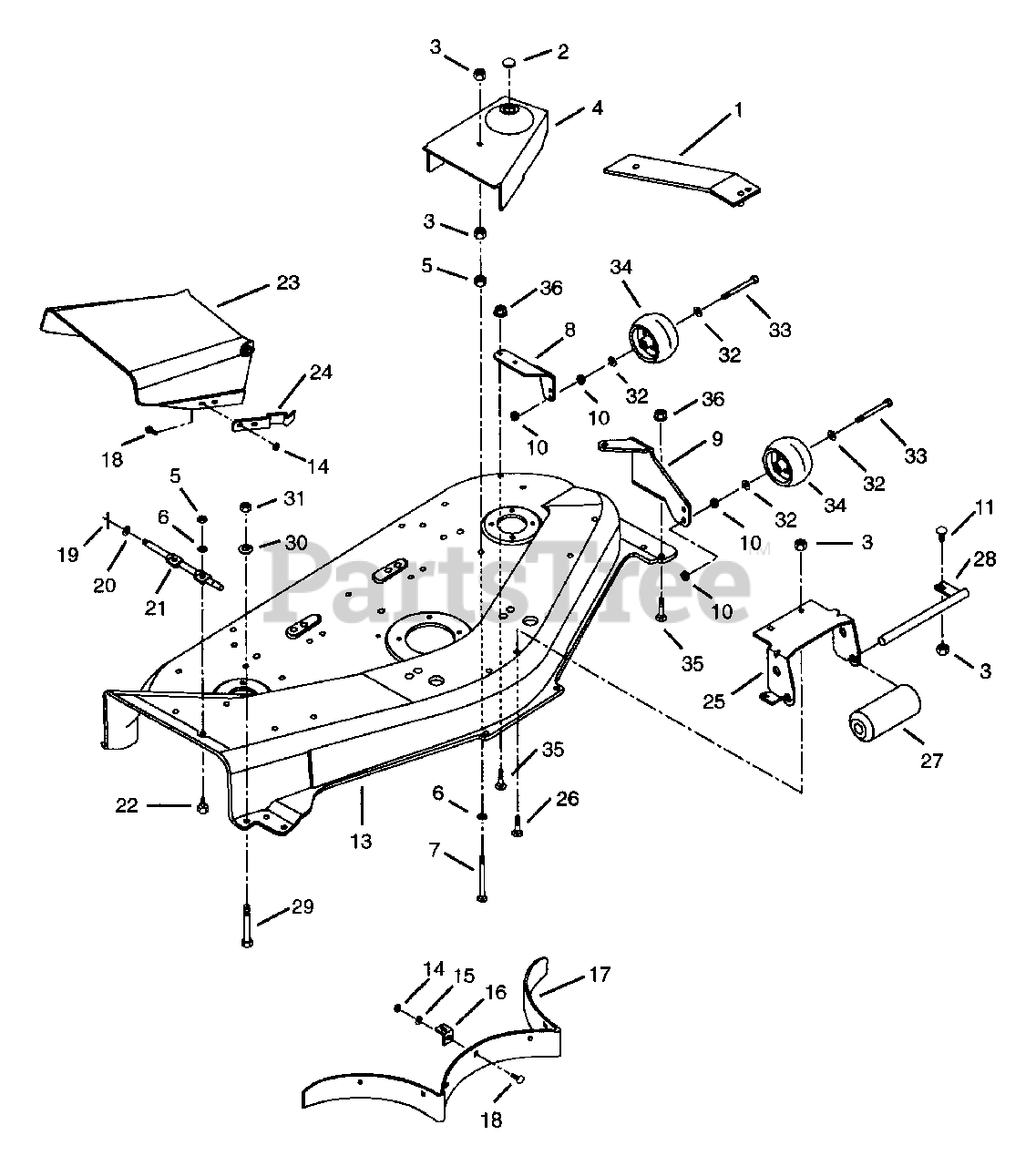

Mower Pan & Roller Parts Diagram

  • Title

1

Ariens 03038000

RAMP

$

$

Not available

2

Ariens 07504000

BUTTON PLUG 1.0

$3.49

$

In Stock, only 1 left!

0

3

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

4

Ariens 03356500

COVER, R.H. BELT
(Superseded to 03096200)

$142.99

$

Usually ships in 4-12 days

0

4

Ariens 03482400

BELT COVER L H 48"
(Superseded to 03095959)

$34.99

$

Usually ships in 4-12 days

0

5

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

6

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 06208700

BLT-RDHDSQNK .31-18X3.25 SHTPL
(Superseded to 06221300)

$5.99

$

Usually ships in 4-12 days

0

8

Ariens 01521900

LH REAR BRACKET

$

$

Not available

9

Ariens 01521800

LH FRONT BRACKET

$62.99

$

Usually ships in 4-12 days

0

10

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 06201100

BLT-RDHDSQNK .31-18X.75 GR5 PL
(Superseded to 06215700)

$2.49

$

In Stock, Qty 20+

0

12

Ariens 06203100

BLT-RDHDSQNK .31-18X1.0 SHT PL
(Superseded to 06200237)

$2.49

$

In Stock, only 3 left!

0

13

Ariens 53401700

MOWER PAN W/DECALS 48"- ORANGE

$

$

Not available

14

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

15

Ariens 06412700

WSHR-FL-STL.281X.62X.065 PL
(Superseded to 06437300)

$0.99

$

In Stock, Qty 20+

0

16

Ariens 03434300

BAFFLE TAB
(Superseded to 03434351)

$

$

Not available

17

Ariens 03434200

BAFFLE

$83.99

$

Usually ships in 4-12 days

0

18

Ariens 06205300

BLT-RDHDSQNK .25-20X.50 SHT PL
(Superseded to 06220600)

$0.99

$

In Stock, Qty 20+

0

19

Ariens 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

$0.99

$

In Stock, Qty 10

0

20

Ariens 06404300

WSHR-FL-STL.406X.812X.065PL
(Superseded to 06436200)

$0.99

$

In Stock, Qty 20+

0

21

Ariens 03405800

HINGE PIN

$46.99

$

Usually ships in 4-12 days

0

22

Ariens 05913500

BLT-HEX .31-18X.75 PL GR5
(Superseded to 05947000)

$1.49

$

In Stock, Qty 20+

0

23

Ariens 03034900

CHUTE EXTENSION
(Superseded to 53402500)

$114.99

$

In Stock, only 1 left!

0

24

Ariens 00318500

SPRING, FLAT
(Superseded to 01597751)

$20.99

$

In Stock, only 1 left!

0

25

Ariens 03435100

BRACKET, ROLLER
(Superseded to 03435151)

$81.99

$

Usually ships in 4-12 days

0

26

Ariens 06202600

BLT-RDHDSQNK .312-18X.62 PL
(Superseded to 06215700)

$2.49

$

In Stock, Qty 20+

0

27

Ariens 03114100

ROLLER

$22.99

$

In Stock, Qty 20+

0

28

Ariens 03435200

ROLLER SHAFT

$51.99

$

Usually ships in 4-12 days

0

29

Ariens 05921600

BLT-HEX.38-16X2.5FTHD GR2 YWZC

$2.99

$

In Stock, only 3 left!

0

30

Ariens 06300400

WSHR-LK .375X.115 HVY PL
(Superseded to 06306500)

$3.49

$

In Stock, only 1 left!

0

31

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

In Stock, Qty 20+

0

32

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0

33

Ariens 05920800

BLT-HEX .38-16X3.50 PL GR5
(Superseded to 05960900)

$3.99

$

In Stock, Qty 20+

0

34

Ariens 02745400

ROLLER

$15.99

$

In Stock, Qty 20+

0

35

Ariens 06204100

BLT-RDHDSQNK.31-18X.75GR5SHTPL
(Superseded to 06220800)

$2.49

$

In Stock, Qty 20+

0

36

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

$1.49

$

In Stock, Qty 20+

0
