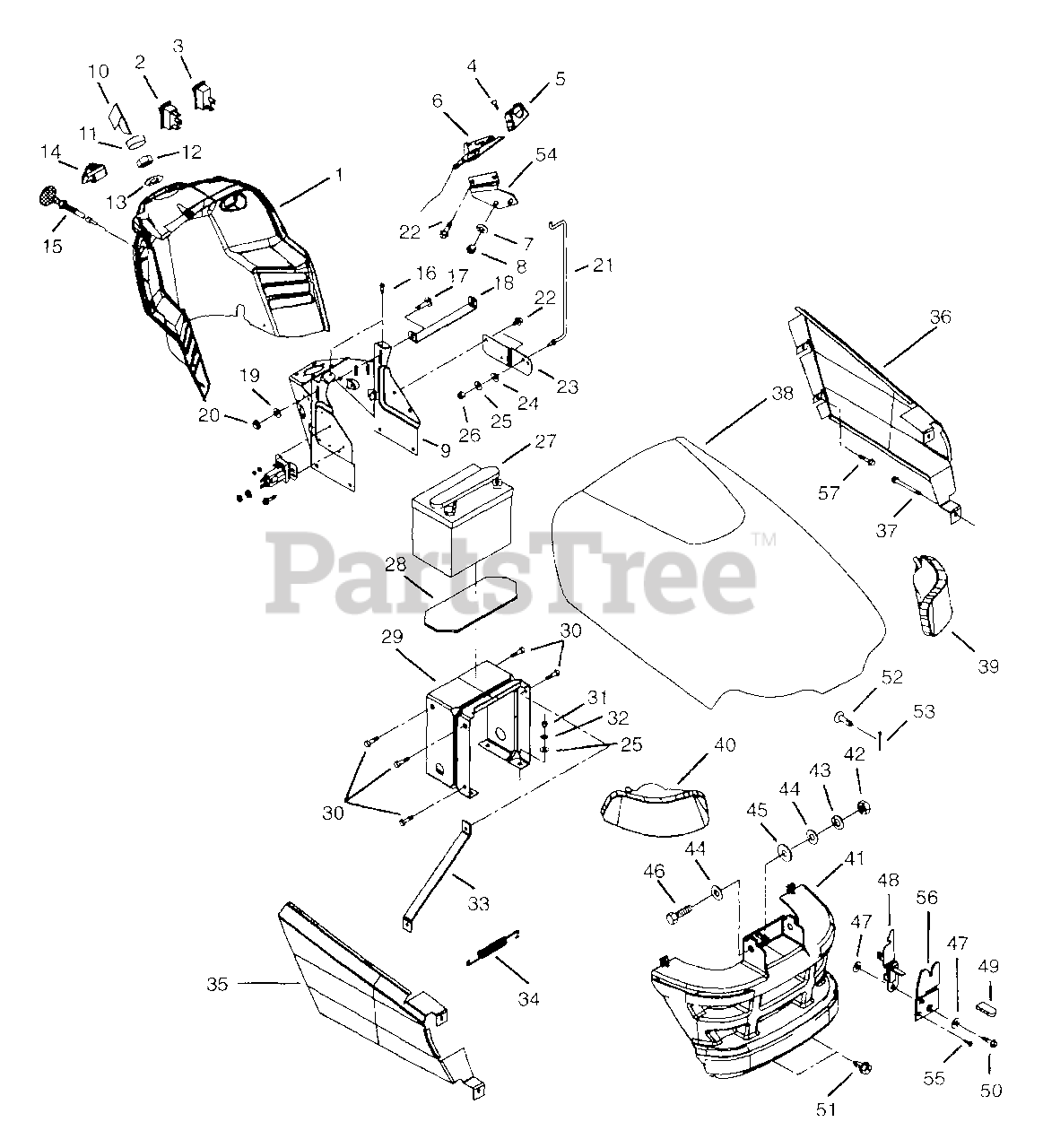

934301 (HT 1848) - Ariens High Sierra 48" Garden Tractor, 18hp Briggs & Stratton, Hydro (SN: 000101 & Above) Hood And Dash Parts Diagram

High Sierra 48" Garden Tractor, 18hp Briggs & Stratton, Hydro

Hood And Dash Parts Diagram

  • Title
1

Ariens 03652900

DASH
(Superseded to 03679300)

$

$

Not available

2

Ariens 03656900

SWITCH - CRUISE

$22.99

$

Usually ships in 4-12 days

0

3

Ariens 03656800

SWITCH - LIGHT

$

$

Not available

4

Ariens 06004600

SCR-SET 10-24X.38 UNC-3A

$3.99

$

Usually ships in 4-12 days

0

5

Ariens 03653200

KNOB - THROTTLE
(Superseded to 03653259)

$

$

Not available

6

Ariens 06931300

THROTTLE CONTROL-B&S
(Superseded to 06940700)

$45.99

$

Usually ships in 4-12 days

0

7

Ariens 06405700

WSHR-FL-STL .323X.625X.062 PL
(Superseded to 06436700)

$1.49

$

In Stock, only 2 left!

0

8

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

9

Ariens 03357600

SUPPORT - DASH - TOP

$

$

Not available

10

Ariens 02460700

KEY -W/CAP

$7.99

$

In Stock, Qty 20+

0

11

Ariens 07517700

CAP - IGNITION SWITCH

$3.99

$

Usually ships in 4-12 days

0

12

Ariens 06517400

NUT- PANEL .562-24 GRECO

$20.99

$

In Stock, only 1 left!

0

13

Ariens 06302900

WSHR-LK-INT .563X.040 PL
(Superseded to 06310900)

$2.49

$

In Stock, only 2 left!

0

14

Ariens 03655400

PTO KNOB/SWITCH ASSY
(Superseded to 00355900)

$82.99

$

Usually ships in 4-12 days

0

15

Ariens 06918300

CHOKE CABLE

$

$

Not available

16

Ariens 07402600

SCR-TAP 10-24X.375 CRPH 1A
(Superseded to 07406900)

$2.49

$

Usually ships in 4-12 days

0

17

Ariens 06203300

BLT-RDHDSQNK .312-18X.62SHTPL
(Superseded to 06212200)

$1.49

$

In Stock, Qty 20+

0

18

Ariens 03651400

HOLDDOWN - BATTERY

$34.99

$

Usually ships in 4-12 days

0

19

Ariens 06405700

WSHR-FL-STL .323X.625X.062 PL
(Superseded to 06436700)

$1.49

$

In Stock, only 2 left!

0

20

Ariens 06506200

NUT-LK-NYL.312-18 PL
(Superseded to 06530200)

$0.99

$

In Stock, Qty 20+

0

21

Ariens 03656600

ROD - HOOD PROP

$

$

Not available

22

Ariens 07401500

SCR-TAP .250-20X.37 HWH PL TR
(Superseded to 07411600)

$0.99

$

In Stock, Qty 20+

0

23

Ariens 03656700

MOUNT - PROP ROD

$

$

Not available

24

Ariens 01320200

WAVE WASHER .390X.655X.110

$3.49

$

In Stock, Qty 7

0

25

Ariens 06400700

WSHR-FL-STL.312X.734X.065PL
(Superseded to 06435800)

$0.99

$

In Stock, Qty 20+

0

26

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

27

Ariens 03055700

BATTERY
(Superseded to 53123300)

$

$

Not available

28

Ariens 02530700

RUBBER PAD

$

$

Not available

29

Ariens 03651200

SUPPORT DASH BASE

$

$

Not available

30

Ariens 07401400

SCR-TAP .312-18X.50 HWH PL TR
(Superseded to 07411500)

$1.49

$

In Stock, Qty 20+

0

31

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

32

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

33

$

$

Not available

34

Ariens 08314900

SG-TENS .035X.45X2.75 WLD 3.5

$13.99

$

In Stock, only 1 left!

0

35

Ariens 03655100

SIDE PANEL- RH
(Superseded to 03673351)

$56.99

$

Usually ships in 4-12 days

0

36

Ariens 03655200

SIDE PANEL- LH
(Superseded to 03673451)

$62.99

$

Usually ships in 4-12 days

0

37

Ariens 07412500

SCR-TAP 12-16X.500 HI-LOTPHBL

$

$

Not available

38

$

$

Not available

39

Ariens 03647300

HEADLIGHT- LH

$

$

Not available

40

Ariens 03647200

HEADLIGHT- RH

$

$

Not available

41

Ariens 03649700

GRILLE
(Superseded to 03679200)

$

$

Not available

42

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

43

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

44

Ariens 06421400

WSHR-FL-STL .328X1.0X.094 PL
(Superseded to 06437500)

$3.99

$

In Stock, only 3 left!

0

45

Ariens 06416800

WSHR-PLASTIC .390X.875X.062
(Superseded to 06433600)

$0.99

$

In Stock, Qty 11

0

46

Ariens 05918100

BLT-HEX .31-18X1.00 PL GR5
(Superseded to 05946900)

$1.49

$

In Stock, Qty 20+

0

47

Ariens 06403700

WSHR-FL-STL .281X1.250X.048PL

$

$

Not available

48

Ariens 03655000

HOOD LATCH

$

$

Not available

49

Ariens 07526700

GRIP .062 X .375 X 1.000 RE

$

$

Not available

50

Ariens 07410000

SCR-TAP 12-24X.75 HWH PL TR
(Superseded to 07414600)

$3.49

$

Usually ships in 4-12 days

0

51

Ariens 07401700

SCR-TAP .312-18X.75 HWH PL TR
(Superseded to 07414400)

$1.49

$

In Stock, Qty 11

0

52

Ariens 00283500

PIN, CLEVIS .243/.248X1.50 YWZ

$3.49

$

Usually ships in 4-12 days

0

53

Ariens 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

$0.99

$

In Stock, Qty 10

0

54

Ariens 03358200

BRACE-THROTTLE CONTROL

$

$

Not available

55

Ariens 07406400

SCR-TAP 10-12X.50 CRPH PL A BL

$3.49

$

Usually ships in 4-12 days

0

56

Ariens 03659200

LOCATOR, HOOD

$

$

Not available

57

Ariens 07411200

SCR-TAP 10-12X.62 CRPH PL A

$

$

Not available
