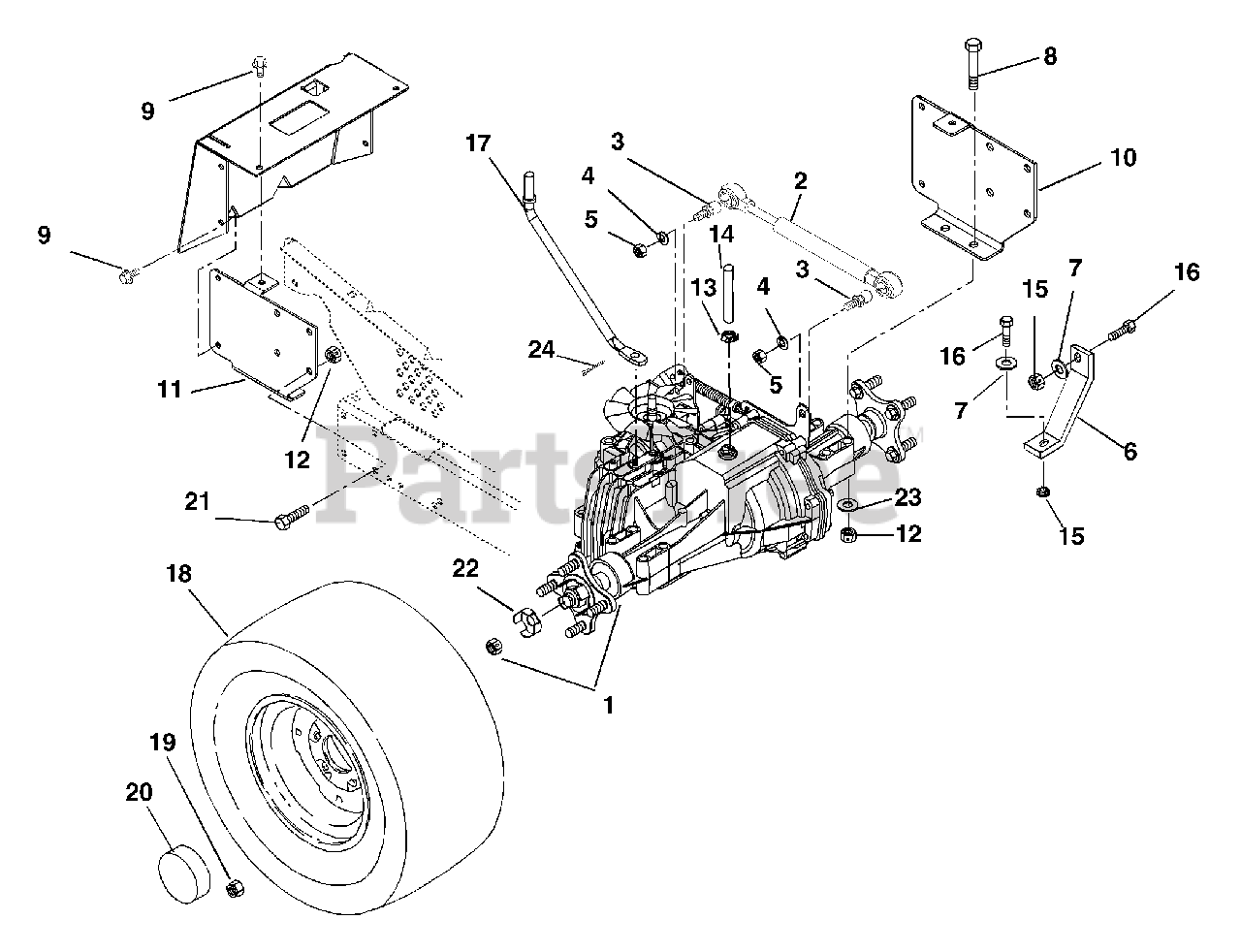

934027 (HT 2248) - Ariens High Sierra 48" Garden Tractor, 22hp Briggs & Stratton, Hydro (SN: 000101 & Above) Hydrostatic Drive Parts Diagram

High Sierra 48" Garden Tractor, 22hp Briggs & Stratton, Hydro

Hydrostatic Drive Parts Diagram

  • Title
1

Ariens 03362900

TRANSAXLE-HYDR0-GEAR #319-3000

$1675.99

$

Usually ships in 4-12 days

0

2

Ariens 03652100

DAMPER - HYDRAULIC

$52.99

$

Usually ships in 4-12 days

0

3

Ariens 03652200

STUD- BALL

$3.49

$

In Stock, only 3 left!

0

4

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 20+

0

5

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

6

Ariens 03362251

BRACE, LH TRANSAXLE

$

$

Not available

7

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

8

Ariens 05957800

@BLT-HEX .38-16X3.00 GR5 YWZC
(Superseded to 05901814)

Note: Grade 5

$2.49

$

In Stock, Qty 20+

0

9

Ariens 07415400

@SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 03362151

MOUNT, AXLE LH
(Superseded to 03695900)

$

$

Not available

11

Ariens 03362051

MOUNT, AXLE RH
(Superseded to 03695800)

$

$

Not available

12

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 03449700

CLAMP-HOSE WRM .38/.62X.50 #10

$

$

Not available

14

Ariens 03363700

HOSE, VENT

$

$

Not available

15

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

Note: Grade 5

$1.49

$

In Stock, Qty 20+

0

17

Ariens 03363300

ROD-DUMP VALVE

$

$

Not available

18

Ariens 07149700

TIRE/WHEEL ASSEMBLY 10.50X23

$

$

Not available

19

Ariens 06511400

NUT-LUG .437-20 YWZC

$3.99

$

Usually ships in 4-12 days

0

20

Ariens 07508800

REAR HUB CAP

$15.99

$

Usually ships in 4-12 days

0

21

Ariens 05959400

@BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

Note: Grade 5

$1.49

$

In Stock, Qty 20+

0

22

Ariens 03516900

SPINDLE CUP

$19.99

$

In Stock, only 1 left!

0

23

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

24

Ariens 06706900

@PIN-CTR .09X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, Qty 10

0
