934027 (HT 2248) - Ariens High Sierra 48" Garden Tractor, 22hp Briggs & Stratton, Hydro (SN: 000101 & Above) Hydro Drive Shift Parts Diagram

High Sierra 48" Garden Tractor, 22hp Briggs & Stratton, Hydro

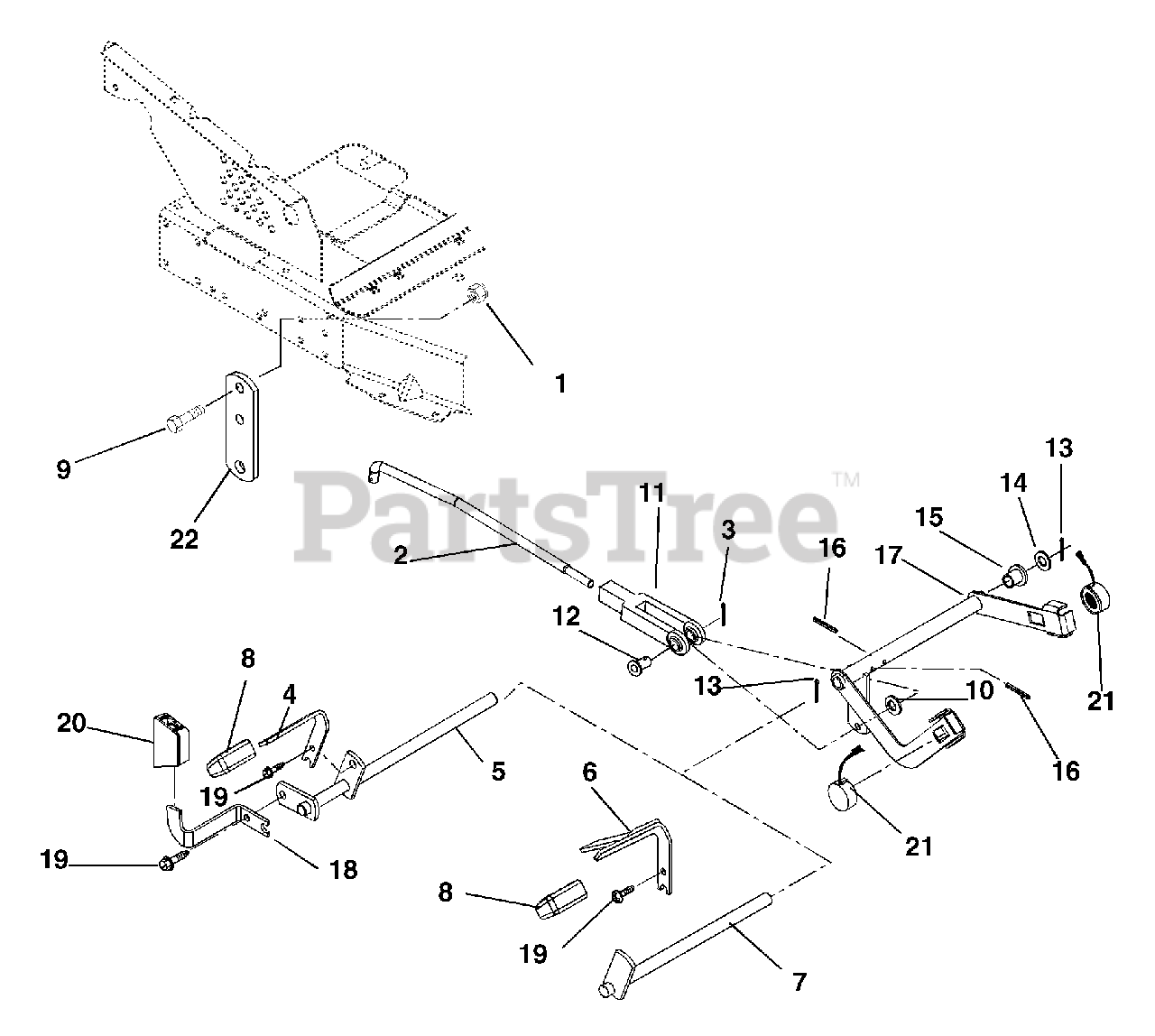

Hydro Drive Shift Parts Diagram

  • Title

1

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

2

Ariens 03362600

ROD, SHIFT

$5.99

$

Usually ships in 4-12 days

0

3

Ariens 06706900

@PIN-CTR .09X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, Qty 10

0

4

Ariens 03650651

PEDAL, FORWARD

Note: (S/N 000101-000268)

$5.99

$

Usually ships in 4-12 days

0

5

Ariens 03651800

SHAFT - PEDAL

Note: (S/N 000101-000268)

$

$

Not available

6

Ariens 03683500

PEDAL-F/R HI SIERRA COMP

Note: (S/N 000501 and up)

$

$

Not available

7

Ariens 03684400

SHAFT-PEDAL (SINGLE)

Note: (Single); (S/N 000501 and up)

$

$

Not available

8

Ariens 07524000

COVER - PEDAL - FORWARD

$34.99

$

Usually ships in 4-12 days

0

9

Ariens 05959400

@BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

Note: Grade 5

$1.49

$

In Stock, Qty 20+

0

10

Ariens 06444300

WSHR-FL-STL .390X.75X.125 YWZC

$7.99

$

In Stock, Qty 8

0

11

Ariens 00513800

YOKE, .312-24 X 2.25

$29.99

$

Usually ships in 4-12 days

0

12

Ariens 06814000

PIN-CLEV .31X.937 FLHD YWZC

$3.99

$

In Stock, only 1 left!

0

13

Ariens 06707100

@PIN-CTR .12X1.00 EXTPRSQCT YZ

$0.99

$

In Stock, Qty 10

0

14

Ariens 06441100

WSHR-FL-STL .52X.827X.062 YWZC
(Superseded to 06401114)

$2.49

$

In Stock, only 2 left!

0

15

Ariens 05521100

BSHG-FLG .515X.750X.745X1.00NY

$2.49

$

In Stock, only 3 left!

0

16

Ariens 05804500

PIN-GRV .188X1.25 TP A

$10.99

$

In Stock, Qty 5

0

17

Ariens 03363051

ASSEMBLY, SHIFT ARM

$13.99

$

Usually ships in 4-12 days

0

18

Ariens 03650751

PEDAL-REVERSE

$5.99

$

Usually ships in 4-12 days

0

19

Ariens 07415400

@SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 07524400

COVER - PEDAL - REVERSE

$

$

Not available

21

Ariens 03672400

MAGNET

$

$

Not available

22

Ariens 03364051

BRACKET, HANGER

$5.99

$

Usually ships in 4-12 days

0
