934027 (HT 2248) - Ariens High Sierra 48" Garden Tractor, 22hp Briggs & Stratton, Hydro (SN: 000101 & Above) Engine, Fuel And Exhaust Parts Diagram

High Sierra 48" Garden Tractor, 22hp Briggs & Stratton, Hydro

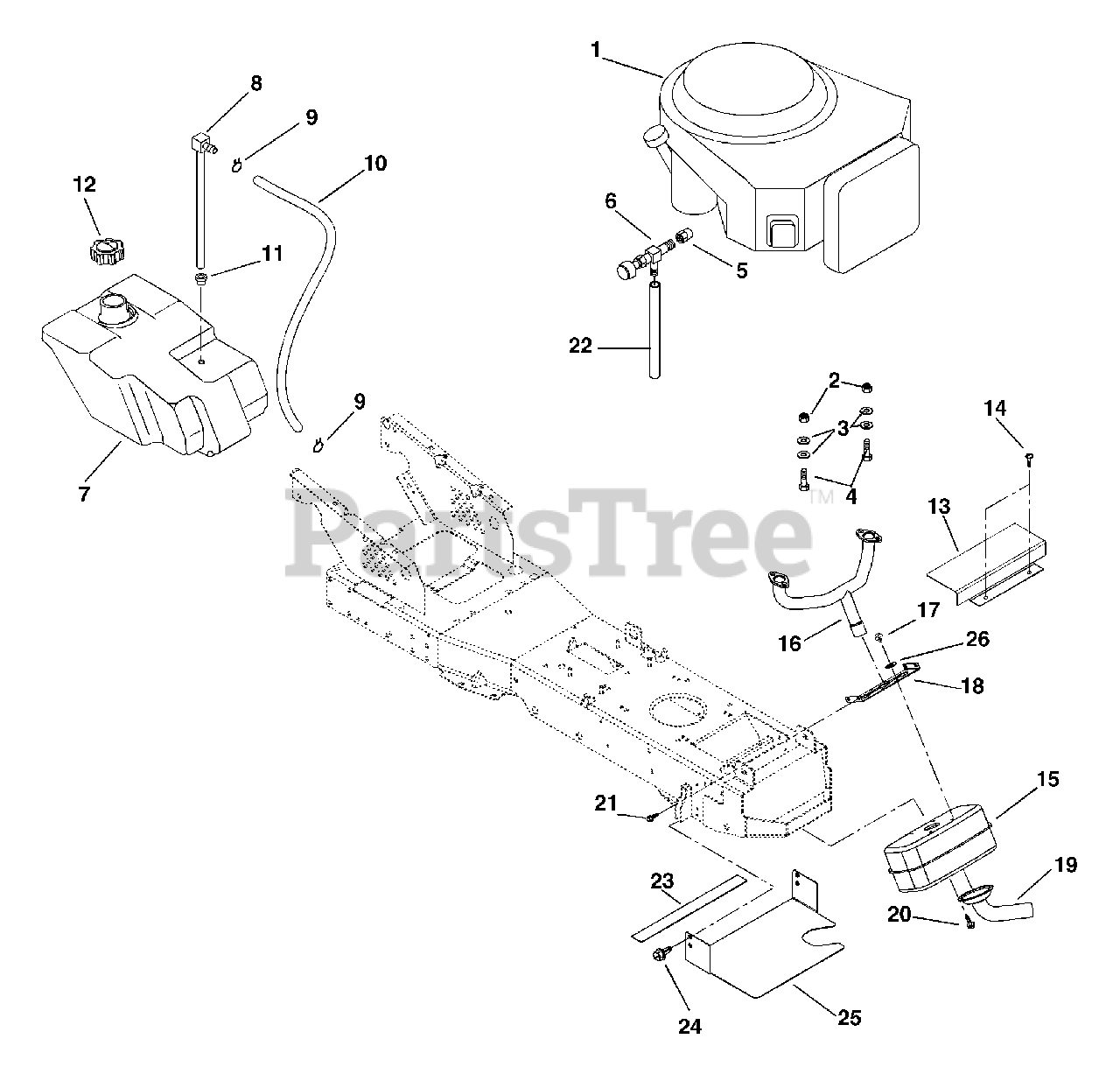

Engine, Fuel And Exhaust Parts Diagram

  • Title

1

Ariens 08259300

ENGINE, B&S INTEK 22HP V TWIN

$

$

Not available

2

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

3

Ariens 06439400

WSHR-FL-STL .328X.875X.062YWZC

$3.99

$

Usually ships in 4-12 days

0

4

Ariens 05952400

@BLT-HEX .31-18X1.50 GR5 YWZC
(Superseded to 05901710)

Note: Grade 5

$1.49

$

In Stock, Qty 13

0

5

Ariens 03493100

ADAPTER, OIL DRAIN

$5.99

$

Usually ships in 4-12 days

0

6

Ariens 03493200

COCK, OIL DRAIN
(Superseded to 00429000)

$39.99

$

In Stock, only 1 left!

0

7

Ariens 03627500

FUEL TANK

$

$

Not available

8

Ariens 03606500

TANK FITTING

$

$

Not available

9

Ariens 02917200

CLAMP-HOSE WIR.490/.510X.092#8
(Superseded to 06939100)

$3.99

$

In Stock, Qty 10

0

10

Ariens 03659400

HOSE- FUEL LINE 48.00"

$13.99

$

Usually ships in 4-12 days

0

11

Ariens 07511400

BSHG-FLG .375 X 1.062 X .625 R

$3.49

$

In Stock, Qty 20+

0

12

Ariens 01538400

FUEL CAP

$15.99

$

Usually ships in 4-12 days

0

13

Ariens 03358351

SHIELD, HEAT

$62.99

$

Usually ships in 4-12 days

0

14

Ariens 07411500

@SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

15

Ariens 03654300

MUFFLER - EXHAUST

$157.99

$

In Stock, only 2 left!

0

16

Ariens 03673600

PIPE, EXHAUST INTEK V TWIN

$90.99

$

Usually ships in 4-12 days

0

17

Ariens 07414600

@SCR-TAP 12-24X.75 HWH YWZC

$3.49

$

Usually ships in 4-12 days

0

18

Ariens 03648651

BRACKET, MUFFLER

$

$

Not available

19

Ariens 03656351

DEFLECTOR, EXHAUST

$

$

Not available

20

Ariens 07414500

SCR-TAP 8-32X.38 SL HWH YWZC

$2.49

$

Usually ships in 4-12 days

0

21

Ariens 07413400

SCR-TAP .312-18X.50 HWH TR BL

$

$

Not available

22

Ariens 01523400

TUBE OIL DRAIN

$

$

Not available

23

Ariens 03658900

HEAT SHIELD- FABRIC 1X10.75

$

$

Not available

24

Ariens 07413300

SCR-TAP 12-24X.50 HWH TR BLACK
(Superseded to 07411900)

$2.49

$

In Stock, Qty 11

0

25

Ariens 03657851

SHEILD, HEAT

$

$

Not available

26

Ariens 06442300

@WSHR-FL-STL.250X.56X.049 YWZC

$1.99

$

Usually ships in 4-12 days
