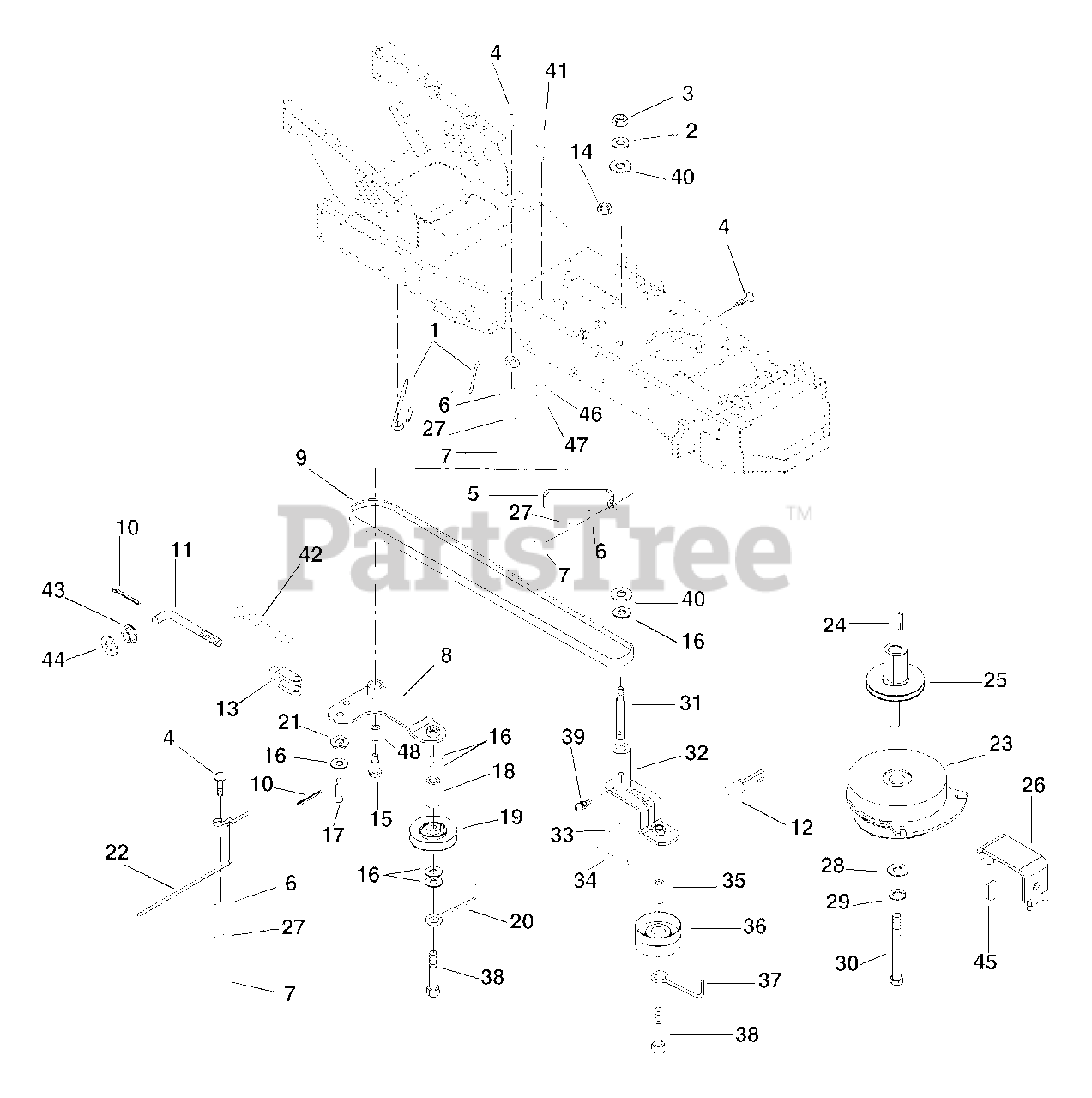

934027 (HT 2248) - Ariens High Sierra 48" Garden Tractor, 22hp Briggs & Stratton, Hydro (SN: 000101 & Above) Drive Belt Parts Diagram

High Sierra 48" Garden Tractor, 22hp Briggs & Stratton, Hydro

Drive Belt Parts Diagram

  • Title

1

Ariens 03355900

BELT FINGER

$

$

Not available

2

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

3

Ariens 06529400

@NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

4

Ariens 06214100

BLT-RDHDSQSHK.31-18X.75 GR2 YW
(Superseded to 06200309)

$2.49

$

In Stock, Qty 20+

0

5

Ariens 03356000

BELT FINGER

$5.99

$

Usually ships in 4-12 days

0

6

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

8

Ariens 03631200

IDLER PIVOT ARM

$61.99

$

Usually ships in 4-12 days

0

9

Ariens 07235900

V-BELT, 4L-WRAPPED

$48.99

$

In Stock, only 1 left!

0

10

Ariens 06706900

@PIN-CTR .09X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, Qty 8

0

11

Ariens 03647800

LINK

$

$

Not available

12

Ariens 08334700

SPRING, EXT
(Superseded to 08300512)

$17.99

$

In Stock, Qty 20+

0

13

Ariens 07014700

YOKE, .312-24 X 2.25

$14.99

$

Usually ships in 4-12 days

0

14

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

15

Ariens 07023400

BLT-SHLDR .38-16X1.25

$34.99

$

In Stock, only 1 left!

0

16

Ariens 06444300

WSHR-FL-STL .390X.75X.125 YWZC

$7.99

$

In Stock, Qty 8

0

17

Ariens 06811800

PIN-CLEV .312X.822 HDND PL
(Superseded to 06814000)

$3.99

$

Usually ships in 4-12 days

0

18

Ariens 03353800

TUBE .380 X .625 X 1.360

$

$

Not available

19

Ariens 07309200

IDLER-V 3X.38

$37.99

$

In Stock, only 2 left!

0

20

Ariens 03638300

FINGER - BELT

$51.99

$

Usually ships in 4-12 days

0

21

Ariens 00325400

WAVE WASHER .531X.781X.125FH

$0.99

$

In Stock, Qty 20+

0

22

Ariens 03355800

BELT FINGER - CENTER

$

$

Not available

23

Ariens 03357900

CLUTCH, ELECTRIC - WARNER

$491.99

$

In Stock, only 1 left!

0

24

Ariens 06603400

KEY-SQ .25 X 1.25 X .25 SAE

$3.99

$

In Stock, Qty 11

0

25

Ariens 03362300

SHAFT, EXTENSION

$

$

Not available

26

Ariens 03357551

ANCHOR, CLUTCH
(Superseded to 03357500)

$58.99

$

In Stock, only 1 left!

0

27

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 20+

0

28

Ariens 06443500

WSHR-FL-STL.463X1.375X.25 YWZC

$6.99

$

Usually ships in 4-12 days

0

29

Ariens 06310700

WSHR-LK .438X.133 HVY YWZC

$2.99

$

Usually ships in 4-12 days

0

30

Ariens 05969000

BLT-HEX .44-20X5.50 GR5 YWZC

Note: Grade 5

$7.99

$

In Stock, only 1 left!

0

31

Ariens 03622900

SHOULDER STUD

$34.99

$

In Stock, only 2 left!

0

32

Ariens 03347700

ARM - IDLER PIVOT

$

$

Not available

33

Ariens 06441100

WSHR-FL-STL .52X.827X.062 YWZC
(Superseded to 06401114)

$2.49

$

In Stock, only 2 left!

0

34

Ariens 06712700

@PIN-CTR .18X1.25 EXTPRSQCT YZ

$1.99

$

In Stock, only 3 left!

0

35

Ariens 03683200

SPACER-.38 X .62 X 2.12

$

$

Not available

36

Ariens 07308851

IDLER, FLAT 3.25 X .38
(Superseded to 07308800)

$39.99

$

In Stock, Qty 8

0

37

Ariens 03648300

FINGER - BELT

$21.99

$

In Stock, only 1 left!

0

38

Ariens 05965400

@BLT-HEX .38-16X4.00 GR5 YWZC

Note: Grade 5

$3.99

$

In Stock, only 1 left!

0

39

Ariens 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available

40

Ariens 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

41

Ariens 06221800

BLT-RDHDSQNK .31-18X1.0 SHTYZ
(Superseded to 06200237)

$2.49

$

In Stock, only 3 left!

0

42

Ariens 08333200

SG-TENS .105X.85X5.00 WLD 40

$14.99

$

In Stock, only 2 left!

0

43

Ariens 05517500

BSHG-FLG .320X.620X.312 NY

$18.99

$

Usually ships in 4-12 days

0

44

Ariens 06436600

WSHR-FL-STL .505X.880X.072 YWZ
(Superseded to 06401126)

$3.99

$

Usually ships in 4-12 days

0

45

Ariens 07526700

GRIP .062 X .375 X 1.000 RE

$

$

Not available

46

Ariens 06530200

@NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

47

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

48

Ariens 05531500

BSHG-SLV .328X.50X.75

$13.99

$

Usually ships in 4-12 days

0
