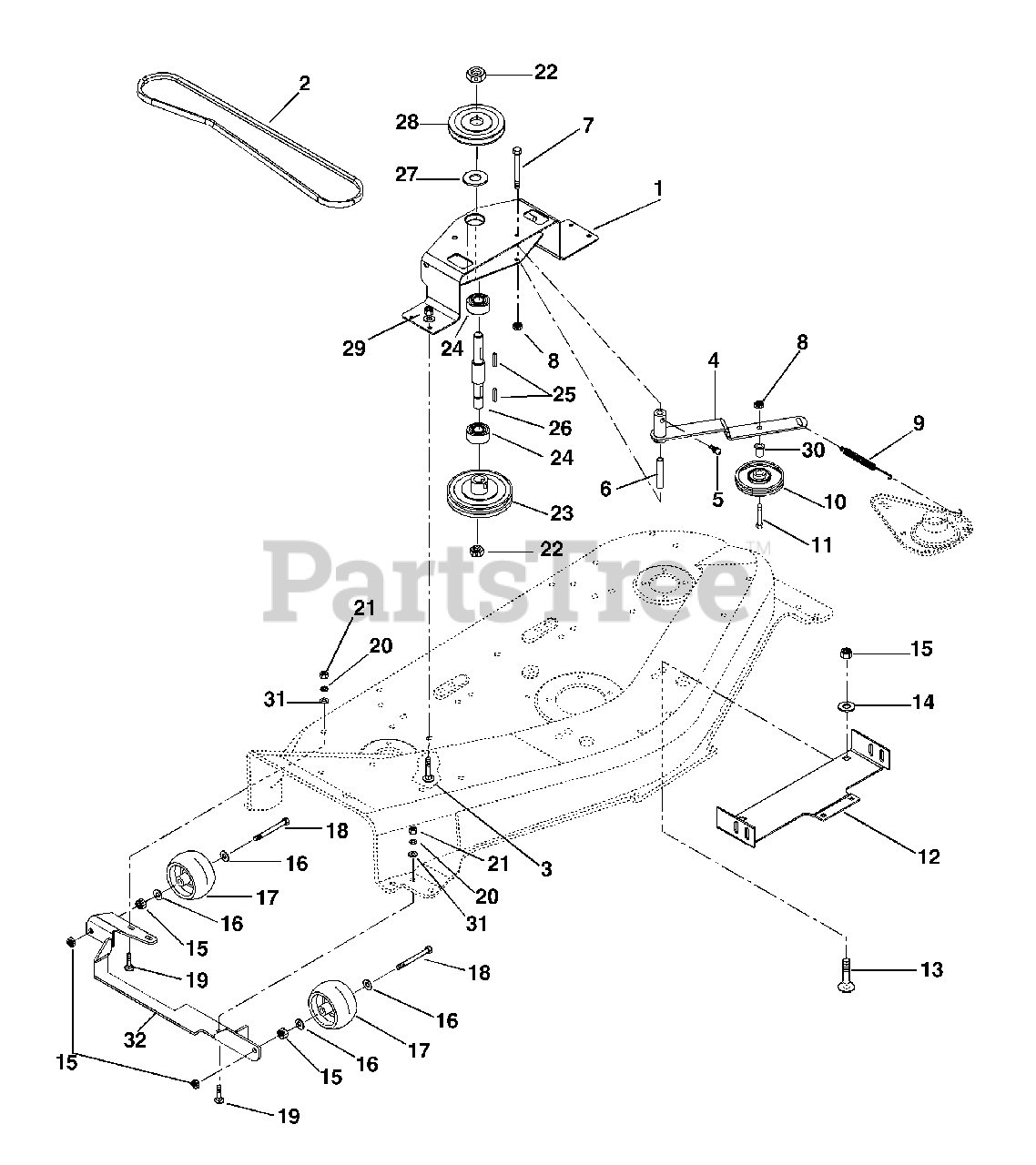

934026 (HT 1848) - Ariens High Sierra 48" Garden Tractor, 18hp Briggs & Stratton, Hydro (SN: 000101 & Above) Mower Spindle (Part 2) Parts Diagram

High Sierra 48" Garden Tractor, 18hp Briggs & Stratton, Hydro

Mower Spindle (Part 2) Parts Diagram

  • Title

1

Ariens 03362451

HOUSING-JACKSHAFT

$45.99

$

Usually ships in 4-12 days

0

2

Ariens 07227300

V-BELT, 5L-RAW EDGE

$48.99

$

Usually ships in 4-12 days

0

3

Ariens 06214100

BLT-RDHDSQSHK.31-18X.75 GR2 YW
(Superseded to 06200309)

$2.49

$

In Stock, Qty 20+

0

4

Ariens 03356159

ARM, IDLER

$

$

Not available

5

Ariens 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available

6

Ariens 03356200

SPACER .334X.500X2.73

$

$

Not available

7

Ariens 05948000

@BLT-HEX .31-18X3.50 GR5 YWZC

$

$

Not available

8

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 08329000

SG-TENS .113X.812X7.00

$20.99

$

Usually ships in 4-12 days

0

10

Ariens 00542700

IDLER, PLASTIC, 4.00 X .50 ID

$37.99

$

In Stock, only 1 left!

0

11

Ariens 05957900

@BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.49

$

In Stock, Qty 14

0

12

Ariens 03358759

BRACE, FRONT

$

$

Not available

13

Ariens 06221200

@BLT-RDHDSQNK .50-13X.75 G5YZ

$5.99

$

Usually ships in 4-12 days

0

14

Ariens 06436600

WSHR-FL-STL .505X.880X.072 YWZ
(Superseded to 06401126)

$3.99

$

Usually ships in 4-12 days

0

15

Ariens 06536300

@NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$3.99

$

In Stock, only 1 left!

0

16

Ariens 06443300

WSHR-FL-NYL .518X1.000X.080

$0.99

$

In Stock, Qty 20+

0

17

Ariens 03471700

WHEEL 5 X 3
(Superseded to 03905600)

$15.99

$

In Stock, Qty 20+

0

18

Ariens 05962300

@BLT-HEX .50-13X4.50 GR5 YWZC
(Superseded to 05901932)

$5.99

$

In Stock, only 2 left!

0

19

Ariens 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

20

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 20+

0

21

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

22

Ariens 06535400

@NUT-LK-CTR .75-10 YWZC

$5.99

$

Usually ships in 4-12 days

0

23

Ariens 07312900

PLY-V 6.00 X .75 W/KEY

$68.99

$

Usually ships in 4-12 days

0

24

Ariens 05412000

BRG-BALL .750X1.781X.61

$13.99

$

In Stock, Qty 7

0

25

Ariens 06606000

KEY-SQ .187 X .50 X .187

$10.99

$

In Stock, only 1 left!

0

26

Ariens 03355400

JACKSHAFT

$

$

Not available

27

Ariens 06444200

WSHR-FL-STL .755X1.25X.125 YZ
(Superseded to 06441500)

$3.99

$

In Stock, only 4 left!

0

28

Ariens 03454400

SHEAVE

$

$

Not available

29

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

30

Ariens 03114500

SPACER -FLANGED .390X.500X.781

$9.99

$

In Stock, only 1 left!

0

31

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0

32

Ariens 01533959

MOUNT ROLLER
(Superseded to 01533900)

$

$

Not available

33

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

34

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0
