934025 (HT 1848) - Ariens High Sierra 48" Garden Tractor, 18hp Briggs & Stratton, Hydro (SN: 000101 & Above) Hydro Drive Shift Parts Diagram

High Sierra 48" Garden Tractor, 18hp Briggs & Stratton, Hydro

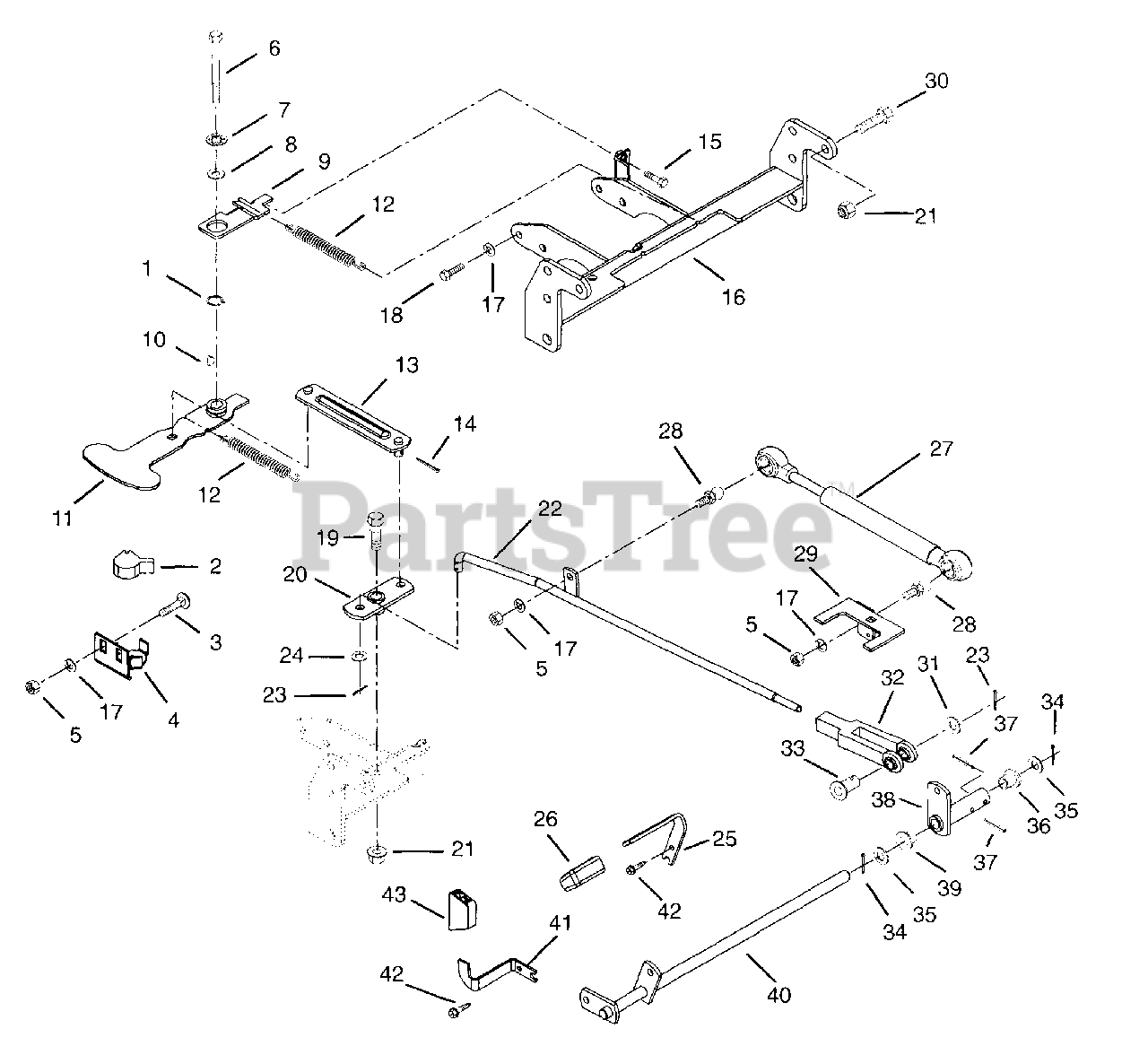

Hydro Drive Shift Parts Diagram

  • Title

1

Ariens 05702600

RG-RTNG-EXT .875X.042

$2.49

$

Usually ships in 4-12 days

0

2

Ariens 03359700

MAGNET

$

$

Not available

3

Ariens 06212200

@BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

$1.49

$

In Stock, Qty 20+

0

4

Ariens 03357700

MOUNT - MAGNET

$

$

Not available

5

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

6

Ariens 05952500

@BLT-HEX .25-20X1.50 GR5 YWZC
(Superseded to 05901739)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 06306800

@WSHR-LK-EXT.262X.502X.026YWZC
(Superseded to 06300118)

$0.99

$

Usually ships in 4-12 days

0

8

Ariens 06435800

@WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

9

Ariens 03358400

ARM, NEUTRAL

$5.99

$

Usually ships in 4-12 days

0

10

Ariens 06600600

KEY-WDRF .125X.500X.203 SAE 3

$1.49

$

Usually ships in 4-12 days

0

11

Ariens 03358000

ARM, NEUTRAL CONTROL

$6.99

$

Usually ships in 4-12 days

0

12

Ariens 08320200

SG-TENS .085X.60X5.13 WLD8.3

$13.99

$

Usually ships in 4-12 days

0

13

Ariens 03356900

LINK, SHIFT

$5.99

$

Usually ships in 4-12 days

0

14

Ariens 06707300

@PIN-CTR .12X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, Qty 5

0

15

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 03352800

MOUNT, TORQUE

$20.99

$

Usually ships in 4-12 days

0

17

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 20+

0

18

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 07023400

BLT-SHLDR .38-16X1.25

$34.99

$

In Stock, only 1 left!

0

20

Ariens 03356700

BELLCRANK - SHIFT

$

$

Not available

21

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

22

Ariens 03356600

ROD - SHIFT

$

$

Not available

23

Ariens 06706900

@PIN-CTR .09X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, Qty 10

0

24

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

25

Ariens 03650600

PEDAL - FORWARD

$

$

Not available

26

Ariens 07524000

COVER - PEDAL - FORWARD

$34.99

$

Usually ships in 4-12 days

0

27

Ariens 03652100

DAMPER - HYDRAULIC

$52.99

$

Usually ships in 4-12 days

0

28

Ariens 03652200

STUD- BALL

$3.49

$

In Stock, only 3 left!

0

29

Ariens 03357000

BRACE-DAMPER

$

$

Not available

30

Ariens 05959400

@BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

31

Ariens 06444300

WSHR-FL-STL .390X.75X.125 YWZC

$7.99

$

In Stock, Qty 8

0

32

Ariens 07014700

YOKE, .312-24 X 2.25

$14.99

$

In Stock, only 1 left!

0

33

Ariens 06811800

PIN-CLEV .312X.822 HDND PL
(Superseded to 06814000)

$3.99

$

In Stock, only 1 left!

0

34

Ariens 06707100

@PIN-CTR .12X1.00 EXTPRSQCT YZ

$0.99

$

In Stock, Qty 10

0

35

Ariens 06441100

WSHR-FL-STL .52X.827X.062 YWZC
(Superseded to 06401114)

$2.49

$

In Stock, only 2 left!

0

36

Ariens 05521100

BSHG-FLG .515X.750X.745X1.00NY

$2.49

$

In Stock, only 3 left!

0

37

Ariens 05804500

PIN-GRV .188X1.25 TP A

$10.99

$

In Stock, Qty 5

0

38

Ariens 03356800

ARM & HUB - SHIFT

$5.99

$

Usually ships in 4-12 days

0

39

Ariens 05520600

BSHG-FLG .502X1X.750

$9.49

$

In Stock, Qty 9

0

40

Ariens 03651800

SHAFT - PEDAL

$

$

Not available

41

Ariens 03650700

PEDAL - REVERSE

$

$

Not available

42

Ariens 07414100

@SCR-TAP .38-16X1.00 HWH TR YZ
(Superseded to 07417500)

$3.99

$

In Stock, only 2 left!

0

43

Ariens 07524400

COVER - PEDAL - REVERSE

$

$

Not available
