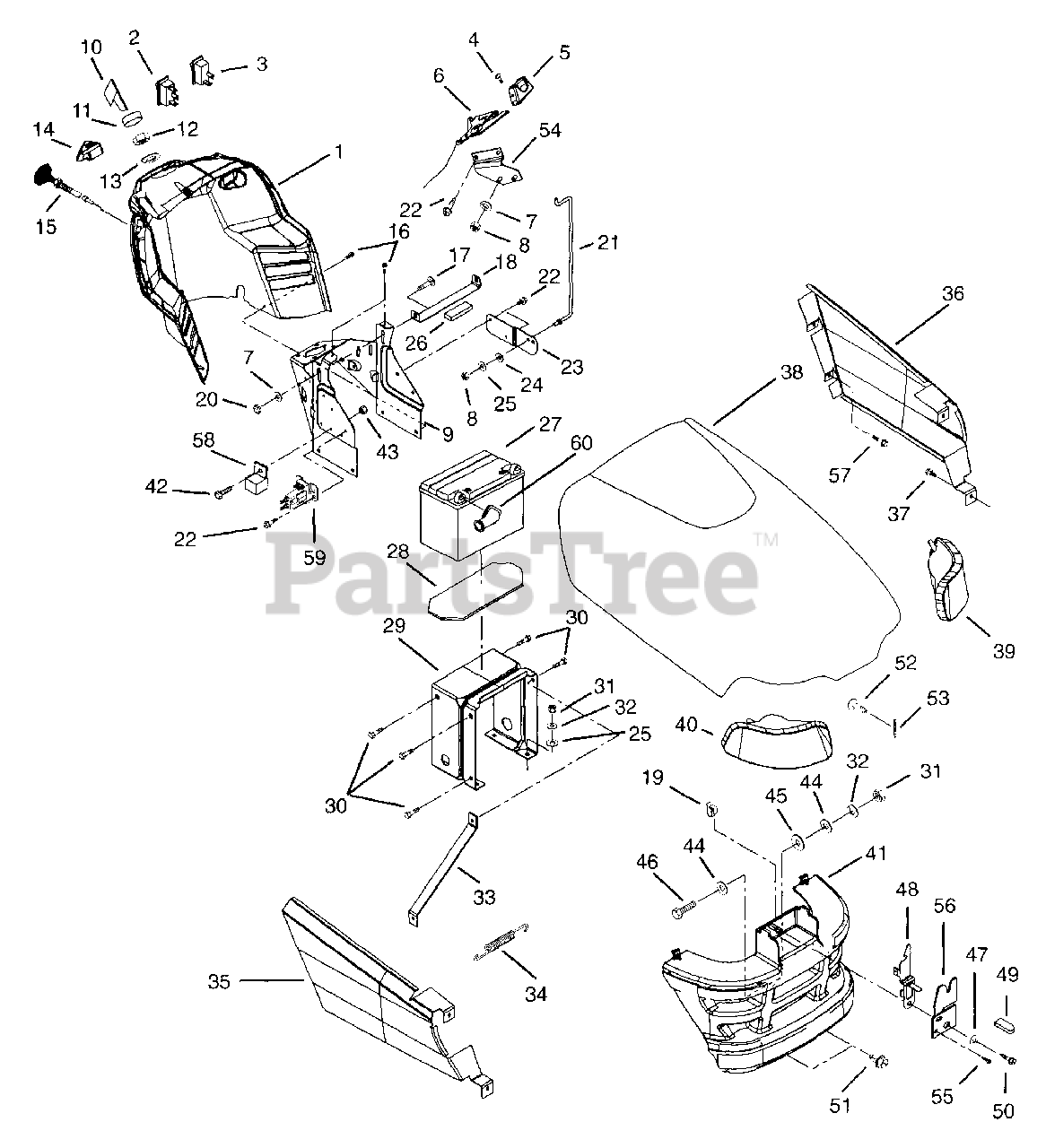

934025 (HT 1848) - Ariens High Sierra 48" Garden Tractor, 18hp Briggs & Stratton, Hydro (SN: 000101 & Above) Hood And Dash Parts Diagram

High Sierra 48" Garden Tractor, 18hp Briggs & Stratton, Hydro

Hood And Dash Parts Diagram

  • Title

1

Ariens 03652900

DASH
(Superseded to 03679300)

$

$

Not available

2

Ariens 03656900

SWITCH - CRUISE

$22.99

$

Usually ships in 4-12 days

0

3

Ariens 03656800

SWITCH - LIGHT

$

$

Not available

4

Ariens 06004600

SCR-SET 10-24X.38 UNC-3A

$3.99

$

Usually ships in 4-12 days

0

5

Ariens 03653200

KNOB - THROTTLE
(Superseded to 03653259)

$

$

Not available

6

Ariens 06931300

THROTTLE CONTROL-B&S
(Superseded to 06940700)

$45.99

$

Usually ships in 4-12 days

0

7

Ariens 06436700

WSHR-FL-STL .323X.625X.062 YWZ
(Superseded to 06401002)

$1.49

$

In Stock, only 2 left!

0

8

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

9

Ariens 03357600

SUPPORT - DASH - TOP

$

$

Not available

10

Ariens 02460700

KEY -W/CAP

$7.99

$

In Stock, Qty 20+

0

11

Ariens 07517700

CAP - IGNITION SWITCH

$3.99

$

Usually ships in 4-12 days

0

12

Ariens 06517400

NUT- PANEL .562-24 GRECO

$20.99

$

In Stock, only 1 left!

0

13

Ariens 06306900

WSHR-LK-INT .625X.045 YWZC
(Superseded to 06300124)

$3.99

$

Usually ships in 4-12 days

0

14

Ariens 03659000

PTO KNOB/ SHAFT ASSY
(Superseded to 03659059)

$

$

Not available

15

Ariens 06918300

CHOKE CABLE

$

$

Not available

16

Ariens 07406900

SCR-TAP 10-24X.484 HWH TR

$2.49

$

Usually ships in 4-12 days

0

17

Ariens 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

18

Ariens 03651400

HOLDDOWN - BATTERY

$34.99

$

Usually ships in 4-12 days

0

19

Ariens 07008400

CLIP-HARNESS TINNERMAN

$

$

Not available

20

Ariens 06530200

@NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

21

Ariens 03656600

ROD - HOOD PROP

$

$

Not available

22

Ariens 07411600

@SCR-TAP .25-20X.37 HWH YWZ TR
(Superseded to 07400125)

$0.99

$

In Stock, Qty 20+

0

23

Ariens 03656700

MOUNT - PROP ROD

$

$

Not available

24

Ariens 01320200

WAVE WASHER .390X.655X.110

$3.49

$

In Stock, Qty 7

0

25

Ariens 06435800

@WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

26

Ariens 03645700

PAD, FOAM

$26.99

$

Usually ships in 4-12 days

0

27

Ariens 03634400

BATTERY W/TUBE
(Superseded to 03621100)

$

$

Not available

28

Ariens 02530700

RUBBER PAD

$

$

Not available

29

Ariens 03651200

SUPPORT DASH BASE

$

$

Not available

30

Ariens 07413400

SCR-TAP .312-18X.50 HWH TR BL

$

$

Not available

31

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

32

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 20+

0

33

Ariens 03651300

BRACE

$

$

Not available

34

Ariens 08314900

SG-TENS .035X.45X2.75 WLD 3.5

$13.99

$

In Stock, only 1 left!

0

35

Ariens 03655100

SIDE PANEL- RH
(Superseded to 03673351)

$56.99

$

Usually ships in 4-12 days

0

36

Ariens 03655200

SIDE PANEL- LH
(Superseded to 03673451)

$62.99

$

Usually ships in 4-12 days

0

37

Ariens 07412500

SCR-TAP 12-16X.500 HI-LOTPHBL

$

$

Not available

38

Ariens 53605800

HOOD WITH DECALS
(Superseded to 53606500)

$

$

Not available

39

Ariens 03647300

HEADLIGHT- LH

$

$

Not available

40

Ariens 03647200

HEADLIGHT- RH

$

$

Not available

41

Ariens 03665800

GRILLE
(Superseded to 03679200)

$

$

Not available

42

Ariens 05928100

BLT-HEX 10-24X1.25 PL

$

$

Not available

43

Ariens 06536000

@NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

44

Ariens 06437500

WSHR-FL-STL .328X1.0X.094 YWZC
(Superseded to 06401027)

$3.99

$

In Stock, only 3 left!

0

45

Ariens 06435500

WSHR-FL-NYL .390X1.000X.062

$2.49

$

Usually ships in 4-12 days

0

46

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

47

Ariens 06440600

WSHR-FL-STL .281X1.250X.048 BL
(Superseded to 06403700)

$

$

Not available

48

Ariens 03655000

HOOD LATCH

$

$

Not available

49

Ariens 07526700

GRIP .062 X .375 X 1.000 RE

$

$

Not available

50

Ariens 07413300

SCR-TAP 12-24X.50 HWH TR BLACK
(Superseded to 07411900)

$2.49

$

In Stock, Qty 11

0

51

Ariens 07413400

SCR-TAP .312-18X.50 HWH TR BL

$

$

Not available

52

Ariens 00283500

PIN, CLEVIS .243/.248X1.50 YWZ

$3.49

$

Usually ships in 4-12 days

0

53

Ariens 06706900

@PIN-CTR .09X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, Qty 10

0

54

Ariens 03358200

BRACE-THROTTLE CONTROL

$

$

Not available

55

Ariens 07406400

SCR-TAP 10-12X.50 CRPH PL A BL

$3.49

$

Usually ships in 4-12 days

0

56

Ariens 03665900

LOCATOR- HOOD

$

$

Not available

57

Ariens 07415000

SCR-TAP 10-16X.62 SLPH AB YWZC

$

$

Not available

58

Ariens 03042800

RELAY
(Superseded to 00432101)

$22.99

$

In Stock, Qty 20+

0

59

Ariens 03492300

SOLENOID
(Superseded to 03551000)

$34.99

$

In Stock, Qty 14

0

60

Ariens 07505700

INSULATOR

$9.49

$

Usually ships in 4-12 days

0
