934025 (HT 1848) - Ariens High Sierra 48" Garden Tractor, 18hp Briggs & Stratton, Hydro (SN: 000101 & Above) Frame And Rear Deck Parts Diagram

High Sierra 48" Garden Tractor, 18hp Briggs & Stratton, Hydro

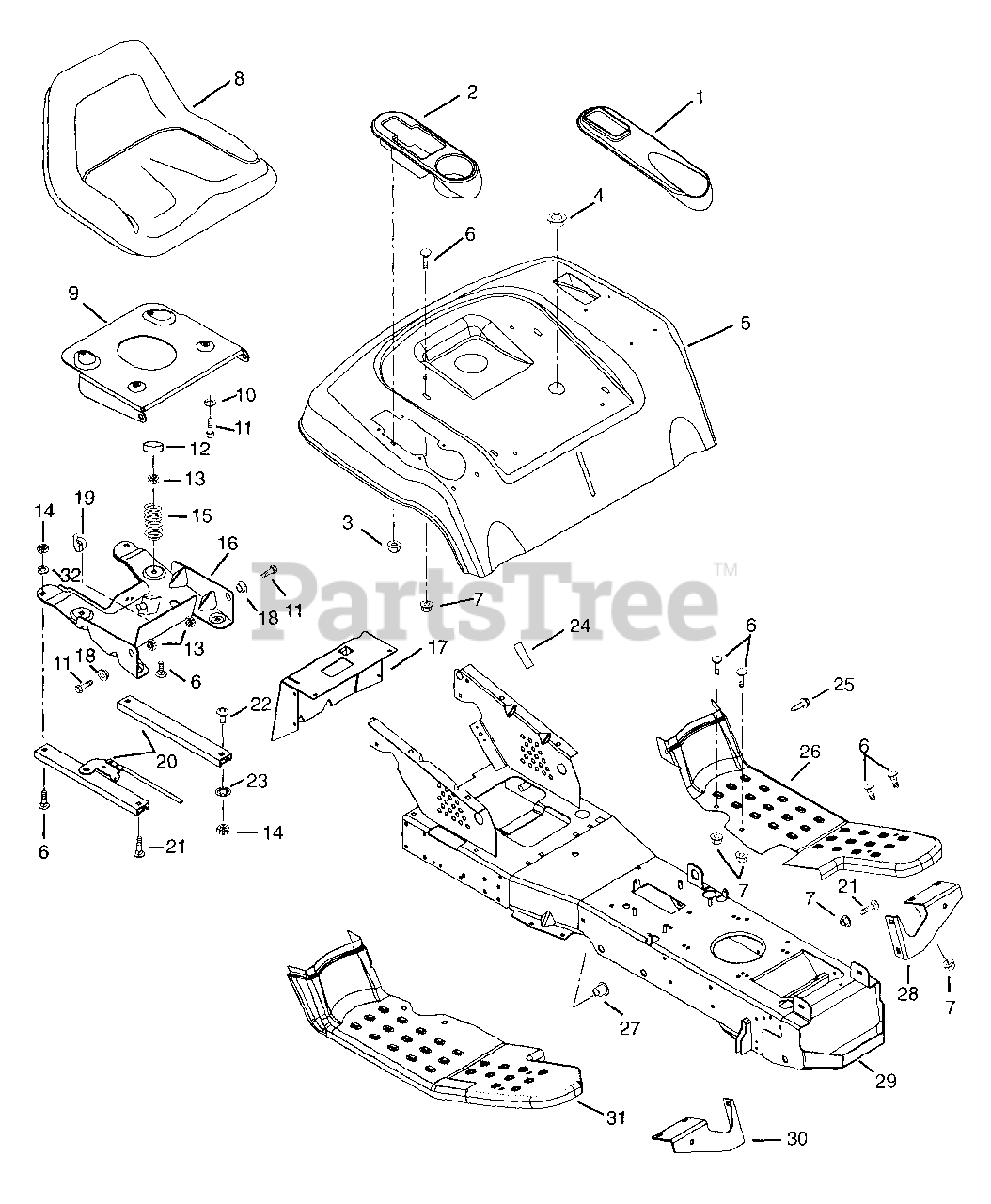

Frame And Rear Deck Parts Diagram

  • Title
1

Ariens 03650300

INSERT- LIFT

$

$

Not available

2

Ariens 03652500

INSERT - BEVERAGE

$

$

Not available

3

Ariens 07008000

NUT-SELF-THRDNG FITS.25 STUDPL

$2.99

$

In Stock, only 1 left!

0

4

Ariens 07521000

SNAP BUSHING

$3.49

$

Usually ships in 4-12 days

0

5

Ariens 03649400

REAR DECK
(Superseded to 03649459)

$

$

Not available

6

Ariens 06212200

@BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 03643000

SEAT V-1500 HI WELTLESS
(Superseded to 00366300)

$

$

Not available

9

Ariens 03650400

SEAT PIVOT PLATE

$

$

Not available

10

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 20+

0

11

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 07521600

TUBE CAP

$1.49

$

In Stock, Qty 6

0

13

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

15

Ariens 08328200

SG-COMP .148X1.23X2.41 WLD87

$15.99

$

In Stock, only 2 left!

0

16

Ariens 03618100

BOX, SEAT

$

$

Not available

17

Ariens 03354000

DRAWBAR

$

$

Not available

18

Ariens 05516200

BSHG-FLG .325X.465X.333X.685

$22.99

$

Usually ships in 4-12 days

0

19

Ariens 07008400

CLIP-HARNESS TINNERMAN

$

$

Not available

20

Ariens 03600800

SEAT SLIDES -(RAME TAK-3010-4)

$104.99

$

Usually ships in 4-12 days

0

21

Ariens 06214100

BLT-RDHDSQSHK.31-18X.75 GR2 YW
(Superseded to 06200309)

$2.49

$

In Stock, Qty 20+

0

22

Ariens 07008100

SCR-CAP BTHD.31-18X.50 GR5 YZ

$

$

Not available

23

Ariens 06301800

WSHR-LK-INT .313X.030 PL
(Superseded to 06310500)

$0.99

$

In Stock, only 3 left!

0

24

Ariens 03645700

PAD, FOAM

$26.99

$

Usually ships in 4-12 days

0

25

Ariens 07411500

@SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

26

Ariens 03649300

FOOTREST- LH
(Superseded to 03649359)

$

$

Not available

27

Ariens 05521100

BSHG-FLG .515X.750X.745X1.00NY

$2.49

$

In Stock, only 3 left!

0

28

Ariens 03649800

BRACE - FOOT REST L.H.

$

$

Not available

29

Ariens 03355600

FRAME, MAIN
(Superseded to 03673551)

$

$

Not available

30

Ariens 03649900

BRACE - FOOT REST R.H.

$

$

Not available

31

Ariens 03649200

FOOTREST- RH HYDRO

$

$

Not available

32

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0
