934025 (HT 1848) - Ariens High Sierra 48" Garden Tractor, 18hp Briggs & Stratton, Hydro (SN: 000101 & Above) Engine And Drive Belt Parts Diagram

High Sierra 48" Garden Tractor, 18hp Briggs & Stratton, Hydro

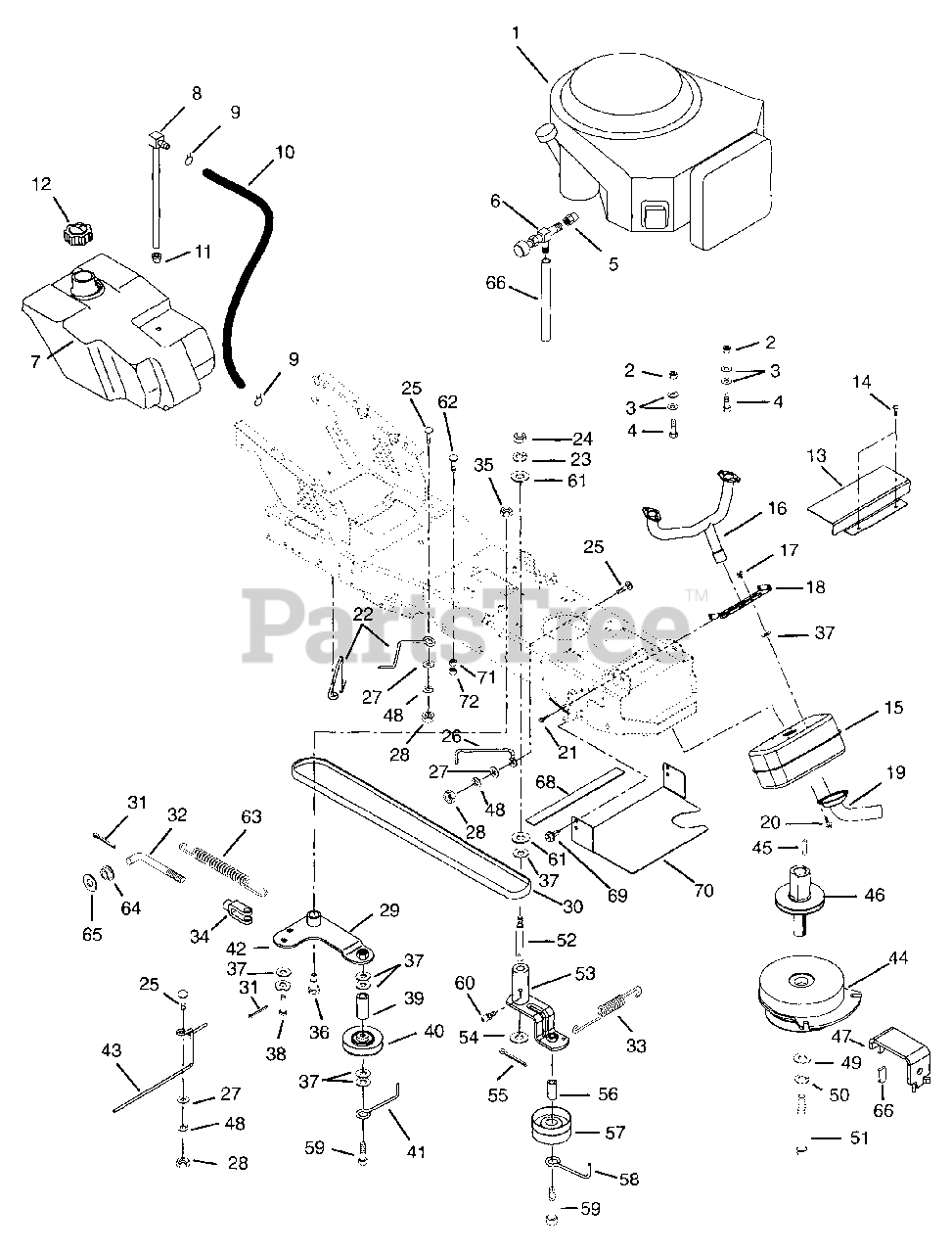

Engine And Drive Belt Parts Diagram

  • Title

1

Ariens 08235300

18 HP B&S V-TWIN UT

$

$

Not available

2

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

3

Ariens 06439400

WSHR-FL-STL .328X.875X.062YWZC

$3.99

$

Usually ships in 4-12 days

0

4

Ariens 05952400

@BLT-HEX .31-18X1.50 GR5 YWZC
(Superseded to 05901710)

$1.49

$

In Stock, Qty 13

0

5

Ariens 03493100

ADAPTER, OIL DRAIN

$5.99

$

Usually ships in 4-12 days

0

6

Ariens 03493200

COCK, OIL DRAIN
(Superseded to 00429000)

$39.99

$

In Stock, only 1 left!

0

7

Ariens 03627500

FUEL TANK

$

$

Not available

8

Ariens 03606500

TANK FITTING

$

$

Not available

9

Ariens 02917200

CLAMP-HOSE WIR.490/.510X.092#8
(Superseded to 06939100)

$3.99

$

In Stock, Qty 10

0

10

Ariens 03659400

HOSE- FUEL LINE 48.00"

$13.99

$

Usually ships in 4-12 days

0

11

Ariens 07511400

BSHG-FLG .375 X 1.062 X .625 R

$3.49

$

In Stock, Qty 20+

0

12

Ariens 01538400

FUEL CAP

$15.99

$

Usually ships in 4-12 days

0

13

Ariens 03358300

SHIELD - HEAT

$

$

Not available

14

Ariens 07411500

@SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

15

Ariens 03654300

MUFFLER - EXHAUST

$157.99

$

In Stock, only 2 left!

0

16

Ariens 03648700

PIPE - EXHAUST TWIN B&S

$

$

Not available

17

Ariens 07414600

@SCR-TAP 12-24X.75 HWH YWZC

$3.49

$

Usually ships in 4-12 days

0

18

Ariens 03648600

BRACKET - MUFFLER

$

$

Not available

19

Ariens 03656300

DEFLECTOR - EXHAUST

$57.99

$

Usually ships in 4-12 days

0

20

Ariens 07414500

SCR-TAP 8-32X.38 SL HWH YWZC

$2.49

$

Usually ships in 4-12 days

0

21

Ariens 07413400

SCR-TAP .312-18X.50 HWH TR BL

$

$

Not available

22

Ariens 03355900

BELT FINGER

$

$

Not available

23

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

24

Ariens 06529400

@NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

25

Ariens 06214100

BLT-RDHDSQSHK.31-18X.75 GR2 YW
(Superseded to 06200309)

$2.49

$

In Stock, Qty 20+

0

26

Ariens 03356000

BELT FINGER

$5.99

$

Usually ships in 4-12 days

0

27

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

28

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

29

Ariens 03631200

IDLER PIVOT ARM

$61.99

$

Usually ships in 4-12 days

0

30

Ariens 07227200

V-BELT, 3L-RAW EDGE

$55.99

$

Usually ships in 4-12 days

0

31

Ariens 06706900

@PIN-CTR .09X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, Qty 10

0

32

Ariens 03647800

LINK

$

$

Not available

33

Ariens 08334700

SPRING, EXT
(Superseded to 08300512)

$17.99

$

In Stock, Qty 20+

0

34

Ariens 07014700

YOKE, .312-24 X 2.25

$14.99

$

In Stock, only 1 left!

0

35

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

36

Ariens 07023400

BLT-SHLDR .38-16X1.25

$34.99

$

In Stock, only 1 left!

0

37

Ariens 06444300

WSHR-FL-STL .390X.75X.125 YWZC

$7.99

$

In Stock, Qty 8

0

38

Ariens 06811800

PIN-CLEV .312X.822 HDND PL
(Superseded to 06814000)

$3.99

$

In Stock, only 1 left!

0

39

Ariens 03353800

TUBE .380 X .625 X 1.360

$

$

Not available

40

Ariens 07309200

IDLER-V 3X.38

$37.99

$

In Stock, only 2 left!

0

41

Ariens 03638300

FINGER - BELT

$51.99

$

Usually ships in 4-12 days

0

42

Ariens 00325400

WAVE WASHER .531X.781X.125FH

$0.99

$

In Stock, Qty 20+

0

43

Ariens 03355800

BELT FINGER - CENTER

$

$

Not available

44

Ariens 03357900

CLUTCH, ELECTRIC - WARNER

$491.99

$

In Stock, only 1 left!

0

45

Ariens 06603400

KEY-SQ .25 X 1.25 X .25 SAE

$3.99

$

In Stock, Qty 11

0

46

Ariens 03353500

SHAFT, SHEAVE EXT.

$

$

Not available

47

Ariens 03357500

ANCHOR- CLUTCH

$58.99

$

In Stock, only 1 left!

0

48

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 20+

0

49

Ariens 06443500

WSHR-FL-STL.463X1.375X.25 YWZC

$6.99

$

Usually ships in 4-12 days

0

50

Ariens 06310700

WSHR-LK .438X.133 HVY YWZC

$2.99

$

Usually ships in 4-12 days

0

51

Ariens 05969000

BLT-HEX .44-20X5.50 GR5 YWZC

$7.99

$

In Stock, only 1 left!

0

52

Ariens 03622900

SHOULDER STUD

$34.99

$

In Stock, only 2 left!

0

53

Ariens 03347700

ARM - IDLER PIVOT

$

$

Not available

54

Ariens 06441100

WSHR-FL-STL .52X.827X.062 YWZC
(Superseded to 06401114)

$2.49

$

In Stock, only 2 left!

0

55

Ariens 06712700

@PIN-CTR .18X1.25 EXTPRSQCT YZ

$1.99

$

In Stock, only 3 left!

0

56

Ariens 03638400

TUBE .380 X .625 X 1.620

$24.99

$

Usually ships in 4-12 days

0

57

Ariens 07308800

IDLER-FLAT 3.25 X .38 NWHAMSHR

$39.99

$

In Stock, Qty 8

0

58

Ariens 03648300

FINGER - BELT

$21.99

$

In Stock, only 1 left!

0

59

Ariens 05960900

@BLT-HEX .38-16X3.50 GR5 YWZC
(Superseded to 05901818)

$3.99

$

In Stock, Qty 20+

0

60

Ariens 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available

61

Ariens 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

62

Ariens 06221800

BLT-RDHDSQNK .31-18X1.0 SHTYZ
(Superseded to 06200237)

$2.49

$

In Stock, only 3 left!

0

63

Ariens 08333200

SG-TENS .105X.85X5.00 WLD 40

$14.99

$

In Stock, only 1 left!

0

64

Ariens 05517500

BSHG-FLG .320X.620X.312 NY

$18.99

$

Usually ships in 4-12 days

0

65

Ariens 06436600

WSHR-FL-STL .505X.880X.072 YWZ
(Superseded to 06401126)

$3.99

$

Usually ships in 4-12 days

0

66

Ariens 01523400

TUBE OIL DRAIN

$

$

Not available

67

Ariens 07526700

GRIP .062 X .375 X 1.000 RE

$

$

Not available

68

Ariens 03658900

HEAT SHIELD- FABRIC 1X10.75

$

$

Not available

69

Ariens 07414600

@SCR-TAP 12-24X.75 HWH YWZC

$3.49

$

Usually ships in 4-12 days

0

70

Ariens 03657800

SHIELD - HEAT
(Superseded to 53407200)

$

$

Not available

71

Ariens 06506200

NUT-LK-NYL.312-18 PL
(Superseded to 06530200)

$0.99

$

In Stock, Qty 20+

0

72

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0
