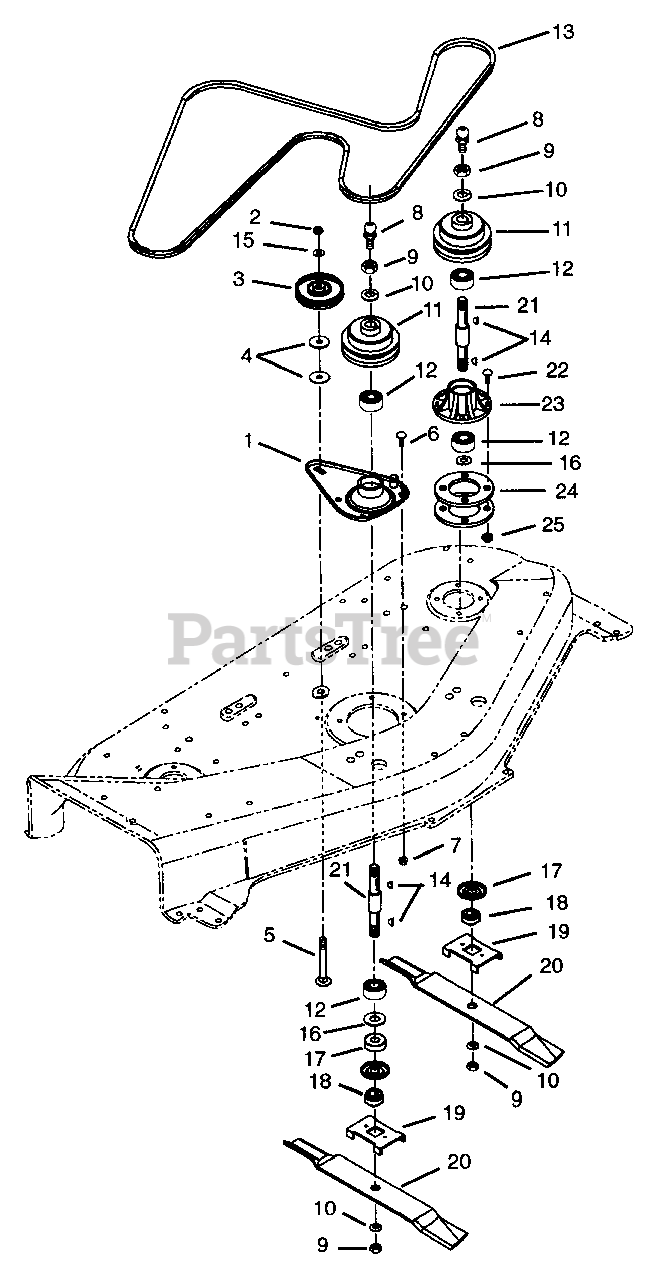

934023 (HT 1848) - Ariens High Sierra 48" Garden Tractor, 18hp Briggs & Stratton, Hydro (SN: 000101 & Above) Mower Spindle Parts Diagram

High Sierra 48" Garden Tractor, 18hp Briggs & Stratton, Hydro

Mower Spindle Parts Diagram

  • Title
1

Ariens 03354600

HOUSING, SPINDLE

$64.73

$

Usually ships in 4-12 days

0

2

Ariens 06513500

NUT-LK-NYL .375-16 PL
(Superseded to 06535800)

$2.49

$

In Stock, only 3 left!

0

3

Ariens 07312500

IDLER-FLAT 4.00 X .38 NWHAMSHR
(Superseded to 07300101)

$62.99

$

In Stock, Qty 20+

0

4

Ariens 06424800

WSHR-HDND-THR .390X1.50X.125PL

$9.49

$

Usually ships in 4-12 days

0

5

Ariens 06217900

BLT-RDHDSQNK .38-16X2.00
(Superseded to 06224300)

$3.99

$

In Stock, only 3 left!

0

6

Ariens 06201900

BLT-RDHDSQNK .38-16X.62 GR5 PL
(Superseded to 06223900)

$1.49

$

In Stock, only 4 left!

0

7

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available

9

Ariens 06502500

NUT-JAM .75-10 PL
(Superseded to 06537700)

$2.49

$

In Stock, only 2 left!

0

10

Ariens 06300800

WSHR-LK .750X.188 MED PL
(Superseded to 06310300)

$1.49

$

In Stock, Qty 20+

0

11

$187.99

$

Usually ships in 4-12 days

0

12

Ariens 05412000

BRG-BALL .750X1.781X.61

$13.99

$

In Stock, Qty 7

0

13

Ariens 07227400

V-BELT, HA-RAW EDGE

$68.99

$

Usually ships in 4-12 days

0

14

Ariens 06601400

KEY-WDRF .188X.625X.25 SAE 61

$2.49

$

In Stock, Qty 6

0

15

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 06404100

WSHR-FL-STL .754X1.000X.032
(Superseded to 06444100)

$2.99

$

In Stock, Qty 17

0

17

Ariens 00341900

BEARING SLINGER

$22.99

$

In Stock, only 2 left!

0

18

Ariens 03037500

RETAINER HUB

$71.99

$

In Stock, only 2 left!

0

19

Ariens 03485500

BLADE TRAY 48

$20.99

$

In Stock, only 1 left!

0

20

$23.99

$

Usually ships in 4-12 days

0

21

Ariens 53115100

SPINDLE SHAFT W/ZERK

$74.99

$

In Stock, only 1 left!

0

22

Ariens 06203500

BLT-RDHDSQNK .375-16X.75 PL
(Superseded to 06223900)

$1.49

$

In Stock, only 4 left!

0

23

Ariens 03433500

SPINDLE HOUSING

$

$

Not available

24

Ariens 03433600

SPACER, SPINDLE

$

$

Not available

25

Ariens 06506000

NUT-LK-JAM-CTR .375-16 PL
(Superseded to 06537200)

$0.99

$

In Stock, Qty 20+

0

26

Ariens 07227400

V-BELT, HA-RAW EDGE

$68.99

$

Usually ships in 4-12 days

0

27

Ariens 07012500

FTG,LUBE 1/8

$3.99

$

In Stock, only 2 left!
