934022 - Gravely GEM Lawn Tractor, 16hp Briggs & Stratton, Hydro Drive (SN: 000101 & Above) FRAME Parts Diagram

GEM Lawn Tractor, 16hp Briggs & Stratton, Hydro Drive

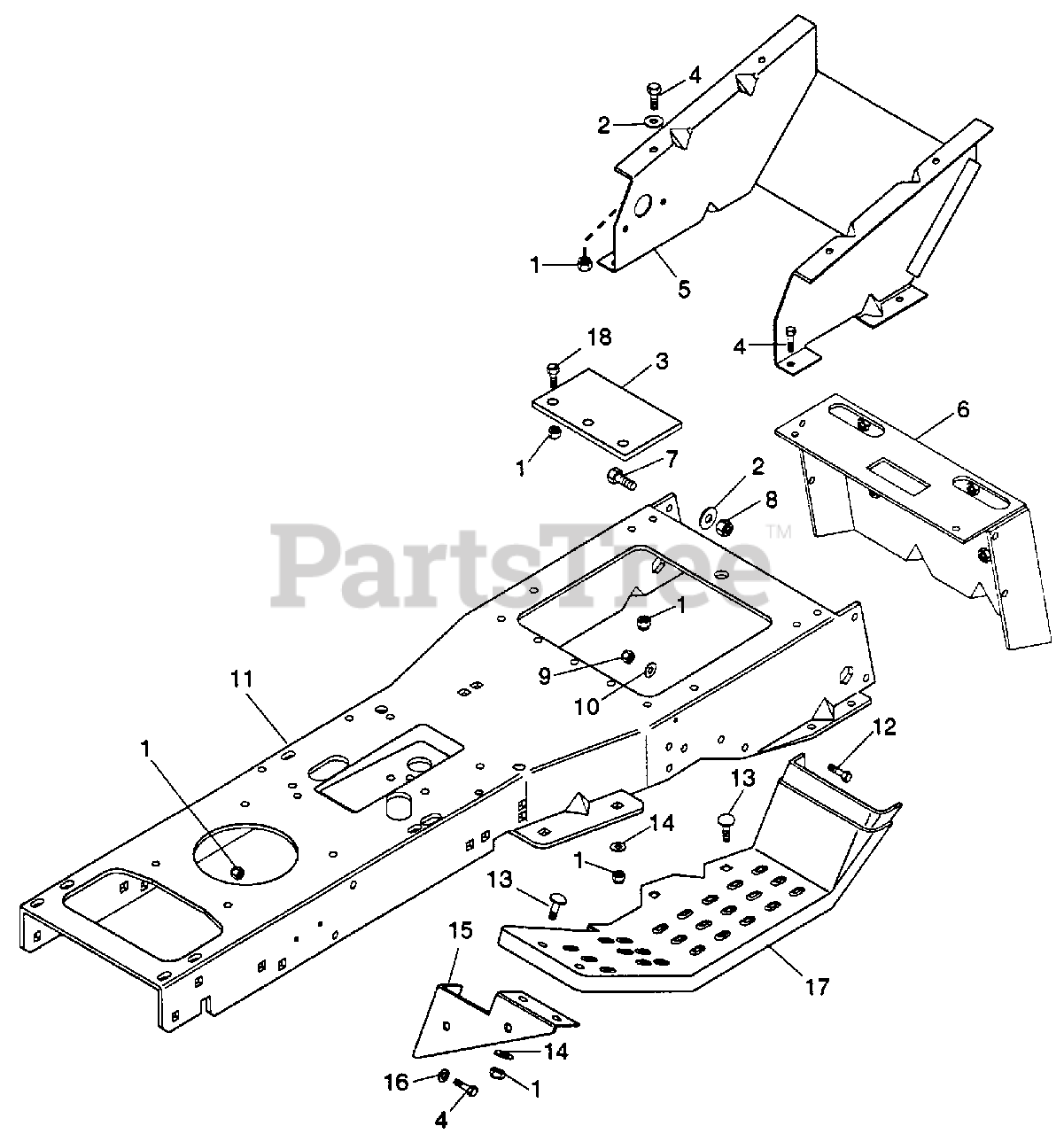

FRAME Parts Diagram

  • Title
1

Gravely 419455

Nut-Lk-Nly .312 - 18 Pl
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

2

Gravely 446470

Washer, Flt .375 x 1.125 x .065
(Superseded to 06401139)

$2.49

$

In Stock, only 2 left!

0

3

Gravely 034973

Support Plate

$

$

Not available

4

062003

Blt-Rdhdsqnk .38-16 x 1.75 Pl

$

$

Not available

5

Gravely 036176

Torque Strap - R
(Superseded to 07114800)

$

$

Not available

6

Gravely 049363

Tailboard
(Superseded to 03448900)

$

$

Not available

7

Gravely 180121

Blt-Hex .380 - 16 x .875
(Superseded to 05932600)

$2.49

$

In Stock, only 1 left!

0

8

Gravely 456004

Nut-Lk-Nyl .375 - 16 Pl
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

9

Gravely 419454

Nut-Lk-Nyl .250 - 20 Pl
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

10

Gravely 120392

Wshr-Fl-Stl .281 x .625 x.065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 051387

Frame
(Superseded to 03345700)

$

$

Not available

12

Gravely 180020

Blt-Hex .25-20 x .75 Pl Gr 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 126358

Blt-Carriage .31-18 x 1.0
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 120393

Wshr-Fl-Stl .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 036102

L. Foot Rest Brace

$

$

Not available

15

Gravely 036103

R. Foot Rest Brace

$

$

Not available

16

Gravely 446354

Wshr-Fl-Stl .313 x .875 x .065
(Superseded to 06430700)

$2.99

$

Usually ships in 4-12 days

0

17

Gravely 036051

Footrest LH
(Superseded to 03505700)

$

$

Not available

17

Gravely 036050

Footrest RH
(Superseded to 03504900)

$

$

Not available

18

Gravely 180077

Blt-Hex .31-18 x .75 Pl Gr 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

NS

Gravely 050680

Decal - Trans Lock Out
(Superseded to 07768300)

$

$

Not available

NS

Gravely 052625

Decal - Caution
(Superseded to 07820500)

$

$

Not available
