934022 - Gravely GEM Lawn Tractor, 16hp Briggs & Stratton, Hydro Drive (SN: 000101 & Above) ELECTRICAL SYSTEM Parts Diagram

GEM Lawn Tractor, 16hp Briggs & Stratton, Hydro Drive

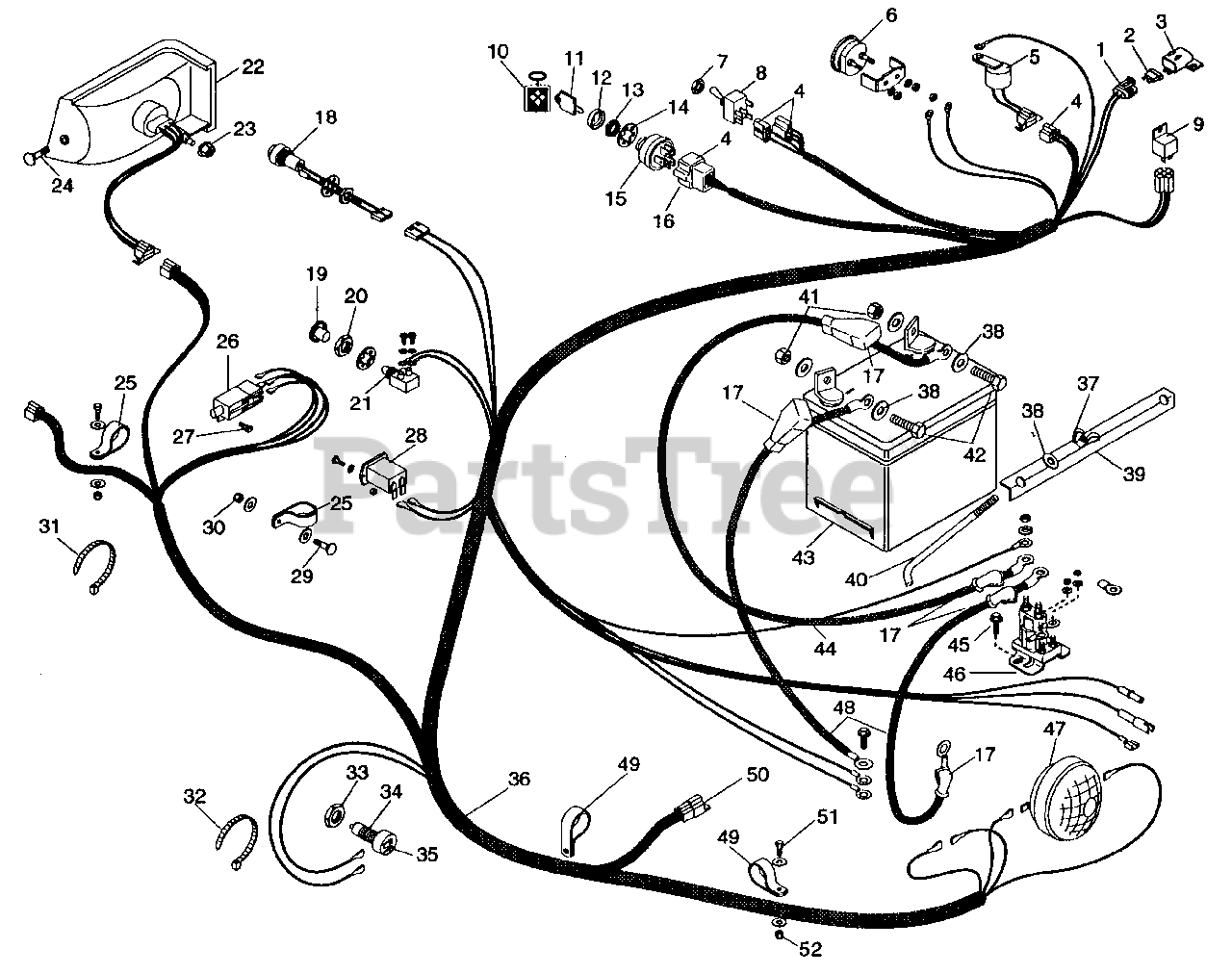

ELECTRICAL SYSTEM Parts Diagram

  • Title

1

Gravely 045923

Term., For 10-12 Ga Wire
(Superseded to 20823001)

$

$

Not available

2

Gravely 045037

Fuse, 25 AMP
(Superseded to 08961800)

$3.99

$

In Stock, only 4 left!

0

3

Gravely 045921

Cvr
(Superseded to 20822800)

$

$

Not available

4

Gravely 038059

Terminal
(Superseded to 08540001)

$3.99

$

In Stock, Qty 5

0

5

Gravely 050590

Module

$

$

Not available

6

Gravely 021848

Gauge-Ammeter
(Superseded to 03490800)

$

$

Not available

7

Gravely 045987

Nut .50-27
(Superseded to 06520700)

$

$

Not available

8

Gravely 045848

Switch Assembly
(Superseded to 03454900)

$56.99

$

In Stock, only 1 left!

0

9

Gravely 040216

Relay
(Superseded to 00432101)

$22.99

$

In Stock, Qty 20+

0

10

Gravely 045842

Key Chain
(Superseded to 03490000)

$

$

Not available

11

Gravely 045488

Ignition Switch Key
(Superseded to 02460700)

$7.99

$

In Stock, Qty 20+

0

12

Gravely 045490

Cap-Ignition Switch
(Superseded to 07517700)

$3.99

$

In Stock, Qty 9

0

13

Gravely 045489

Nut-Panel .562-24 Greco
(Superseded to 06517400)

$20.99

$

In Stock, only 1 left!

0

14

Gravely 019667

Wshr-Lock Int .563 x .040 Pl
(Superseded to 06310900)

$2.49

$

In Stock, only 2 left!

0

15

Gravely 019223

Ignition Switch
(Superseded to 59211800)

$68.99

$

In Stock, Qty 13

0

16

Gravely 038058

Connector
(Superseded to 20645101)

$7.99

$

In Stock, Qty 7

0

17

Gravely 033847

Boot, Insulator
(Superseded to 03384700)

$

$

Not available

18

Gravely 048543

Light Indicator
(Superseded to 03490600)

$

$

Not available

19

Gravely 038186

Knob, Light Switch
(Superseded to 07516400)

$

$

Not available

20

Gravely 018587

Nut-Jam .375-32
(Superseded to 06520800)

$

$

Not available

21

Gravely 011337

Light Switch
(Superseded to 03490700)

$

$

Not available

22

Gravely 050152

Right Tail Light
(Superseded to 03416300)

$

$

Not available

22

Gravely 050153

Left Tail Light
(Superseded to 03416400)

$

$

Not available

23

Gravely 050378

Palnut - .25
(Superseded to 07017900)

$

$

Not available

24

Gravely 161895

Scr-Tap 10-12 x .50 Ph Cr A
(Superseded to 07410300)

$

$

Not available

25

Gravely 051895

Clamp
(Superseded to 06918200)

$

$

Not available

26

Gravely 036066

Switch Double Pole
(Superseded to 03606600)

$17.99

$

In Stock, only 1 left!

0

27

Gravely 074045

Scr-Tap 12-24 x .50 Hwh Pl
(Superseded to 07411900)

$2.49

$

In Stock, Qty 11

0

28

Gravely 038256

Hour Meter
(Superseded to 09497400)

$23.99

$

In Stock, only 2 left!

0

29

Gravely 126358

Blt-Carriage .31-18 x 1.0
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

30

Gravely 419455

Blt-Rdhdsqnk .31-18 x .885 Pl Bl
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

31

Gravely 041634

Tie Wrap, Black
(Superseded to 07519900)

$3.49

$

Usually ships in 4-12 days

0

32

Gravely 050372

Clamp, Universal
(Superseded to 07519100)

$

$

Not available

33

Gravely 039637

Nut .625-32 Pl
(Superseded to 06507100)

$3.99

$

Usually ships in 4-12 days

0

34

Gravely 039636

Boot
(Superseded to 07506300)

$

$

Not available

35

Gravely 039493

Safety Switch
(Superseded to 03110700)

$39.99

$

Usually ships in 4-12 days

0

36

Gravely 051160

Wire Harness
(Superseded to 03492600)

$

$

Not available

37

Gravely 010413

Nut-Wing .250-20
(Superseded to 06537500)

$4.99

$

In Stock, Qty 13

0

38

Gravely 120392

Wshr-Fl-Stl .281 x .625 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

39

Gravely 015258

Hold Down
(Superseded to 03494051)

$11.99

$

In Stock, only 2 left!

0

40

Gravely 015257

Tie Down
(Superseded to 03494100)

$30.99

$

Usually ships in 4-12 days

0

41

Gravely 419454

Nut-Lk-Nyl .250-20 Pl
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

42

Gravely 180020

Blt-Hex .25-20 x .75 Pl Gr 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

43

Gravely 051188

Battery
(Superseded to 09206000)

$

$

Not available

44

Gravely 047649

Cable, Starter
(Superseded to 03492500)

$21.99

$

Usually ships in 4-12 days

0

45

Gravely 045207

Scr-Tap .25-20 x .50 Hxslhdpl
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

46

Gravely 045071

Solenoid
(Superseded to 03551000)

$34.99

$

In Stock, Qty 14

0

47

Gravely 039069

Head Light
(Superseded to 03114900)

$20.99

$

Usually ships in 4-12 days

0

48

Gravely 041814

Cable, Ground
(Superseded to 03492400)

$

$

Not available

49

Gravely 050394

Clamp, Cushioned Steel
(Superseded to 06908200)

$5.99

$

Usually ships in 4-12 days

0

50

Gravely 038057

Connector
(Superseded to 20645000)

$

$

Not available

51

Gravely 180121

Blt-Hex .380-16 x .875
(Superseded to 05932600)

$2.49

$

In Stock, only 1 left!

0

52

Gravely 456004

Nut-Lk-Nyl .375-16 Pl
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0
