934020 - Ariens High Sierra Garden Tractor, 18hp Kohler, Hydro (SN: 000101 & Above) Speed Selector Parts Diagram

High Sierra Garden Tractor, 18hp Kohler, Hydro

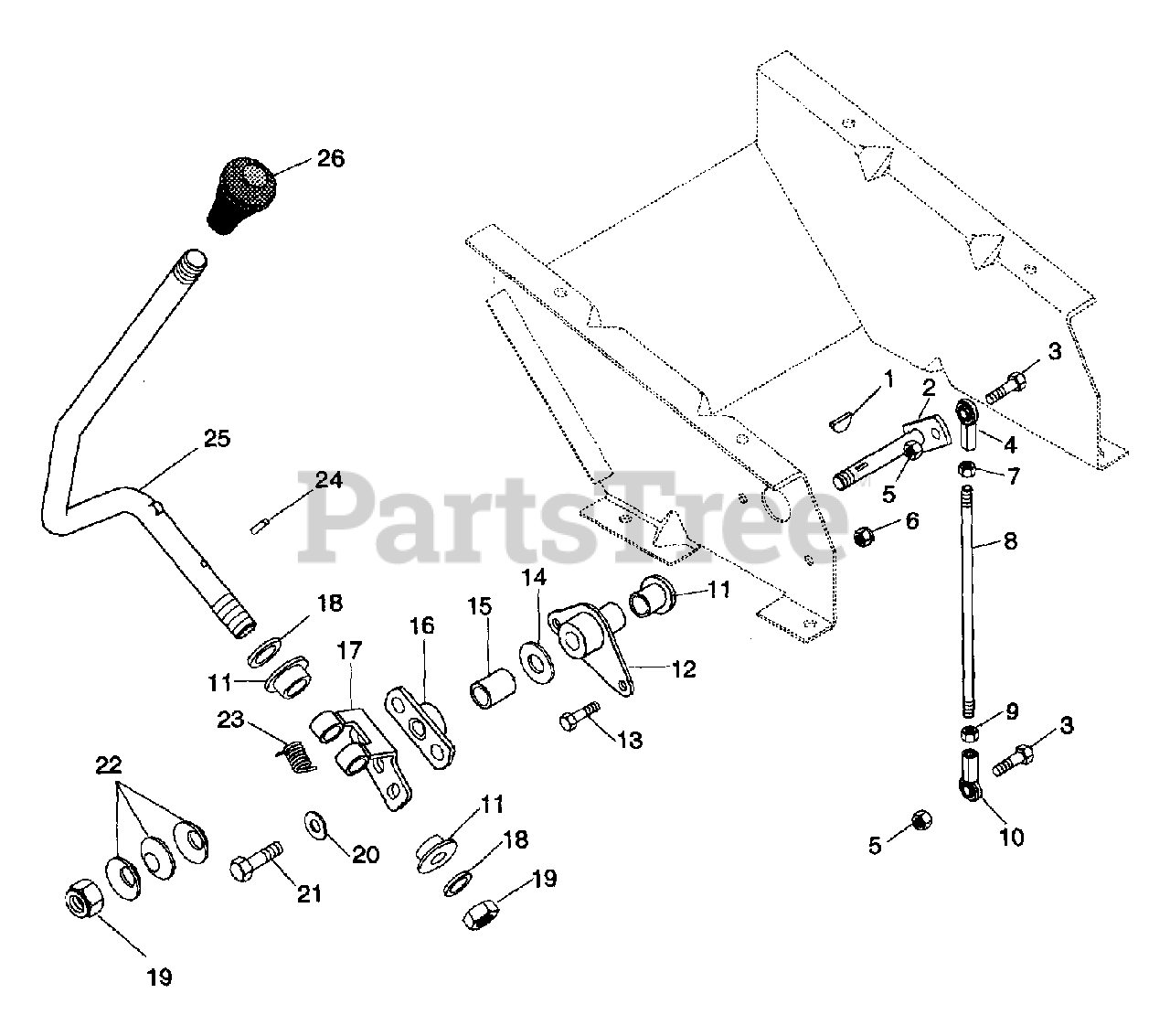

Speed Selector Parts Diagram

  • Title

1

Ariens 06600600

KEY-WDRF .125X.500X.203 SAE 3

$1.49

$

Usually ships in 4-12 days

0

2

Ariens 03612300

ROD

$

$

Not available

3

Ariens 05908300

BLT-HEX .25-20X1.00 PL GR5
(Superseded to 05947700)

$1.49

$

In Stock, Qty 9

0

4

Ariens 03573200

ROD END, 1/4 RH

$

$

Not available

5

Ariens 06506600

NUT-LK-NYL .250-20 PL
(Superseded to 06531000)

$4.99

$

Usually ships in 4-12 days

0

6

Ariens 06506200

NUT-LK-NYL.312-18 PL
(Superseded to 06530200)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 06522700

NUT-HEX .250-28
(Superseded to 06500400)

$1.99

$

Usually ships in 4-12 days

0

8

Ariens 03494700

SHIFT ROD

$

$

Not available

9

Ariens 06516800

NUT-LH .250-28 GR2 PL

$

$

Not available

10

Ariens 04535100

WSHR,SPCR - 1.08X1.50X.131

$9.49

$

Usually ships in 4-12 days

0

11

Ariens 05502500

BSHG-FLG .500X.625X.625X.875

$5.99

$

Usually ships in 4-12 days

0

12

Ariens 03612400

BRACE

$

$

Not available

13

Ariens 05913500

BLT-HEX .31-18X.75 PL GR5
(Superseded to 05947000)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 03463300

FRICTION WASHER

$

$

Not available

15

Ariens 05515900

BSHG-SLV .500X.625X.500

$6.99

$

Usually ships in 4-12 days

0

16

Ariens 03463400

ARM

$

$

Not available

17

Ariens 03450200

OUTER ARM

$

$

Not available

18

Ariens 06425300

WSHR-FL-STL.531X1.00X.063 YWZC
(Superseded to 06401115)

$0.99

$

In Stock, Qty 20+

0

19

Ariens 06512100

NUT-LK .50-20 PL
(Superseded to 06544000)

$5.99

$

Usually ships in 4-12 days

0

20

Ariens 06404300

WSHR-FL-STL.406X.812X.065PL
(Superseded to 06436200)

$0.99

$

In Stock, Qty 20+

0

21

Ariens 05914500

BLT-HEX .38-16X1.00 PL GR5
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

22

Ariens 03463500

SPRING WASHER

$

$

Not available

23

Ariens 08325700

SG_TORS .08X.56X.65

$59.99

$

Usually ships in 4-12 days

0

24

Ariens 05800900

PIN-ROLL .125X1.00

$0.99

$

In Stock, Qty 20+

0

25

Ariens 03612500

SHIFT LEVER

$

$

Not available

26

Ariens 07514500

KNOB

$23.99

$

Usually ships in 4-12 days

0
