934019 - Ariens High Sierra Garden Tractor, 16hp Kohler, Hydro (SN: 000101 & Above) Neutralizer Parts Diagram

High Sierra Garden Tractor, 16hp Kohler, Hydro

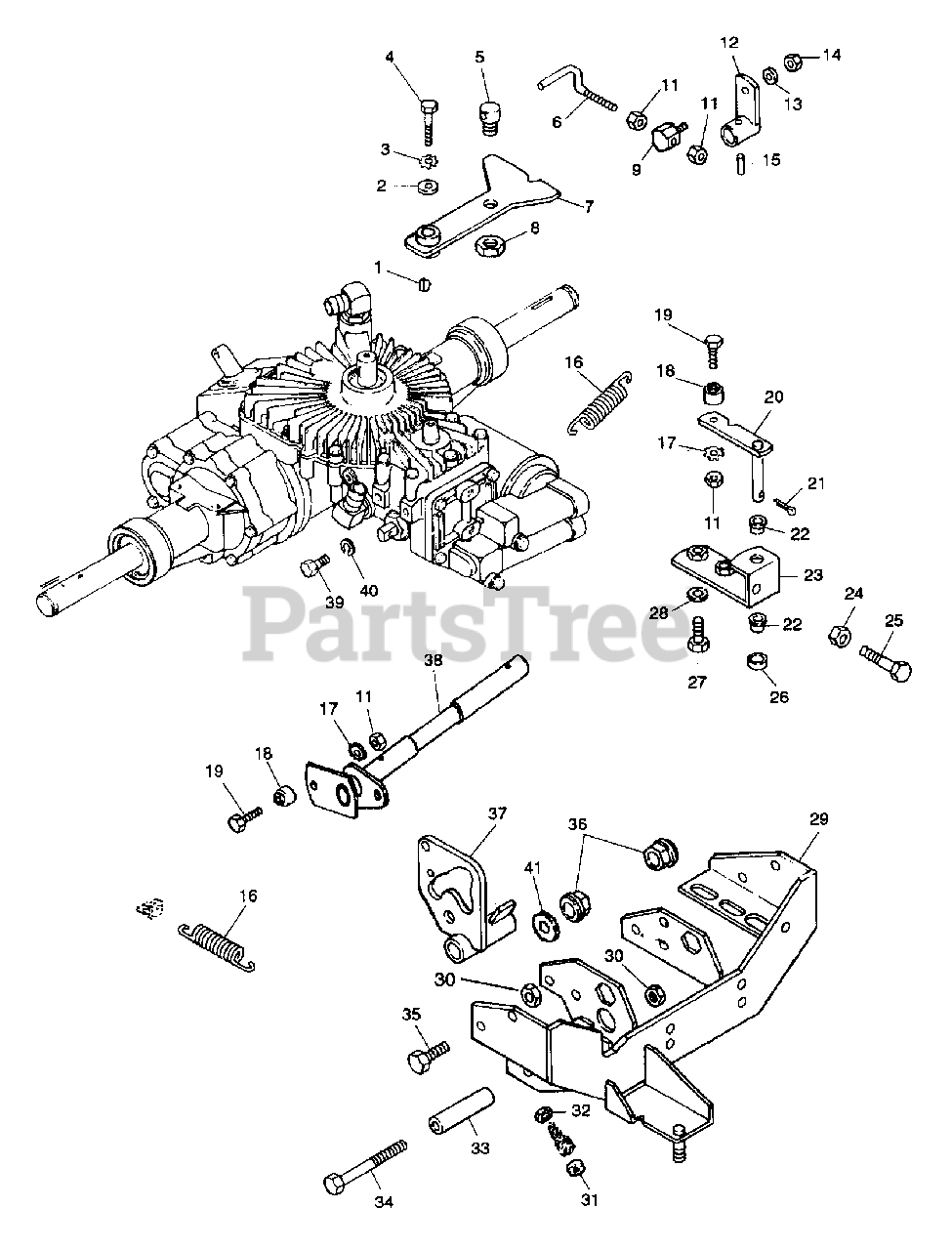

Neutralizer Parts Diagram

  • Title

1

Ariens 06600600

KEY-WDRF .125X.500X.203 SAE 3

$1.49

$

Usually ships in 4-12 days

0

2

Ariens 06400700

WSHR-FL-STL.312X.734X.065PL
(Superseded to 06435800)

$0.99

$

In Stock, Qty 20+

0

3

Ariens 06301700

WSHR-LK-EXT. 250 ID

$2.49

$

Usually ships in 4-12 days

0

4

Ariens 05905000

BLT-HEX .25-20X1.50 PL GR5
(Superseded to 05952500)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 03576100

ADAPTER

$27.99

$

In Stock, only 2 left!

0

6

Ariens 03475000

ARM

$

$

Not available

7

Ariens 03474400

CONTROL ARM

$

$

Not available

8

Ariens 06504600

NUT-LK-CTR .50-13
(Superseded to 06536300)

$3.99

$

In Stock, only 1 left!

0

9

Ariens 03569800

ROD PIVOT

$

$

Not available

11

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 03448300

ARM & HUB

$

$

Not available

13

Ariens 06405700

WSHR-FL-STL .323X.625X.062 PL
(Superseded to 06436700)

$1.49

$

In Stock, only 2 left!

0

14

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

15

Ariens 05804700

PIN-ROLL .125X.88

$0.99

$

In Stock, Qty 9

0

16

Ariens 08318600

SG-TENS .080X.73X3.06 WLD 20

$

$

Not available

17

Ariens 06302500

WSHR-LK .250X.047 LT PL
(Superseded to 06307000)

$2.49

$

Usually ships in 4-12 days

0

18

Ariens 05418000

BRG BALL DBL .250X.638X.438

$45.99

$

Usually ships in 4-12 days

0

19

Ariens 05913200

BLT-HEX .25-20X1.00 GR2
(Superseded to 05947700)

$1.49

$

In Stock, Qty 9

0

20

Ariens 03452800

PIVOT ARM

$

$

Not available

21

Ariens 06700400

PIN-COTR .12X1.0 PL
(Superseded to 06707100)

$0.99

$

In Stock, Qty 10

0

22

Ariens 05506400

BSHG-FLG .500X.375X.500X.687

$

$

Not available

23

Ariens 03452600

PIVOT BRACKET

$

$

Not available

24

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

25

Ariens 05921700

BLT-HEX .38-16X1.75 PL GR2
(Superseded to 05958500)

$1.49

$

In Stock, Qty 20+

0

26

Ariens 05508900

BSHG-SLV .377X.624X.235

$9.49

$

In Stock, only 1 left!

0

27

Ariens 05902300

BLT-HEX .38-16X.75 PL GR2
(Superseded to 05959400)

$1.49

$

In Stock, Qty 20+

0

28

Ariens 06409300

WSHR-FL-STL .382X.812X.062
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0

29

Ariens 03463700

TORQUE MOUNT

$

$

Not available

30

Ariens 06512200

NUT-LK TOP .375-16 GR C YWZC

$2.49

$

Usually ships in 4-12 days

0

31

Ariens 07506300

BOOT

$

$

Not available

32

Ariens 06507100

NUT-HEX .625-32 PL

$3.99

$

Usually ships in 4-12 days

0

33

Ariens 03447800

SPACER .390X.750X2.761

$

$

Not available

34

Ariens 05920800

BLT-HEX .38-16X3.50 PL GR5
(Superseded to 05960900)

$3.99

$

In Stock, Qty 20+

0

35

Ariens 05915400

BLT-HEX .38-16X.75 PL GR5
(Superseded to 05959400)

$1.49

$

In Stock, Qty 20+

0

36

Ariens 05510900

BSHG-FLG .625X.875X.750X1.19HX

$

$

Not available

37

Ariens 03449500

CAM

$

$

Not available

38

Ariens 03463600

CROSS SHAFT

$

$

Not available

39

Ariens 05900200

BLT-HEX .31-18X.63 PL GR 2
(Superseded to 05952200)

$

$

Not available

40

Ariens 06303200

WSHR-LK-EXT .313X.030 PL

$2.49

$

Usually ships in 4-12 days

0

41

Ariens 06403900

WSHR-FL-STL .630X1.005X.062 PL
(Superseded to 06436100)

$0.99

$

In Stock, Qty 20+

0
