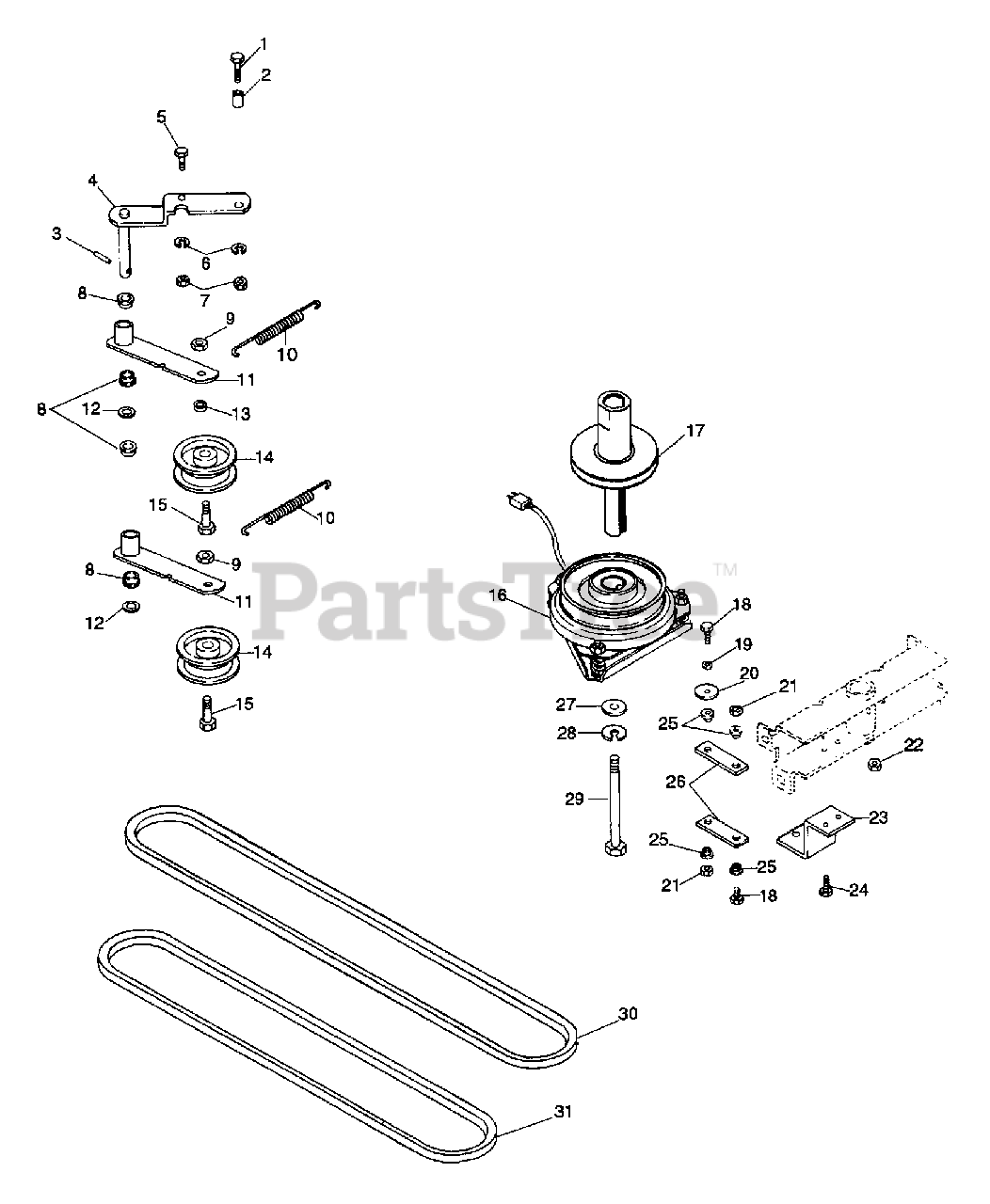

934019 - Ariens High Sierra Garden Tractor, 16hp Kohler, Hydro (SN: 000101 & Above) Main Drive Parts Diagram

High Sierra Garden Tractor, 16hp Kohler, Hydro

Main Drive Parts Diagram

  • Title

1

Ariens 05904500

BLT-HEX .31-18X1.50 PL GR2
(Superseded to 05952400)

$1.49

$

In Stock, Qty 13

0

2

Ariens 03418600

SPACER .344X.500X.875

$

$

Not available

3

Ariens 05801600

PIN-ROLL .188X1.00
(Superseded to 02470401)

$2.49

$

In Stock, only 2 left!

0

4

Ariens 03452700

PIVOT

$

$

Not available

5

Ariens 05918100

BLT-HEX .31-18X1.00 PL GR5
(Superseded to 05946900)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

8

Ariens 05503700

BSHG-FLG.500X.625X.312X.750NY

$0.99

$

In Stock, Qty 20+

0

9

Ariens 06512200

NUT-LK TOP .375-16 GR C YWZC

$2.49

$

Usually ships in 4-12 days

0

10

Ariens 08320200

SG-TENS .085X.60X5.13 WLD8.3

$13.99

$

Usually ships in 4-12 days

0

11

Ariens 03485800

IDLER ARM

$

$

Not available

12

Ariens 06418000

WSHR-FL-STL .520X.827X.062 YZ
(Superseded to 06441100)

$2.49

$

In Stock, only 1 left!

0

13

Ariens 05508900

BSHG-SLV .377X.624X.235

$9.49

$

In Stock, only 1 left!

0

14

Ariens 07308900

IDLER - 2.25X.87

$34.99

$

In Stock, only 1 left!

0

15

Ariens 05915100

BLT-HEX .38-16X1.50 PL GR5
(Superseded to 05957900)

$1.49

$

In Stock, Qty 14

0

16

Ariens 03450500

ELECTRIC CLUTCH

$362.99

$

Usually ships in 4-12 days

0

17

Ariens 03468300

EXTENSION SHAFT

$14.99

$

Usually ships in 4-12 days

0

18

Ariens 05928300

BLT-HEX 10-24X1.00 PL GR2
(Superseded to 05960800)

$3.99

$

Usually ships in 4-12 days

0

19

Ariens 06406800

WSHR-FL-STL .194X.492X.047 PL
(Superseded to 06444400)

$1.99

$

Usually ships in 4-12 days

0

20

Ariens 06403700

WSHR-FL-STL .281X1.250X.048PL

$

$

Not available

21

Ariens 06504100

NUT-LK TOP 10-24 PL

$1.99

$

Usually ships in 4-12 days

0

22

Ariens 06506600

NUT-LK-NYL .250-20 PL
(Superseded to 06531000)

$4.99

$

Usually ships in 4-12 days

0

23

Ariens 03452300

TORQUE BRACKET

$

$

Not available

24

Ariens 05908200

BLT-HEX .25-20X.75 PL GR5
(Superseded to 05946800)

$0.99

$

In Stock, Qty 20+

0

25

Ariens 03015600

SPECIAL WASHER

$25.99

$

Usually ships in 4-12 days

0

26

Ariens 03036200

LINK

$

$

Not available

27

Ariens 06423200

WSHR-FL-STL .463X1.375X.250 PL
(Superseded to 06443500)

$6.99

$

Usually ships in 4-12 days

0

28

Ariens 06300500

WSHR-LK .438X.133 HVY
(Superseded to 06310700)

$2.99

$

Usually ships in 4-12 days

0

29

Ariens 05927600

BLT-HEX .44-20X5.50 PL GR5
(Superseded to 05969000)

$7.99

$

In Stock, only 1 left!

0

30

Ariens 07217000

V-BELT, SAE 380-RAW EDGE

$62.99

$

Usually ships in 4-12 days

0

31

Ariens 07213500

V-BELT, 5L-RAW EDGE

$52.99

$

Usually ships in 4-12 days
