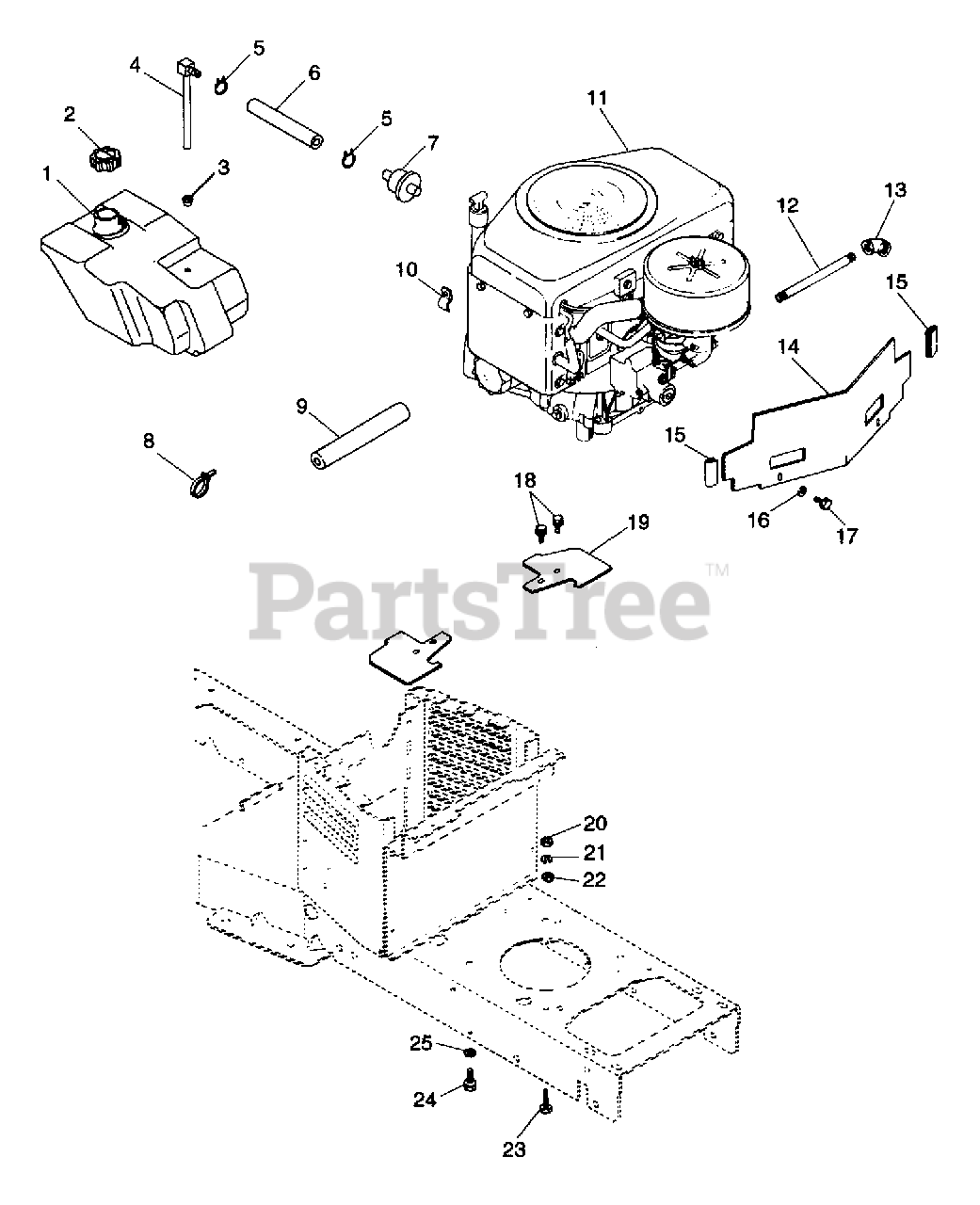

934019 - Ariens High Sierra Garden Tractor, 16hp Kohler, Hydro (SN: 000101 & Above) Engine, Baffles And Fuel Parts Diagram

High Sierra Garden Tractor, 16hp Kohler, Hydro

Engine, Baffles And Fuel Parts Diagram

  • Title
1

Ariens 03606100

FUEL TANK
(Superseded to 03627500)

$

$

Not available

2

Ariens 03601900

FUEL CAP
(Superseded to 01538400)

$15.99

$

Usually ships in 4-12 days

0

3

Ariens 07511400

BSHG-FLG .375 X 1.062 X .625 R

$3.49

$

In Stock, Qty 20+

0

4

Ariens 03606500

TANK FITTING

$

$

Not available

5

Ariens 02917200

CLAMP-HOSE WIR.490/.510X.092#8
(Superseded to 06939100)

$3.99

$

In Stock, Qty 15

0

6

Ariens 03081800

FUEL LINE 1/4 X 50.5"

$

$

Not available

7

Ariens 02910800

FUEL FILTER

$7.49

$

Usually ships in 4-12 days

0

8

Ariens 07517300

CABLE TIE LG 5-1/2

$

$

Not available

9

Ariens 03438300

TUBING - SPONGE

$

$

Not available

10

Ariens 06913500

HOSE CLAMP

$

$

Not available

11

Ariens 08228600

MV16S KOHL.VER.SHFT.ENG.#56514

Note: (19)

$

$

Not available

11

Ariens 08228700

MV18S KOHLER ENGINE - PS-58532

Note: (20)

$

$

Not available

12

$

$

Not available

13

$

$

Not available

14

Ariens 03446100

ENGINE BAFFLE

$

$

Not available

15

Ariens 03441800

FOAM TAPE

$

$

Not available

16

Ariens 06300200

WSHR-LK .250X.077 HVY PL
(Superseded to 06308000)

$

$

Not available

17

Ariens 05910400

BLT-HEX .25-20X.38 PL GR2
(Superseded to 05947600)

$1.99

$

Usually ships in 4-12 days

0

18

Ariens 07402600

SCR-TAP 10-24X.375 CRPH 1A
(Superseded to 07406900)

$2.49

$

Usually ships in 4-12 days

0

19

Ariens 03446200

BAFFLE-SIDE

$

$

Not available

20

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

21

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

22

Ariens 06405700

WSHR-FL-STL .323X.625X.062 PL
(Superseded to 06436700)

$1.49

$

In Stock, only 2 left!

0

23

Ariens 05914000

BLT-HEX .31-18X1.50 PL GR5
(Superseded to 05952400)

$1.49

$

In Stock, Qty 13

0

24

Ariens 07403000

SCR-TAP .375-16X1.0 HWH PL TR
(Superseded to 07417500)

$3.99

$

In Stock, only 2 left!

0

25

Ariens 06303000

WSHR-LK-EXT .375X.050

$

$

Not available
