934014 - Gravely GEM Lawn Tractor, 14hp Kohler, Hydro Drive (SN: 000101 & Above) PTO Parts Diagram

GEM Lawn Tractor, 14hp Kohler, Hydro Drive

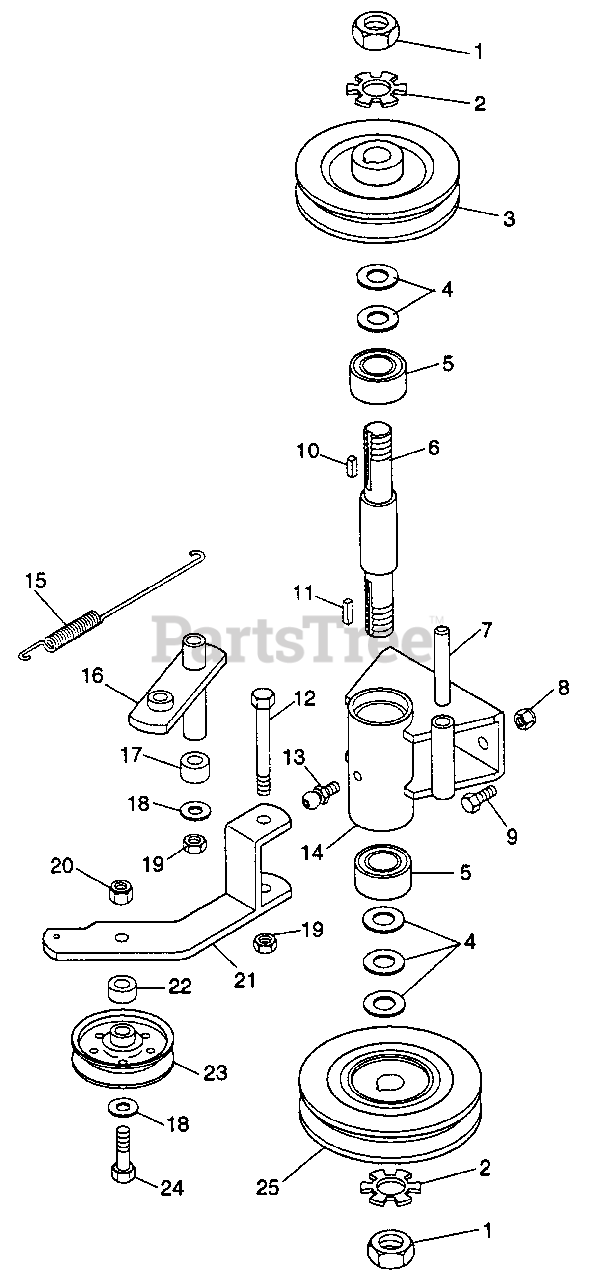

PTO Parts Diagram

  • Title
1

Gravely 451539

Nut-Hex-Jam .750-10 Heavy
(Superseded to 06537700)

$2.49

$

In Stock, only 2 left!

0

2

Gravely 036225

Star Washer
(Superseded to 03559000)

$19.99

$

Usually ships in 4-12 days

0

3

Gravely 050248

Sheave
(Superseded to 03454400)

$

$

Not available

4

Gravely 036785

Wshr-Fl-Stl .755 x 1.250 x .125
(Superseded to 06401016)

$3.99

$

In Stock, only 4 left!

0

5

Gravely 035925

Brg-Ball .750 x 1.781 x .61
(Superseded to 05412000)

$13.99

$

In Stock, Qty 7

0

6

Gravely 050250

Jack Shaft
(Superseded to 03488300)

$

$

Not available

7

Gravely 050251

Tube
(Superseded to 03455900)

$5.99

$

Usually ships in 4-12 days

0

8

Gravely 419455

Nut-Lk-Nyl .312-18 Pl
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 180079

Blt-Hex .31-18 x 1.00 Pl Gr 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 026273

Key-Sq 1.865 x .50 x 1.865
(Superseded to 06606000)

$10.99

$

In Stock, only 1 left!

0

11

Gravely 050249

Key-Str .186 x .75 x .186
(Superseded to 06606100)

$3.99

$

In Stock, Qty 11

0

12

Gravely 180138

Blt-Hex .38-16 x 3.00
(Superseded to 05901814)

$2.49

$

In Stock, Qty 20+

0

13

Gravely 036160

Spin Drive Zerk Fitting
(Superseded to 07012600)

$

$

Not available

14

Gravely 050258

Spindle
(Superseded to 03453100)

$

$

Not available

15

Gravely 050257

Sg-Tens .095 x .62 x 9.25
(Superseded to 08325600)

$

$

Not available

16

Gravely 050256

Spring Arm
(Superseded to 03455500)

$

$

Not available

17

$

$

Not available

18

Gravely 120394

Wshr-Fl-Stl .406 x .812 x .065 Pl
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 413534

Nut-Lk-Ctr .375-16 Typ N
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 456004

Nut-Lk-Nyl .375-16 Pl
(Superseded to 06500831)

$2.49

$

In Stock, only 2 left!

0

21

Gravely 050252

Idler Arm
(Superseded to 03475100)

$70.99

$

Usually ships in 4-12 days

0

22

Gravely 014672

Bushing .406 x .750 x .188
(Superseded to 03488200)

$5.99

$

In Stock, Qty 6

0

23

Gravely 052062

Idler-Ply
(Superseded to 07320700)

$34.99

$

In Stock, only 1 left!

0

24

Gravely 180130

Blt-Hex .38-16 x 2.00 Pl Gr 5
(Superseded to 05901718)

$2.99

$

In Stock, only 1 left!

0

25

Gravely 050254

Sheave
(Superseded to 03454800)

$

$

Not available
