934014 - Gravely GEM Lawn Tractor, 14hp Kohler, Hydro Drive (SN: 000101 & Above) BRAKE LINKAGE Parts Diagram

GEM Lawn Tractor, 14hp Kohler, Hydro Drive

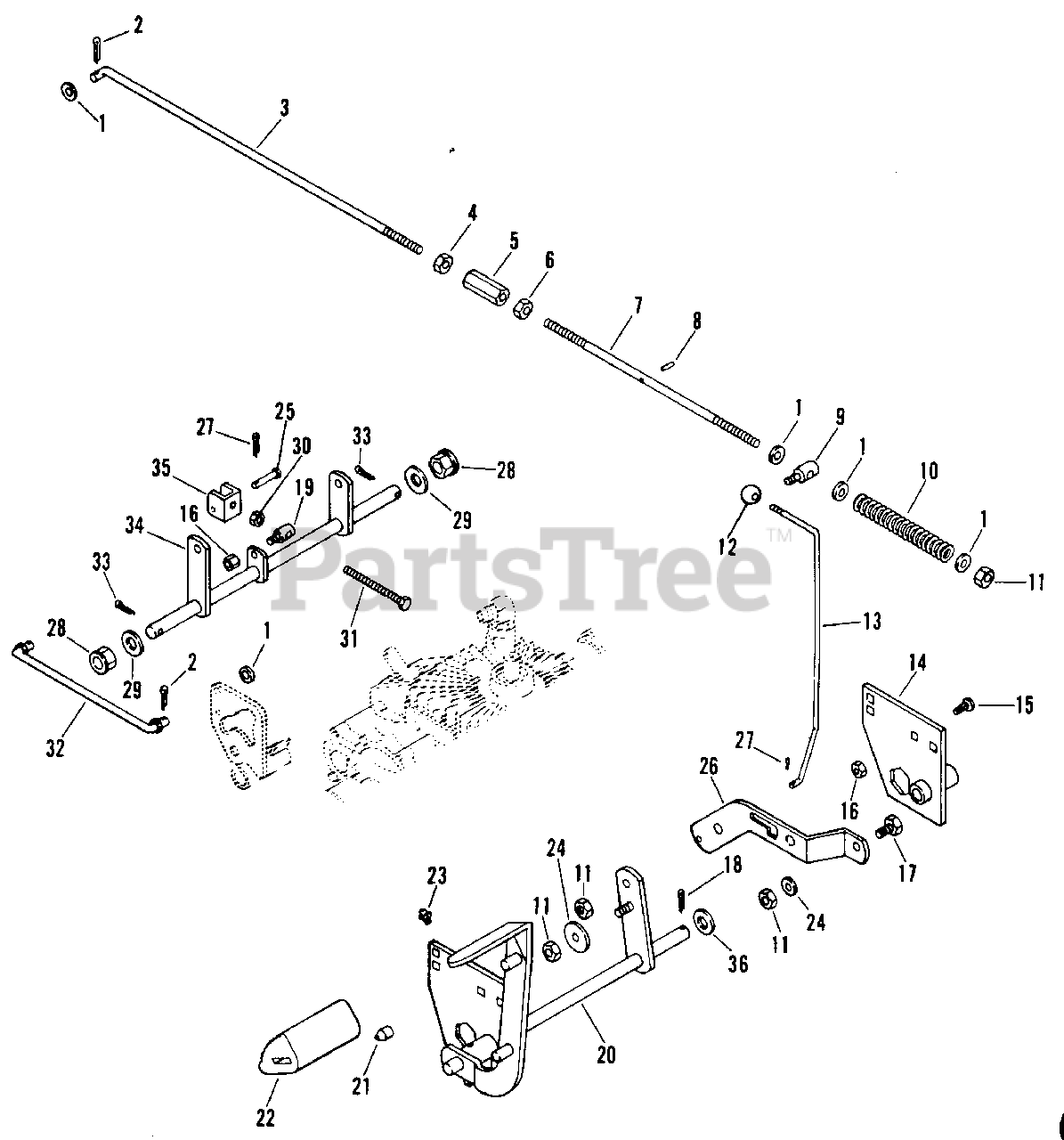

BRAKE LINKAGE Parts Diagram

  • Title

1

Gravely 120394

Washer, Flat .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

2

Gravely 121222

Pin, Cotter 3/32 x .75
(Superseded to 06706900)

$0.99

$

In Stock, Qty 8

0

3

Gravely 050177

Rear Brake Rod
(Superseded to 03449400)

$

$

Not available

4

Gravely 045362

Nut, Hex 3/8-16 L.H.
(Superseded to 06539000)

$3.99

$

In Stock, only 1 left!

0

5

Gravely 045361

Nut, Coupling
(Superseded to 06515500)

$5.99

$

Usually ships in 4-12 days

0

6

Gravely 120377

Nut, Hex 3/8-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 050178

Front Brake Rod
(Superseded to 03453600)

$

$

Not available

8

Gravely 415236

Pin, Spring .125 x .750
(Superseded to 05803400)

$0.99

$

In Stock, Qty 16

0

9

Gravely 050179

Pivot
(Superseded to 03448700)

$

$

Not available

10

Gravely 045367

Spring, Compression
(Superseded to 08324800)

$

$

Not available

11

Gravely 456004

Nut, Lock 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

12

Gravely 050377

Knob
(Superseded to 07519200)

$

$

Not available

13

Gravely 047653

Rod, Brake Lock
(Superseded to 03492800)

$

$

Not available

14

Gravely 050181

Bracket
(Superseded to 03451800)

$

$

Not available

15

Gravely 126216

Bolt, Carriage 5/16-18 x .75

$

$

Not available

16

Gravely 419455

Nut, Lock 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 180122

Bolt, Hex 3/8-16 x 1.00
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 137228

Pin, Cotter 5/32 x 1.50
(Superseded to 06713800)

$3.99

$

In Stock, Qty 5

0

19

Gravely 052616

Pivot, Rod
(Superseded to 03469800)

$

$

Not available

20

Gravely 049702

Weldment, Brake Shaft
(Superseded to 03487600)

$

$

Not available

21

Gravely 050183

Grip
(Superseded to 07503000)

$

$

Not available

22

Gravely 050184

Cover, Pedal
(Superseded to 07512100)

$

$

Not available

23

Gravely 036160

Spin, Drive Zerk Fitting
(Superseded to 07012600)

$

$

Not available

24

Gravely 446470

Washer, Flat .375 x 1.125 x .065
(Superseded to 06401139)

$2.49

$

In Stock, only 2 left!

0

25

Gravely 417923

Pin, Clevis .250 x 1.500
(Superseded to 06814600)

$3.99

$

In Stock, Qty 6

0

26

Gravely 050185

Arm, Park
(Superseded to 03454100)

$

$

Not available

27

Gravely 121223

Pin, Cotter 1/16 x .75
(Superseded to 06707500)

$0.99

$

In Stock, only 2 left!

0

28

Gravely 050229

Bush., .625 x .875 x .750
(Superseded to 05510900)

$

$

Not available

29

Gravely 018000

Bearing, Thrust Race
(Superseded to 06426200)

$

$

Not available

30

Gravely 413447

Nut, Lock 5/16-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

31

Gravely 052063

Bolt, Hex 5/16-18 x 3.50
(Superseded to 05948000)

$

$

Not available

32

Gravely 050187

Rod, Neutral
(Superseded to 03449600)

$

$

Not available

33

Gravely 137228

Pin, Cotter .156 x 1.50
(Superseded to 06713800)

$3.99

$

In Stock, Qty 5

0

34

Gravely 050188

Shaft, Brake
(Superseded to 03475400)

$

$

Not available

35

Gravely 050189

Clevis
(Superseded to 03583200)

$

$

Not available

36

Gravely 131016

Washer, Flat .656 x 1.312 x .095
(Superseded to 06401118)

$2.49

$

Usually ships in 4-12 days

0
