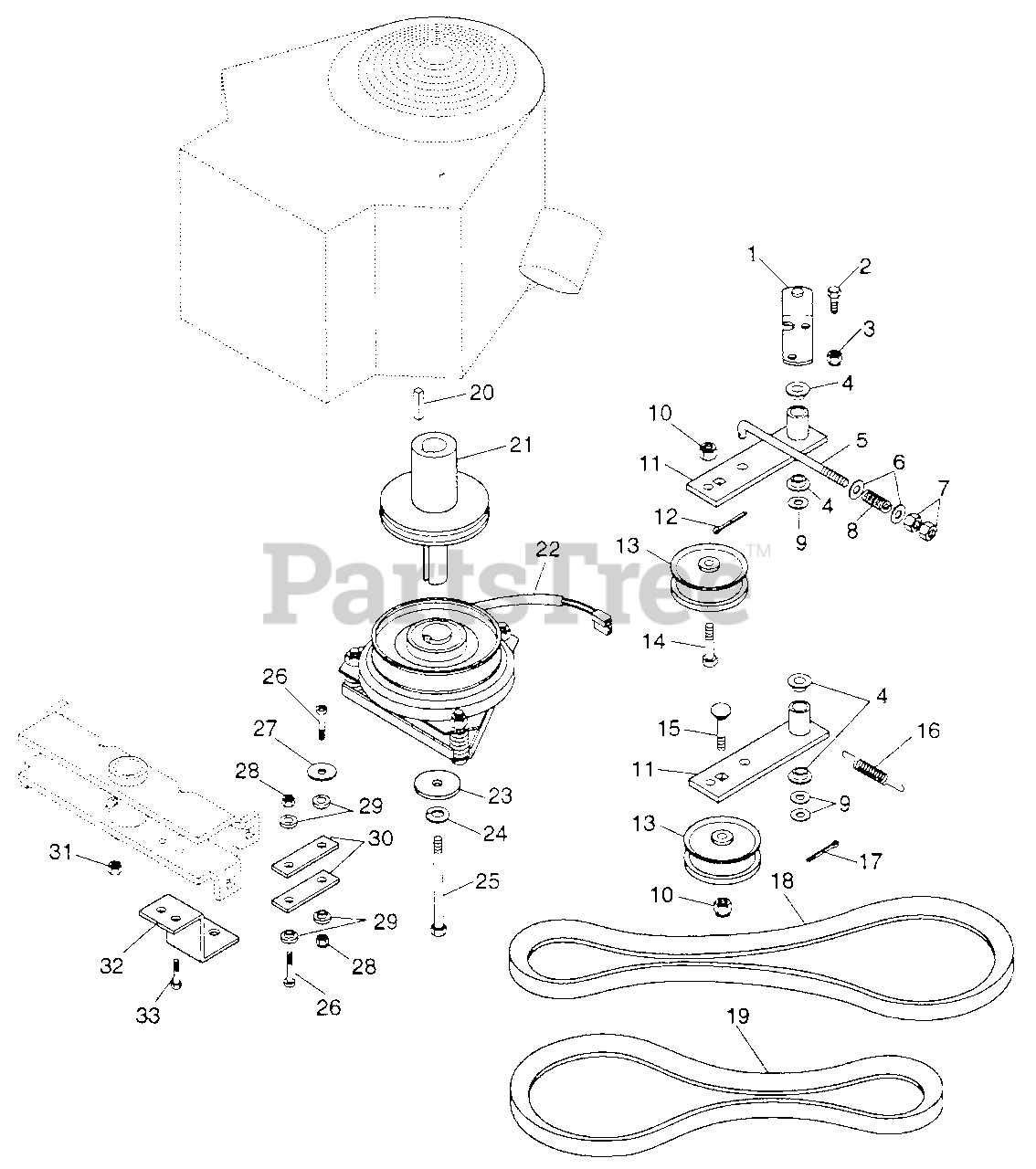

934011 - Gravely GEM Lawn Tractor, 16hp Briggs & Stratton, Hydro Drive (SN: 000101 & Above) MAIN DRIVE Parts Diagram

GEM Lawn Tractor, 16hp Briggs & Stratton, Hydro Drive

MAIN DRIVE Parts Diagram

  • Title

1

Gravely 049673

Pivot

$

$

Not available

2

Gravely 180077

Blt-Hex .31-18 .75 Pl Gr 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 419455

Nut-Lk-Nyl .312-18 Pl
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 036057

Bshg-Flg Ny .500 x .625 x .312 x .750
(Superseded to 05503700)

$0.99

$

In Stock, Qty 17

0

5

Gravely 051276

Rod
(Superseded to 03491700)

$

$

Not available

6

Gravely 120394

Wshr-Fl-Stl .406 x .812 x .065 Pl
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 120377

Nut-Hex .375-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 011779

Sg-Comp .188 x 1.66 x 2.0
(Superseded to 08327000)

$15.99

$

In Stock, only 2 left!

0

9

Gravely 417098

Wshr-Fl-Stl .531 x 1.000 x .063
(Superseded to 06401115)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 456004

Nut-Lk-Nyl .375-16 Pl
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

11

Gravely 052570

Idler Arm
(Superseded to 03490100)

$

$

Not available

12

Gravely 121224

Pin-Cotr .09 x 1.0 Pl

$0.99

$

Usually ships in 4-12 days

0

13

Gravely 035851

Idler-Flat 2.75 x .38 Dayco
(Superseded to 07311100)

$39.99

$

In Stock, only 3 left!

0

14

Gravely 180128

Blt-Hex .38-16 x 1.75 Pl Gr 5
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 126416

Blt-Rdhdsqnk .38-16 x 1.75
(Superseded to 06200417)

$3.99

$

In Stock, only 2 left!

0

16

Gravely 050234

Sg-Tens .087 x .55 x 6.13 Wld 10
(Superseded to 08320000)

$34.99

$

Usually ships in 4-12 days

0

17

Gravely 120123

Pin-Cotr .12 x 1.25 Pl
(Superseded to 06700212)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 049994

V-Belt
(Superseded to 07206400)

$69.99

$

Usually ships in 4-12 days

0

19

Gravely 049995

V-Belt
(Superseded to 07214900)

$48.99

$

Usually ships in 4-12 days

0

20

Gravely 009213

Key-Sg .248 x 1.0 x .248
(Superseded to 00966045)

$2.99

$

In Stock, only 1 left!

0

21

Gravely 051185

Extension Shaft
(Superseded to 03493000)

$

$

Not available

22

Gravely 050236

Electric Clutch
(Superseded to 03450500)

$362.99

$

Usually ships in 4-12 days

0

23

Gravely 044379

Wshr-Special .469 x 2.000 x .250
(Superseded to 06401111)

$6.99

$

In Stock, only 2 left!

0

24

Gravely 131100

Wshr-Lock .438 x .133 Hvy
(Superseded to 06310700)

$2.99

$

Usually ships in 4-12 days

0

25

Gravely 193214

Blt-Hex .44-20 x 5.50 Pl Gr 5
(Superseded to 05969000)

$7.99

$

In Stock, only 1 left!

0

26

Gravely 159957

Scr-Mch 10-24 x 1.00 Phcr
(Superseded to 05901838)

$1.99

$

Usually ships in 4-12 days

0

27

Gravely 012694

Wshr-Fl-Stl .281 x 1.250 x .062 Pl
(Superseded to 06403700)

$

$

Not available

28

Gravely 190254

Nut-Lk 10-24 Ny Pl
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

29

Gravely 050239

Special Washer
(Superseded to 03015600)

$25.99

$

Usually ships in 4-12 days

0

30

Gravely 050240

Link
(Superseded to 03036200)

$

$

Not available

31

Gravely 419454

Nut-Lk-Nyl .250-20 Pl
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

32

Gravely 050238

Torque Bracket
(Superseded to 03452300)

$

$

Not available

33

Gravely 180020

Blt-Hex .25-20 x .75 Pl Gr 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0
