934010 - Gravely GEM Lawn Tractor, 12.5hp Briggs & Stratton, Hydro Drive (SN: 000101 & Above) HOOD AND GRILLE Parts Diagram

GEM Lawn Tractor, 12.5hp Briggs & Stratton, Hydro Drive

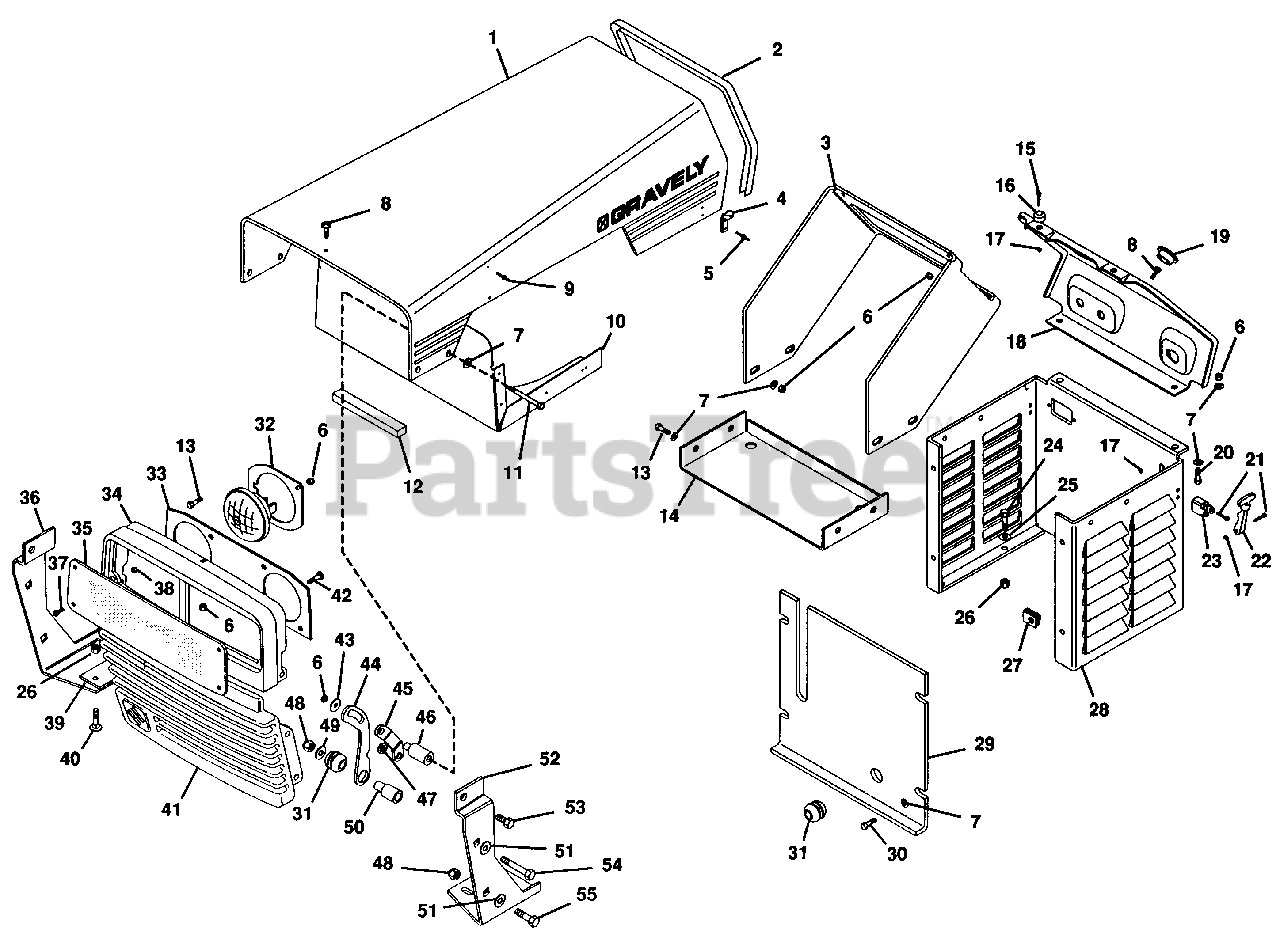

HOOD AND GRILLE Parts Diagram

  • Title

1

Gravely 051392

Hood, GEM Silkscreen
(Superseded to 03487000)

$

$

Not available

2

Gravely 046424

Strip, Cowl
(Superseded to 00922700)

$5.99

$

Usually ships in 4-12 days

0

3

Gravely 047651

Bracket, Support
(Superseded to 03492900)

$

$

Not available

4

Gravely 050505

Keeper
(Superseded to 03494500)

$

$

Not available

5

Gravely 032661

Rivet, Dome Head
(Superseded to 06807500)

$

$

Not available

6

Gravely 419454

Nut, Lock 1/4-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

7

Gravely 120392

Washer, Flat .281 x .625 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 160541

Screw, Mach. 1/4-20 PHD
(Superseded to 06113500)

$2.99

$

In Stock, only 3 left!

0

9

Gravely 011884

Rivet, Pop .125 x .232
(Superseded to 06807300)

$

$

Not available

10

Gravely 051882

Baffle, Hood
(Superseded to 03496800)

$

$

Not available

11

Gravely 180046

Bolt, Hex 1/4-20 x 2.25
(Superseded to 05901636)

$2.49

$

Usually ships in 4-12 days

0

12

Gravely 051893

Pad, Baffle
(Superseded to 03496900)

$

$

Not available

13

Gravely 180022

Bolt, Hex 1/4-20 x 1.00
(Superseded to 05901639)

$1.49

$

In Stock, Qty 9

0

14

Gravely 047648

Tray, Battery
(Superseded to 03492000)

$

$

Not available

15

Gravely 159341

Screw, Mach. 6-32 x .625 PHD
(Superseded to 06110700)

$1.99

$

Usually ships in 4-12 days

0

16

Gravely 018183

Bumper
(Superseded to 07017400)

$

$

Not available

17

Gravely 427254

Nut, Mach. Lock 6-32
(Superseded to 06538900)

$

$

Not available

18

Gravely 050538

Panel, Silkscreen
(Superseded to 03490300)

$

$

Not available

19

Gravely 010174

Bush., Flg. .764 x 1.47 x .560 Ny.
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

20

Gravely 180018

Bolt, Hex 1/4-20 x .625
(Superseded to 05932000)

$1.99

$

In Stock, only 1 left!

0

21

Gravely 159358

Screw, Mach. 6-32 x 1.0 PHCR
(Superseded to 06110800)

$

$

Not available

22

Gravely 050504

Latch, Flexible Draw
(Superseded to 07519700)

$

$

Not available

23

Gravely 047675

Block, Tie-Down
(Superseded to 07519600)

$

$

Not available

24

Gravely 180079

Bolt, Hex 5/16-18 x 1.00
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 120393

Washer, Flat .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

26

Gravely 419455

Nut, Lock 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 032369

Nut, Retainer
(Superseded to 07009000)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 050671

Panel, Silkscreen
(Superseded to 03492200)

$

$

Not available

29

Gravely 047669

Cover, Hydraulic Tank
(Superseded to 03494400)

$38.99

$

Usually ships in 4-12 days

0

30

Gravely 180020

Bolt, Hex 1/4-20 x .75
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

31

Gravely 035518

Grommet
(Superseded to 07504200)

$5.99

$

Usually ships in 4-12 days

0

32

Gravely 039070

Ring, Headlight Retainer
(Superseded to 03115900)

$

$

Not available

33

Gravely 038672

Panel, Headlight Reflector
(Superseded to 03067000)

$28.99

$

Usually ships in 4-12 days

0

34

Gravely 038673

Headlight, Bezel
(Superseded to 03066800)

$

$

Not available

35

Gravely 038671

Panel, Headlight Lense
(Superseded to 03066900)

$78.99

$

Usually ships in 4-12 days

0

36

Gravely 047611

Bracket(R.H.)
(Superseded to 03493600)

Note: (R.H.)

$

$

Not available

37

Gravely 159947

Screw, Mach. 10-24 x .75 PHD
(Superseded to 06111200)

$2.49

$

Usually ships in 4-12 days

0

38

Gravely 190254

Nut, Lock 10-24
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

39

Gravely 052748

Brace, Hood
(Superseded to 03497100)

$

$

Not available

40

Gravely 126353

Bolt, 5/16-18 x .875 Rd Hd Sq Nk
(Superseded to 06209200)

$

$

Not available

41

Gravely 050695

Casting, Grille
(Superseded to 03343700)

$

$

Not available

42

Gravely 045207

Screw, 1/4-20 x .50 Self Tapping
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

43

Gravely 416904

Washer, Flat .281 x 1 x .063
(Superseded to 06401020)

$0.99

$

In Stock, Qty 20+

0

44

Gravely 050009

Hinge, Slotted
(Superseded to 03487500)

$

$

Not available

45

Gravely 050008

Hinge, Short L.H.
(Superseded to 03487300)

$

$

Not available

45

Gravely 050004

Hinge, Short R.H.
(Superseded to 03487400)

$

$

Not available

46

Gravely 050003

Pivot, Hood
(Superseded to 03487200)

$

$

Not available

47

Gravely 413534

Nut, Lock 3/8-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

48

Gravely 456004

Nut, Lock 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

49

Gravely 120388

Washer, Flat .438 x 1.000 x .083
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

50

Gravely 049235

Bush., Flg. .390 x .750 x 1.47 Stl.
(Superseded to 03494800)

$

$

Not available

51

Gravely 120394

Washer, Flat .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

52

Gravely 051539

Bracket, Grille
(Superseded to 03493800)

$

$

Not available

53

Gravely 180120

Bolt, Hex 3/8-16 x .75
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

54

Gravely 180137

Bolt, Hex 3/8-16 x 2.75
(Superseded to 05901611)

$3.99

$

In Stock, only 4 left!

0

55

Gravely 180124

Bolt, Hex 3/8-16 x 1.25
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

NS

Gravely 050677

Decal, 12.5
(Superseded to 07814000)

$

$

Not available

NS

Gravely 050678

Decal, 14
(Superseded to 05215400)

$

$

Not available
