934010 - Gravely GEM Lawn Tractor, 12.5hp Briggs & Stratton, Hydro Drive (SN: 000101 & Above) FRAME Parts Diagram

GEM Lawn Tractor, 12.5hp Briggs & Stratton, Hydro Drive

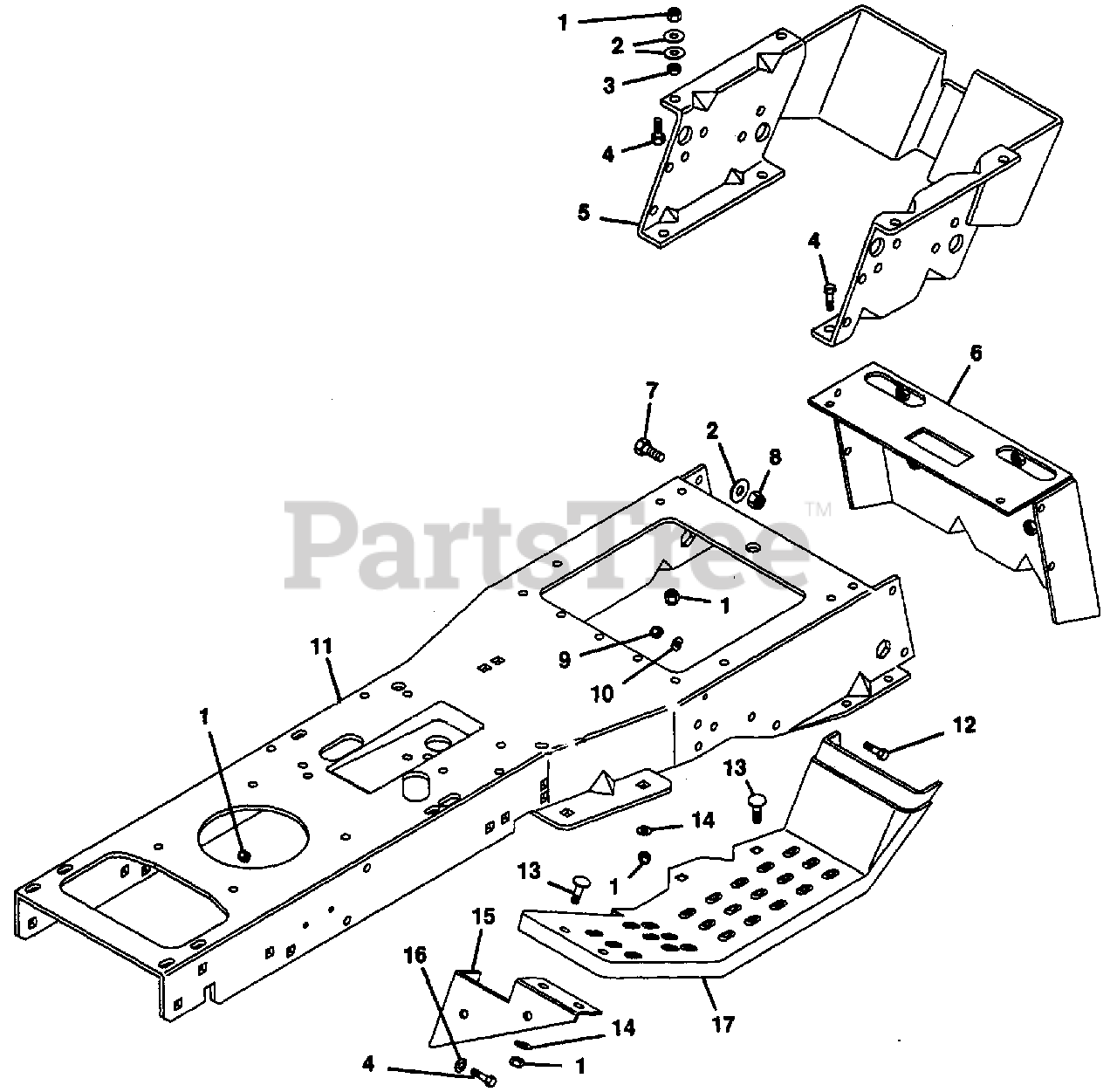

FRAME Parts Diagram

  • Title
1

Gravely 419455

Nut, Lock 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

2

Gravely 446470

Washer, Flat .375 x 1.125 x .065
(Superseded to 06401139)

$2.49

$

In Stock, only 2 left!

0

3

Gravely 120376

Nut, Hex 5/16-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

4

Gravely 180079

Bolt, Hex 5/16-18 x 1.00
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 050161

Deck, Support
(Superseded to 03448500)

$

$

Not available

6

Gravely 049363

Weldment, Tailboard
(Superseded to 03448900)

$

$

Not available

7

Gravely 180121

Bolt, Hex 3/8-16 x .875
(Superseded to 05932600)

$2.49

$

In Stock, only 1 left!

0

8

Gravely 456004

Nut, Lock 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 2 left!

0

9

Gravely 419454

Nut, Lock 1/4-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

10

Gravely 120392

Washer, Flat .281 x .625 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 051387

Frame
(Superseded to 03345700)

$

$

Not available

12

Gravely 180020

Bolt, Hex 1/4-20 x .750
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 126358

Bolt, Carriage 5/16-18 x 1.0
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 120393

Washer, Flat .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 050167

Foot Rest Brace, L.H.
(Superseded to 03473600)

$

$

Not available

15

Gravely 050166

Foot Rest Brace, R.H.
(Superseded to 03473500)

$

$

Not available

16

Gravely 446354

Washer, Flat .313 x .875 x .065
(Superseded to 06430700)

$2.99

$

Usually ships in 4-12 days

0

17

Gravely 050164

Foot Rest, L.H.

$

$

Not available

17

Gravely 050163

Foot Rest, R.H.
(Superseded to 03408253)

$

$

Not available

NS

Gravely 050680

Decal, Transmission Lockout
(Superseded to 07768300)

$

$

Not available

NS

Gravely 052625

Decal, Caution
(Superseded to 07820500)

$

$

Not available
