934006 - Ariens High Sierra Garden Tractor, 18hp Kohler, Hydro (SN: 000101 & Above) Speed Selector Parts Diagram

High Sierra Garden Tractor, 18hp Kohler, Hydro

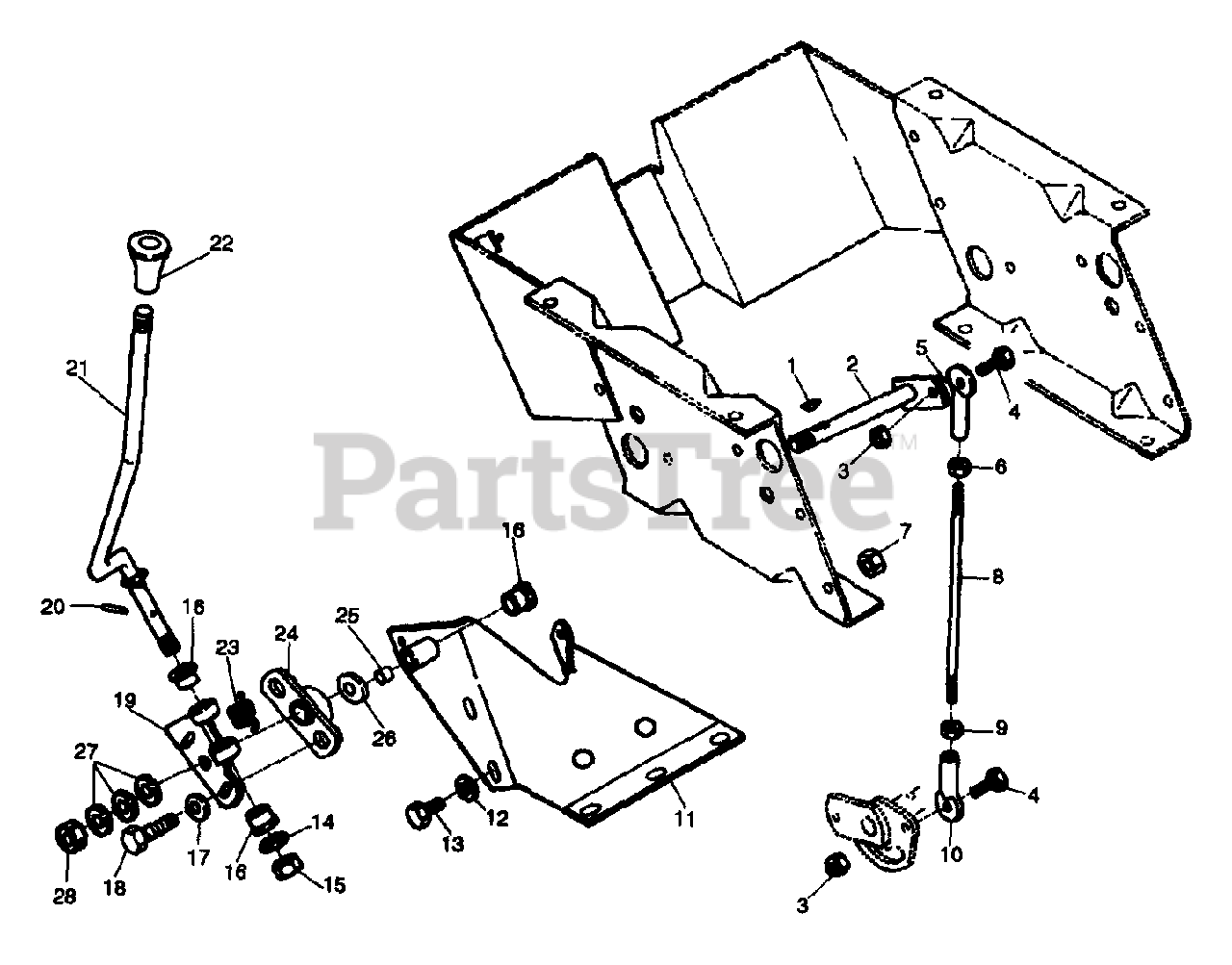

Speed Selector Parts Diagram

  • Title
1

Ariens 06600600

KEY-WDRF .125X.500X.203 SAE 3

$1.49

$

Usually ships in 4-12 days

0

$

$

Not available

3

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

4

Ariens 05913200

BLT-HEX .25-20X1.00 GR2
(Superseded to 05947700)

$1.49

$

In Stock, Qty 9

0

5

Ariens 03573200

ROD END, 1/4 RH

$

$

Not available

6

Ariens 06500400

NUT-HEX .250-28 YWZC

$1.99

$

Usually ships in 4-12 days

0

7

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 03448600

SHIFT ROD

$

$

Not available

9

Ariens 06516800

NUT-LH .250-28 GR2 PL

$

$

Not available

10

Ariens 03573300

ROD END, 1/4 LH

$94.99

$

Usually ships in 4-12 days

0

11

$

$

Not available

12

Ariens 06400700

WSHR-FL-STL.312X.734X.065PL
(Superseded to 06435800)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 05900200

BLT-HEX .31-18X.63 PL GR 2
(Superseded to 05952200)

$

$

Not available

14

Ariens 06418000

WSHR-FL-STL .520X.827X.062 YZ
(Superseded to 06441100)

$2.49

$

In Stock, only 2 left!

0

15

Ariens 06506700

NUT-LK-CTR .50-20 PL

$

$

Not available

16

Ariens 05502500

BSHG-FLG .500X.625X.625X.875

$5.99

$

Usually ships in 4-12 days

0

17

Ariens 06409300

WSHR-FL-STL .382X.812X.062
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0

18

Ariens 05914500

BLT-HEX .38-16X1.00 PL GR5
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 03450200

OUTER ARM

$

$

Not available

20

Ariens 05800900

PIN-ROLL .125X1.00

$0.99

$

In Stock, Qty 20+

0

21

Ariens 03450400

SHIFT LEVER

$

$

Not available

22

$23.99

$

Usually ships in 4-12 days

0

23

Ariens 08325700

SG_TORS .08X.56X.65

$59.99

$

Usually ships in 4-12 days

0

$

$

Not available

25

Ariens 05515900

BSHG-SLV .500X.625X.500

$6.99

$

Usually ships in 4-12 days

0

26

Ariens 03463300

FRICTION WASHER

$

$

Not available

27

Ariens 03463500

SPRING WASHER

$

$

Not available

28

Ariens 06505400

NUT-LK-CTR .50-20 PL
(Superseded to 06530000)

$2.49

$

Usually ships in 4-12 days

0
