934005 - Ariens High Sierra Garden Tractor, 16hp Kohler, Hydro (SN: 000101 & Above) Steering Parts Diagram

High Sierra Garden Tractor, 16hp Kohler, Hydro

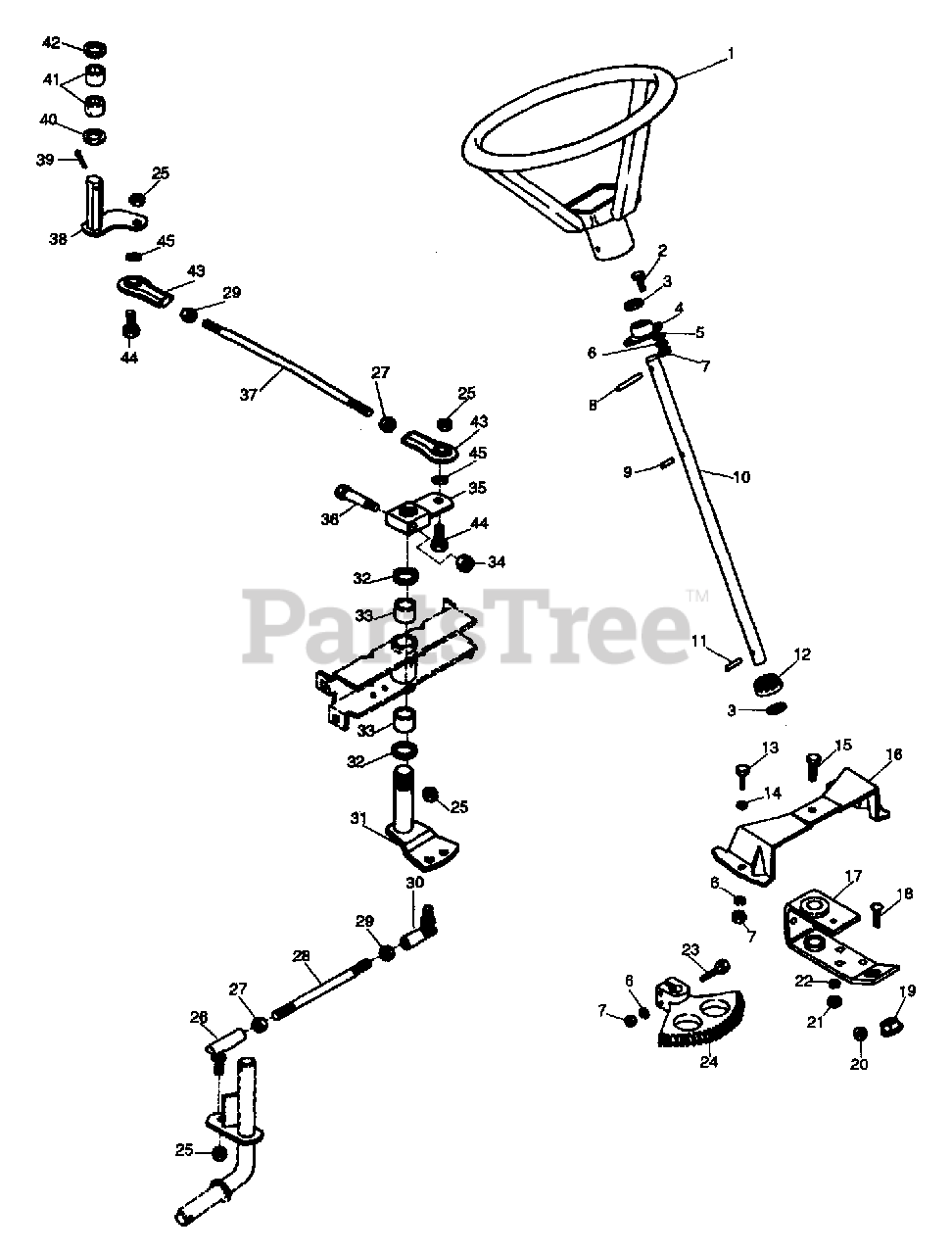

Steering Parts Diagram

  • Title
1

Ariens 03418500

LOGO-STEERING WHEEL

$

$

Not available

Ariens 03437500

STEERING WHEEL ASSEMBLY

$

$

Not available

Ariens 07010600

CLIP-U FASTNG KELCH

$

$

Not available

Ariens 07512600

STEERING WHEEL CAP

$

$

Not available

2

Ariens 05902200

BLT-HEX .31-18X.75 PL GR2
(Superseded to 05947000)

$1.49

$

In Stock, Qty 20+

0

3

Ariens 06406200

WSHR-FL-STL .754X1.125X.062 PL
(Superseded to 06441400)

$0.99

$

In Stock, Qty 20+

0

4

Ariens 05402500

BRG-FLG .751X2 HOLESX.81

$23.99

$

Usually ships in 4-12 days

0

5

Ariens 06400700

WSHR-FL-STL.312X.734X.065PL
(Superseded to 06435800)

$0.99

$

In Stock, Qty 20+

0

6

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

8

Ariens 05801100

PIN-ROLL .250X2.00

$

$

Not available

9

Ariens 05801600

PIN-ROLL .188X1.00
(Superseded to 02470401)

$2.49

$

In Stock, only 2 left!

0

10

Ariens 03413400

STEERING COLUMN

$

$

Not available

11

Ariens 02913300

PIN .249X1.125 DRIV-LOK SP

$17.99

$

Usually ships in 4-12 days

0

12

Ariens 02902100

PINION GEAR-STEERING

$64.99

$

In Stock, only 1 left!

0

13

Ariens 05900300

BLT-HEX .31-18X1.00 PL GR 2
(Superseded to 05946900)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 06405700

WSHR-FL-STL .323X.625X.062 PL
(Superseded to 06436700)

$1.49

$

In Stock, only 2 left!

0

15

Ariens 05900400

BLT-HEX .38-16X1.00 PL
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 03413200

STEERING SUPPORT BRACE

$

$

Not available

17

Ariens 03507800

STEERING BRACKET

$

$

Not available

18

Ariens 06202900

BLT-RDHDSQNK .38-16X1.0 PL
(Superseded to 06223600)

$2.49

$

In Stock, Qty 10

0

19

Ariens 05508000

BSHG-FLG .750X1.093X.625X1.375

$19.99

$

Usually ships in 4-12 days

0

20

Ariens 06508000

NUT-LK-FLG .375-16 PL

$3.99

$

Usually ships in 4-12 days

0

21

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

In Stock, Qty 20+

0

22

Ariens 06300400

WSHR-LK .375X.115 HVY PL
(Superseded to 06306500)

$3.49

$

In Stock, only 3 left!

0

23

Ariens 05907300

BLT-HEX .31-18X1.75 PL GR2
(Superseded to 05957400)

$2.99

$

In Stock, Qty 8

0

24

Ariens 02901900

STEERING BEVEL GEAR

$

$

Not available

25

Ariens 06512100

NUT-LK .50-20 PL
(Superseded to 06544000)

$5.99

$

Usually ships in 4-12 days

0

26

Ariens 03113000

BALL JOINT L.H.

$59.99

$

Usually ships in 4-12 days

0

27

Ariens 06510500

NUT-JAM .50-20 LH THD PL
(Superseded to 06538300)

$

$

Not available

28

Ariens 03457800

TIE ROD

$72.99

$

Usually ships in 4-12 days

0

29

Ariens 06504400

NUT-JAM .50-20 PL
(Superseded to 06539500)

$2.49

$

Usually ships in 4-12 days

0

30

Ariens 03112900

BALL JOINT R.H.

$32.99

$

Usually ships in 4-12 days

0

31

Ariens 03450700

STEERING PIVOT

$

$

Not available

32

Ariens 07506700

PLASTIC WASHER

$

$

Not available

33

Ariens 05509100

BSHG-SLV 1.000X1.125X.875

$13.99

$

In Stock, only 2 left!

0

34

Ariens 06512700

NUT-LK-CROWN .50-13 GR C PL
(Superseded to 06528200)

$3.99

$

In Stock, only 3 left!

0

$

$

Not available

36

Ariens 03058500

LOCK BOLT

$

$

Not available

37

Ariens 03451400

STEERING LINK

$

$

Not available

38

Ariens 03451000

ARM & SHAFT

$

$

Not available

39

Ariens 06700600

PIN-COTR .18X1.25 PL
(Superseded to 06712700)

$1.99

$

In Stock, only 3 left!

0

40

Ariens 06407100

WSHR-FL-STL .880X1.250X.062
(Superseded to 06436900)

$2.49

$

In Stock, Qty 7

0

41

Ariens 05508300

BSHG-SLV .750X1.000X.750 HX SB

$102.99

$

In Stock, only 2 left!

0

42

Ariens 06411100

WSHR-FL-STL .875X1.250X.075

$

$

Not available

43

Ariens 03461700

ROD END, 1/2 RH

$

$

Not available

44

Ariens 05928400

BLT-HEX .50-20X1.75 PL GR5

$3.99

$

Usually ships in 4-12 days

0

45

Ariens 00211100

BSHG, SPCR.500X.750X.321 PM

$3.49

$

In Stock, only 3 left!

0
