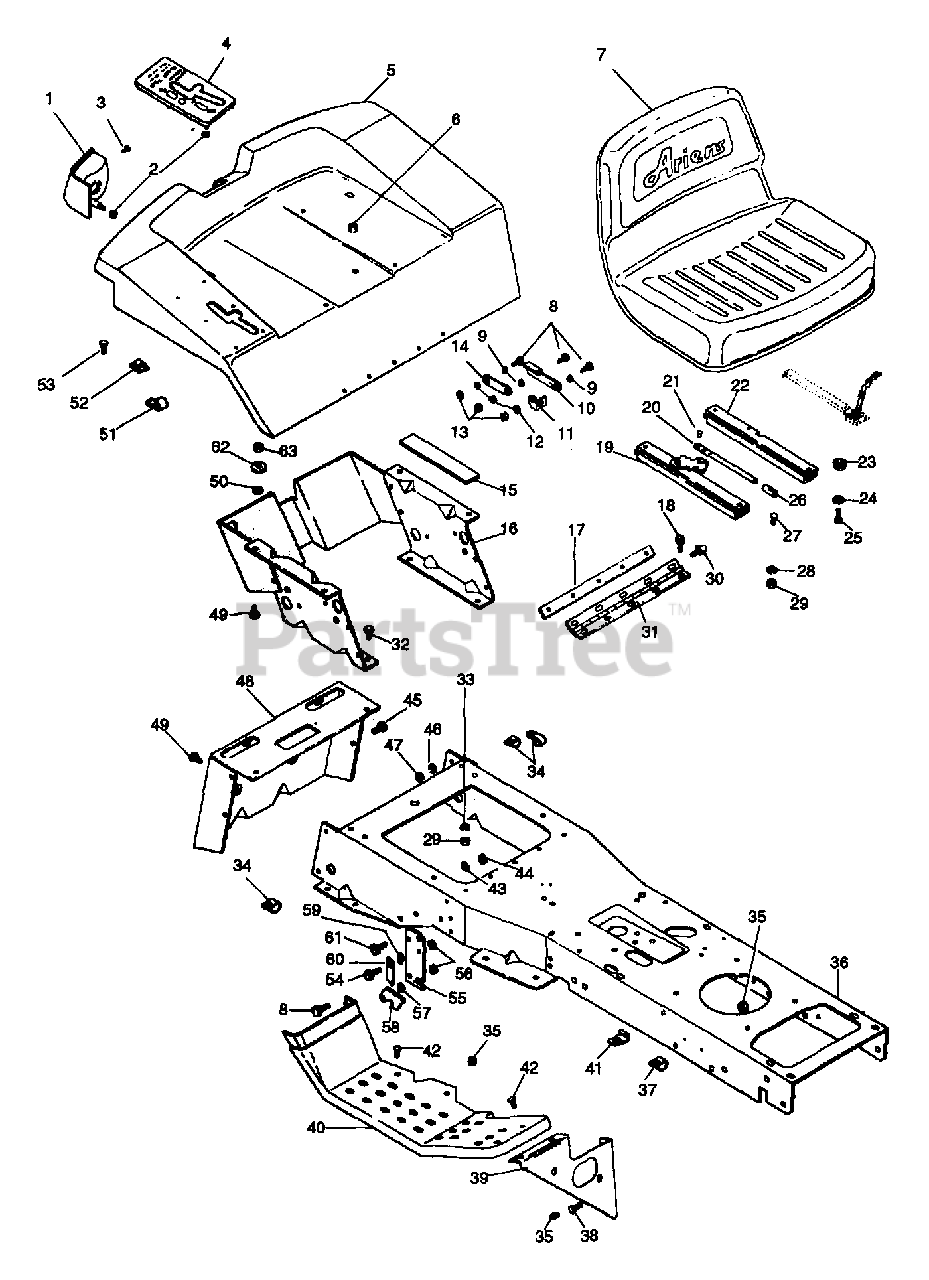

934005 - Ariens High Sierra Garden Tractor, 16hp Kohler, Hydro (SN: 000101 & Above) Seat And Rear Deck Parts Diagram

High Sierra Garden Tractor, 16hp Kohler, Hydro

Seat And Rear Deck Parts Diagram

  • Title

1

Ariens 03416300

RIGHT TAIL LIGHT

Note: (05,06)

$

$

Not available

Ariens 03416400

LEFT TAIL LIGHT

Note: (05,06)

$

$

Not available

2

Ariens 07008000

NUT-SELF-THRDNG FITS.25 STUDPL

Note: (05,06)

$2.99

$

In Stock, only 1 left!

0

Ariens 07008000

NUT-SELF-THRDNG FITS.25 STUDPL

Note: (07,08)

$2.99

$

In Stock, only 1 left!

0

3

Ariens 07400100

SCR-TAP 10-12X.50 CRPH PL A

Note: (05,06)

$

$

Not available

4

Ariens 03450000

INSERT

$

$

Not available

5

Ariens 03449300

REAR DECK
(Superseded to 03449359)

Note: (05,06)

$

$

Not available

Ariens 03471400

REAR DECK

Note: (07,08)

$

$

Not available

6

Ariens 07504400

GROMMET

$

$

Not available

7

Ariens 03416800

SEAT
(Superseded to 53407000)

$

$

Not available

8

Ariens 05908000

BLT-HEX .25-20X.63 PL GR2
(Superseded to 05932000)

Note: (05,06)

$1.99

$

In Stock, only 1 left!

0

Ariens 05908000

BLT-HEX .25-20X.63 PL GR2
(Superseded to 05932000)

Note: (07,08)

$1.99

$

In Stock, only 1 left!

0

9

Ariens 03458200

SPACER .272X.438X.145

Note: (05,06)

$

$

Not available

10

Ariens 03457600

DECK PROP

Note: (05,06)

$

$

Not available

11

Ariens 03457500

BRACKET

Note: (05,06)

$

$

Not available

12

Ariens 06412700

WSHR-FL-STL.281X.62X.065 PL
(Superseded to 06437300)

Note: (05,06)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

Note: (934005, 006)

$0.99

$

In Stock, Qty 20+

0

14

Ariens 03457700

STRAP

Note: (05,06)

$

$

Not available

15

Ariens 03458500

FOAM TAPE

Note: (05,06)

$

$

Not available

16

Ariens 03448500

DECK SUPPORT

$

$

Not available

17

Ariens 03457400

STRAP

Note: (05,06)

$5.99

$

Usually ships in 4-12 days

0

18

Ariens 07401700

SCR-TAP .312-18X.75 HWH PL TR
(Superseded to 07414400)

Note: (05,06)

$1.49

$

In Stock, Qty 12

0

19

Ariens 03416600

SEAT SLIDE R H

$

$

Not available

20

Ariens 03416500

SEAT SLIDE HANDLE

$

$

Not available

21

Ariens 06806500

RVT-POP.187X.562 DOME ST

$

$

Not available

22

Ariens 03416700

SEAT SLIDE L H

$

$

Not available

23

Ariens 03418300

SEAT SLIDE SPACER

$4.49

$

Usually ships in 4-12 days

0

24

Ariens 06303200

WSHR-LK-EXT .313X.030 PL

Note: (05,06)

$2.49

$

Usually ships in 4-12 days

0

25

Ariens 06106300

SCR-MCH .31-18X1.00 CRRH PL
(Superseded to 06117700)

$

$

Not available

26

Ariens 07512000

GRIP

$

$

Not available

27

Ariens 07008100

SCR-CAP BTHD.31-18X.50 GR5 YZ

$

$

Not available

28

Ariens 06303600

WSHR-LK .313X.078 PL MED
(Superseded to 06308600)

Note: (05,06)

$0.99

$

In Stock, Qty 20+

0

29

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

30

Ariens 07401400

SCR-TAP .312-18X.50 HWH PL TR
(Superseded to 07411500)

Note: (05,06,08)

$1.49

$

In Stock, Qty 20+

0

31

Ariens 03102800

HINGE-2" X 12.88 YWZC

Note: (05,06)

$

$

Not available

32

Ariens 05913500

BLT-HEX .31-18X.75 PL GR5
(Superseded to 05947000)

$1.49

$

In Stock, Qty 20+

0

33

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

34

Ariens 06916000

J-CLAMP

$2.49

$

Usually ships in 4-12 days

0

35

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

$1.49

$

In Stock, Qty 20+

0

36

Ariens 03448800

MAIN FRAME

$

$

Not available

37

Ariens 06909400

J-CLAMP

$3.49

$

In Stock, Qty 8

0

38

Ariens 06203400

BLT-RDHDSQNK .31-18X.75 SHT PL
(Superseded to 06214100)

$2.49

$

In Stock, Qty 20+

0

39

Ariens 03473500

R H FOOTREST BRACE

$

$

Not available

Ariens 03473600

L H FOOTREST BRACE

$

$

Not available

40

Ariens 03408200

FOOT REST R H
(Superseded to 03408259)

$

$

Not available

Ariens 03454500

FOOTREST

$

$

Not available

41

Ariens 06910600

CLIP

$

$

Not available

42

Ariens 06201100

BLT-RDHDSQNK .31-18X.75 GR5 PL
(Superseded to 06215700)

$2.49

$

In Stock, Qty 20+

0

43

Ariens 06300200

WSHR-LK .250X.077 HVY PL
(Superseded to 06308000)

$

$

Not available

44

Ariens 06503200

NUT-HEX .250-20 PL
(Superseded to 06533200)

$0.99

$

In Stock, Qty 13

0

45

Ariens 05914500

BLT-HEX .38-16X1.00 PL GR5
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

46

Ariens 06300400

WSHR-LK .375X.115 HVY PL
(Superseded to 06306500)

$3.49

$

In Stock, only 2 left!

0

47

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

In Stock, Qty 20+

0

48

Ariens 03448900

TAILBOARD

$

$

Not available

49

Ariens 01140700

HANDLEBAR STUD
(Superseded to 06529600)

Note: (05,06)

$1.49

$

In Stock, Qty 20+

0

Ariens 05900300

BLT-HEX .31-18X1.00 PL GR 2
(Superseded to 05946900)

Note: (07,08)

$1.49

$

In Stock, Qty 20+

0

50

Ariens 06506000

NUT-LK-JAM-CTR .375-16 PL
(Superseded to 06537200)

Note: (05,06)

$0.99

$

In Stock, Qty 20+

0

51

Ariens 06917700

J-CLIP

Note: (05,06)

$

$

Not available

52

Ariens 07510700

WIRE CLIP

Note: (05,06)

$

$

Not available

53

Ariens 07008600

SCR-CAP BTHD.31-18X.875 GR5 PK

$

$

Not available

54

Ariens 05915100

BLT-HEX .38-16X1.50 PL GR5
(Superseded to 05957900)

Note: (07,08)

$1.49

$

In Stock, Qty 14

0

55

Ariens 03459500

REAR HANGER

Note: (07,08)

$

$

Not available

56

Ariens 06512200

NUT-LK TOP .375-16 GR C YWZC

Note: (07,08)

$2.49

$

Usually ships in 4-12 days

0

57

Ariens 02902400

SPRING WASHER

Note: (07,08)

$18.99

$

Usually ships in 4-12 days

0

58

Ariens 03055400

LATCH RH

Note: (07,08)

$

$

Not available

Ariens 03055500

LATCH LH

Note: (07,08)

$62.99

$

Usually ships in 4-12 days

0

59

Ariens 03459700

SPACER .400X.625X.400X.875

Note: (07,08)

$

$

Not available

60

Ariens 03460000

LOCK STOP

Note: (07,08)

$

$

Not available

61

Ariens 05900300

BLT-HEX .31-18X1.00 PL GR 2
(Superseded to 05946900)

$1.49

$

In Stock, Qty 20+

0

62

Ariens 06425200

WSHR-FL-STL .343X1.370X.145 PL

Note: (07,08)

$

$

Not available

63

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

Note: (07,08)

$0.99

$

In Stock, Qty 10

0
