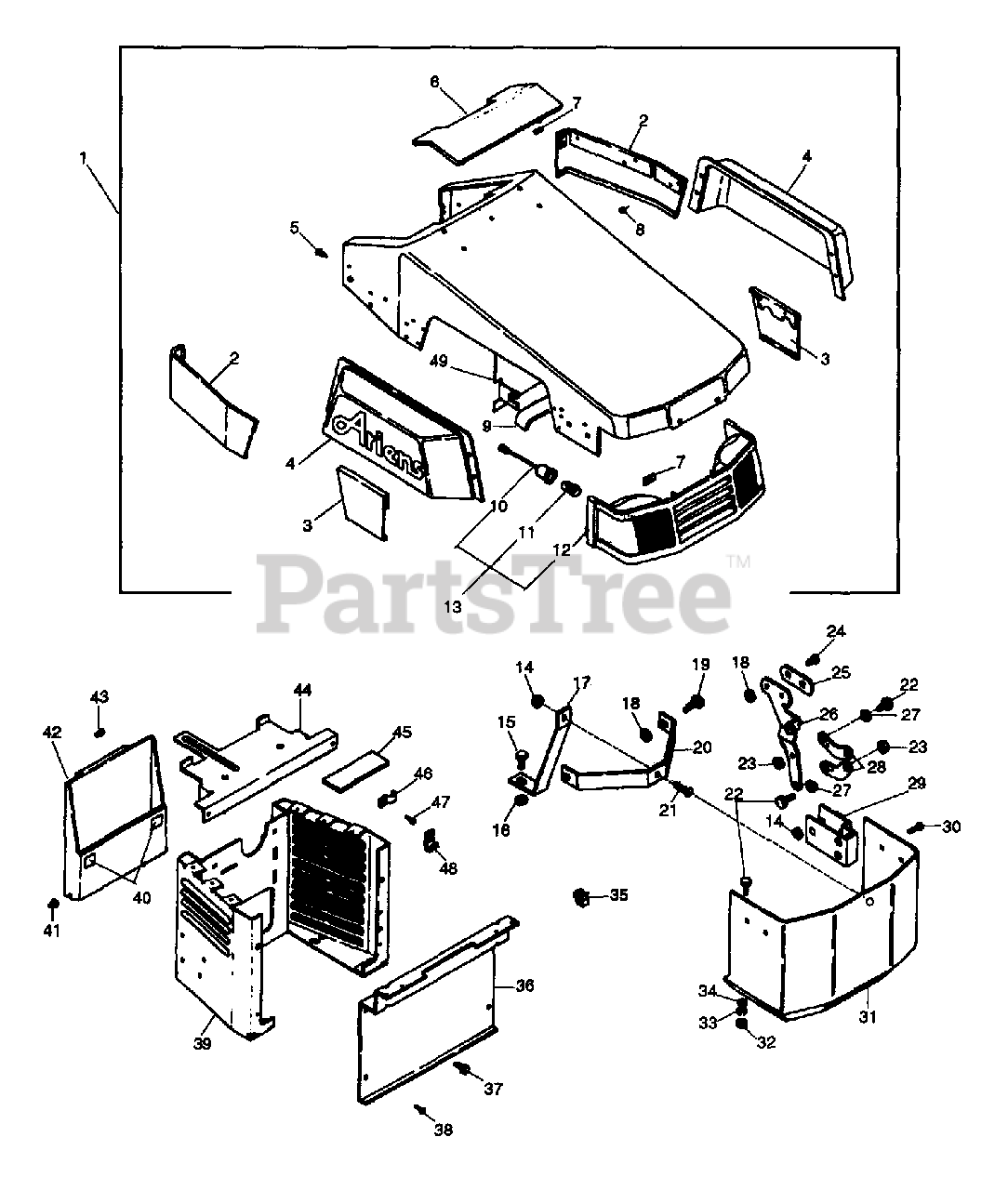

934005 - Ariens High Sierra Garden Tractor, 16hp Kohler, Hydro (SN: 000101 & Above) Hood And Console Parts Diagram

High Sierra Garden Tractor, 16hp Kohler, Hydro

Hood And Console Parts Diagram

  • Title

1

Ariens 53402900

HOOD ASSEMBLY

Note: (05,06)

$

$

Not available

1

Ariens 53405000

HOOD ASSEMBLY 14TW

Note: (08)

$

$

Not available

1

Ariens 53405100

HOOD ASSEMBLY 14S

Note: (07)

$

$

Not available

2

Ariens 03417400

REAR HOOD MOLDING R H

$

$

Not available

2

Ariens 03417500

REAR HOOD MOLDING L H

$

$

Not available

3

Ariens 03417200

FRONT HOOD MOLDING R H

$

$

Not available

3

Ariens 03417300

FRONT HOOD MOLDING L H

Note: (05,06,08)

$

$

Not available

3

Ariens 03470600

L H FRONT MOLDING

Note: (07)

$

$

Not available

4

Ariens 03425000

ENGINE SHROUD

Note: (05,06)

$

$

Not available

4

Ariens 03479800

ENGINE SHROUD

Note: (07,08)

$

$

Not available

4

Ariens 03479700

ENGINE SHROUD LH

Note: (07)

$

$

Not available

5

Ariens 07511900

BUMPER

$

$

Not available

6

Ariens 03417700

HAND HOLD TRIM

$

$

Not available

7

Ariens 07008000

NUT-SELF-THRDNG FITS.25 STUDPL

$2.99

$

In Stock, only 1 left!

0

8

Ariens 06806600

RVT-BRIV .153 X .179 DOME AL
(Superseded to 06812500)

$

$

Not available

9

Ariens 03441900

FOAM TAPE

$

$

Not available

10

Ariens 03419700

SOCKET & HARNESS
(Superseded to 03335600)

$

$

Not available

11

Ariens 03420500

HEADLIGHT BULB, 1156

$30.99

$

In Stock, only 1 left!

0

12

Ariens 03419800

GRILL & LENS ASSEMBLY
(Superseded to 03335600)

$

$

Not available

13

Ariens 03417100

HEAD LIGHT SYSTEM
(Superseded to 03335600)

Note: (05,06)

$

$

Not available

14

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

Note: (05,06)

$0.99

$

In Stock, Qty 20+

0

15

Ariens 06207800

BLT-RDHDSQNK .375-16X.75 GR5PL
(Superseded to 06223900)

Note: (05,06)

$1.49

$

In Stock, only 4 left!

0

16

Ariens 06508000

NUT-LK-FLG .375-16 PL

Note: (934005, 006)

$3.99

$

Usually ships in 4-12 days

0

17

Ariens 03446400

BRACE

$

$

Not available

18

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 06203300

BLT-RDHDSQNK .312-18X.62SHTPL
(Superseded to 06212200)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 03446300

BRACE

Note: (05,06)

$

$

Not available

20

Ariens 03471000

BRACE

Note: (07,08)

$

$

Not available

21

Ariens 06204200

BLT-RDHDSQNK .25-20X.75 GR5PL
(Superseded to 06219900)

$0.99

$

In Stock, Qty 18

0

22

Ariens 05902200

BLT-HEX .31-18X.75 PL GR2
(Superseded to 05947000)

$1.49

$

In Stock, Qty 20+

0

23

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

24

Ariens 06201100

BLT-RDHDSQNK .31-18X.75 GR5 PL
(Superseded to 06215700)

$2.49

$

In Stock, Qty 20+

0

25

Ariens 03417900

SPACER STRAP

$

$

Not available

26

Ariens 03414800

HINGE ARM R H

Note: (05,06,08)

$

$

Not available

26

Ariens 03414900

HINGE ARM L H

Note: (05,06,08)

$5.99

$

Usually ships in 4-12 days

0

26

Ariens 03471200

ARM L H

Note: (07)

$

$

Not available

26

Ariens 03471100

ARM R H

Note: (07)

$

$

Not available

27

Ariens 01305900

BSHG, FLG .325X.499X.26X.88

$2.49

$

In Stock, only 1 left!

0

28

Ariens 03414700

HINGE

$

$

Not available

29

Ariens 03414600

HINGE BRACKET

Note: (05,06)

$

$

Not available

29

Ariens 03470900

HINGE BRACKET

Note: (07,08)

$

$

Not available

30

Ariens 06205300

BLT-RDHDSQNK .25-20X.50 SHT PL
(Superseded to 06220600)

$0.99

$

In Stock, Qty 20+

0

31

Ariens 03445400

GRILL

Note: (05,06)

$

$

Not available

31

Ariens 03470800

GRILL

Note: (07)

$

$

Not available

31

Ariens 03471600

GRILL 14T

Note: (08)

$

$

Not available

32

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

33

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

34

Ariens 06405700

WSHR-FL-STL .323X.625X.062 PL
(Superseded to 06436700)

$1.49

$

In Stock, only 2 left!

0

35

Ariens 07008400

CLIP-HARNESS TINNERMAN

$

$

Not available

36

Ariens 03458300

BULKHEAD

Note: (05,06,08)

$

$

Not available

37

Ariens 07401400

SCR-TAP .312-18X.50 HWH PL TR
(Superseded to 07411500)

Note: (05,06,08)

$1.49

$

In Stock, Qty 20+

0

38

Ariens 07404300

SCR-TAP 10-16X.50 HWH PL AB

$

$

Not available

39

Ariens 03454000

DASH TOWER

$

$

Not available

40

Ariens 03418400

CATCH ASSEMBLY

$

$

Not available

41

Ariens 07507600

PLASTIC GROMMET

$0.99

$

In Stock, Qty 10

0

42

Ariens 03412800

NOTE BOX

$

$

Not available

43

Ariens 07400100

SCR-TAP 10-12X.50 CRPH PL A

$

$

Not available

44

Ariens 03454200

BATTERY SUPPORT

$

$

Not available

45

Ariens 03558200

FOAM TAPE

$

$

Not available

46

Ariens 03457300

CLAMP

$

$

Not available

47

Ariens 07403100

SCR-TAP 6-20X.50 CR 1A

$

$

Not available

48

Ariens 06917700

J-CLIP

$

$

Not available

49

Ariens 03474500

HOOD BAFFLE 14 HP

Note: (07,08)

$

$

Not available
